SEEPEX Progressive Cavity Pump, SS, 1/5 HP, 115VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Progressive Cavity Metering Pump, Min. RPM 25, Max. RPM 600, Required HP @ Lower RPM 1/2, Required HP @ Higher RPM 1/2, Voltage 115VAC, 60 Hz, Max. Viscosity 40, 000 cPs, Max. Pressure 180 PSI, Flow Rate @ Max RPM and 0 PSI 0.9667gpm, Flow Rate @ Max RPM and 90 PSI 0.9624 gpm, Flow Rate @ Max RPM and 180 PSI 0.9316gpm, Max. Fluid Temp. 132 Degrees F, Inlet/Outlet (In.) 1-1/2 NPT, Seal Type Lip, Seal Material PTFE/Ceramic/FPM, Stainless Steel Housing Material, Includes Variable Speed VFD

Grainger Item #	15V240
Price (ea.)	$3,472.00
Brand	SEEPEX
Mfr. Model #	MDP 012-12
UNSPSC #	40151553
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	58.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	4088
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

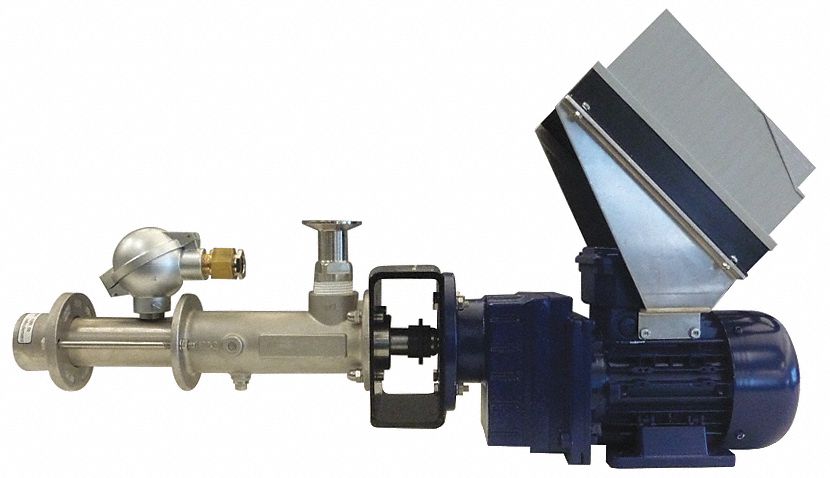

Progressive Cavity Pump, SS, 1/5 HP, 115VAC

Enlarge Image

Item		Progressive Cavity Metering Pump
Min. RPM		25
Max. RPM		600
Required HP @ Lower RPM		1/2
Required HP @ Higher RPM		1/2
Voltage		115VAC
Hz		60
Max. Viscosity		40,000 cPs
Particle Size		4.3mm
Min. Pressure (PSI)		0
Max. Pressure (PSI)		180
Flow Rate @ Min. RPM and 0 PSI		0.0403 gpm
Flow Rate @ Max. RPM and 0 PSI		0.9667 gpm
Flow Rate @ Min. RPM and 90 PSI		0.036 gpm
Flow Rate @ Max. RPM and 90 PSI		0.9624 gpm
Flow Rate @ Min. RPM and 180 PSI		0.0071 gpm
Flow Rate @ Max. RPM and 180 PSI		0.9316 gpm
Min. Fluid Temp.		32 Degrees F
Max. Fluid Temp.		132 Degrees F
Inlet/Outlet (In.)		1-1/2 NPT
Seal Type		Lip
Seal Material		PTFE/Ceramic/FPM
Housing Material		Stainless Steel
Length (In.)		27-11/16
Width (In.)		7-7/16
Height (In.)		11-7/32
Series		MDP
Application		Metering
Includes		Variable Speed VFD
