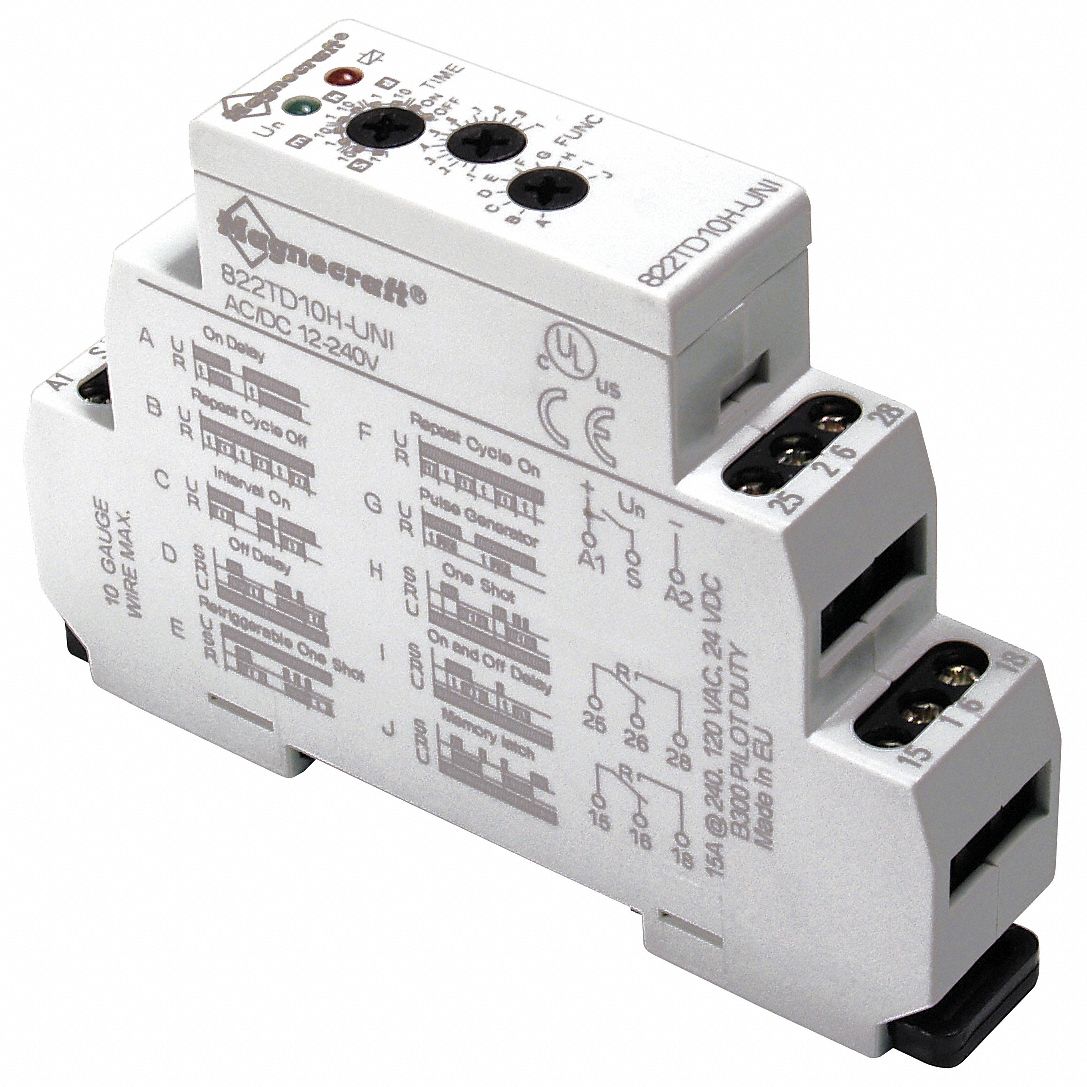

SCHNEIDER ELECTRIC Relay, Time Delay, DPDT, Multifunction

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Relay, Time Delay, Contact Form DPDT, Base Type DIN Mount, Number of Contacts 2, Function Multifunction, Contact Amp Rating (Resistive) 15, Contact Material Silver Alloy, HP @ 120V 1/2, HP @ 240V 1, Coil Volts 12-240VAC/DC, Coil VA Rating 3, Hz 50/60, Min. Time Setting (Sec.) 0.1, Max. Time Range (Sec.) 10, Max. Time Setting (Min.) 10, Max. Time Setting (Hours) 10, Display LED, Operating Functions See Chart, Standards cULus, CE

Grainger Item #	6CWT7
Price (ea.)	$101.80
Brand	SCHNEIDER ELECTRIC
Mfr. Model #	822TD10H-UNI
UNSPSC #	39121519
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.2
Availability	Typically in Stock
Catalog Page No.	359
Country of Origin (Country of Origin is subject to change.)	Czech Republic

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Time Delay Relay
Type		Time Delay
Contact Form		DPDT
Base Type		DIN Mount
Number of Contacts		2
Function		On Delay, Off Delay, Interval, Repeat Cycle, Retriggerable 1 Shot, Pulse Generator, On/Off Delay, Memory Hold
Contact Amp Rating (Resistive)		15
Contact Material		Silver Alloy
HP @ 120V		1/2
HP @ 240V		1
Coil Volts		12-240VAC/DC
Coil VA Rating		3
Hz		50/60
Min. Time Setting		0.1 sec.
Max. Time Setting		10 hrs.
Display		LED
Standards		cULus, CE
