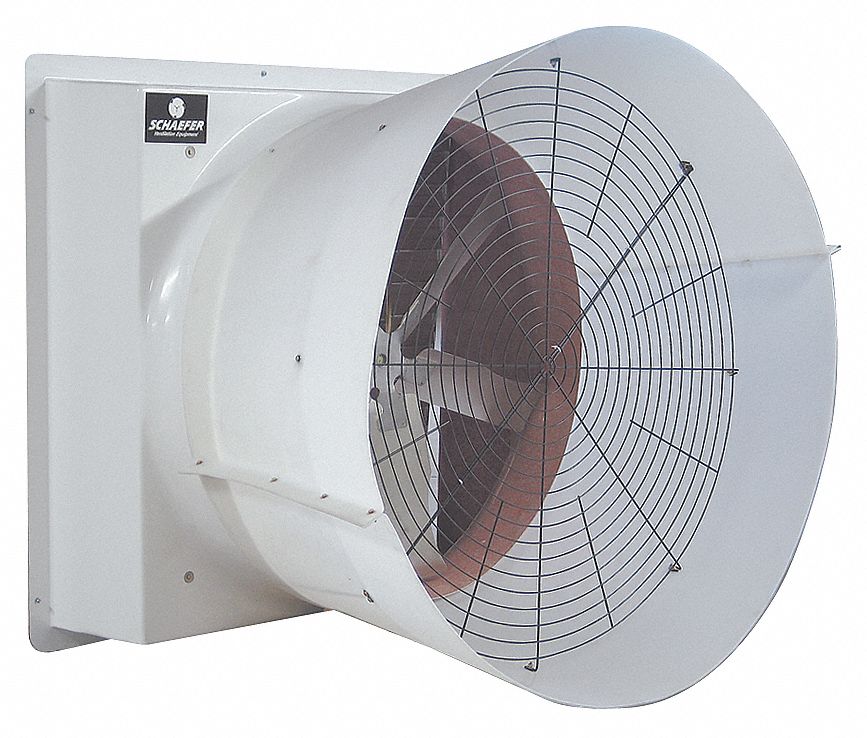

SCHAEFER Exh Fan, B/D, 54 Dia, CFM 25, 071, 208-230 V

Agricultural Exhaust Fan, High Efficiency, Belt Drive Cone, 2 Speed, Propeller Dia. (In.) 52, CFM @ 0.000-In. SP 25, 071/16, 569, Fan RPM 460, Voltage 208-230, 60 Hz, 1 Phase, Full Load Amps 6.0-6.1, Watts 746, HP 1, Motor RPM 1725/1140, Motor Type Capacitor Start, Capacitor Run, Motor Enclosure Totally Enclosed Air Over, Motor Insulation Class B, Height (In.) 58-1/4, Width (In.) 58, Max. Depth (In.) 54.5, Opening Required H (In.) 59-1/4, Opening Required W (In.) 59-1/4
  • Grainger Item #5AFG2
    Price (ea.)$3,493.00
    BrandSCHAEFER
    Mfr. Model #G526CF1-2
    UNSPSC #40101502
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)325.0
    Availability Item ships within 4 business days from supplier
    Catalog Page No.4462
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
ItemAgricultural Exhaust Fan
TypeHigh Efficiency, Belt Drive Cone, 2 Speed
Propeller Dia. (In.)52
CFM @ 0.000-In. SP25,071/16,569
CFM @ 0.050-In. SP23,652/15,631
CFM @ 0.100-In. SP22,469/14,849
CFM @ 0.150-In. SP20,814/13,755
Fan RPM460
Voltage208-230
Hz60
Phase1
Full Load Amps6.0/6.1
Watts746
HP1
Motor RPM1725/1140
Motor TypeCapacitor Start, Capacitor Run
Motor EnclosureTotally Enclosed Air Over
Motor InsulationClass B
Height (In.)58-1/4
Width (In.)58
Max. Depth (In.)54.5
Opening Required H (In.)59-1/4
Opening Required W (In.)59-1/4
Flange Width (In.)2-3/4
Venturi Clearance Dia. (In.)52-3/4
Venturi Depth (In.)10-1/2
Cone Dia. (In.)65
Cone Depth (In.)23.5
Mounting LocationWall
Max. Ambient Temp. (F)104
Shaft Dia. (In.)5/8
Bearing TypePermanently Lubricated Ball
Number of Blades5
Propeller MaterialGalvanized Steel
Frame MaterialFiberglass
Frame FinishPolished White Fiberglass
Free Area (Square-Ft.)23.77
Agency ComplianceUL Listed Motor
For Use WithGeneral Exhaust Application
IncludesAluminum Shutter, Polyethylene Cone and Belt Tensioner
