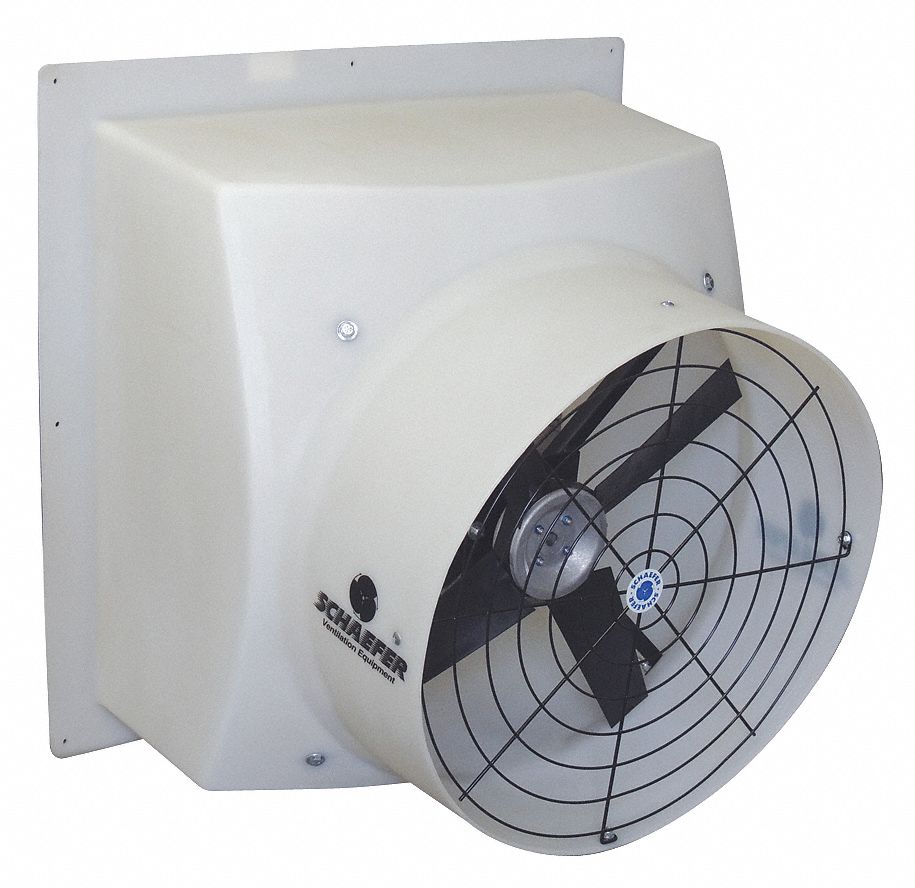

SCHAEFER Exh Fan, B/D, 36 Dia, CFM 10, 080, 115/230 V

Agricultural Exhaust Fan, Belt Drive, Assembled, Propeller Dia 36 In, CFM @ 0.000-In SP 10, 080, CFM/Watt @ 0.000-In SP 19.2, Fan RPM 730, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 4.6/2.3, HP 1/2, Height 43 1/8 In, Width 42 3/4 In, Max. Depth 25 1/4 In, Max Ambient Temp 104 F, Frame Material Fiberglass, Free Area (Square-Ft) 12.84, For Use With General Exhaust Application, Includes Aluminum shutter and Belt Tensioner
  • Grainger Item #5AFE0
    Price (ea.)$2,483.00
    BrandSCHAEFER
    Mfr. Model #GFMN3600-1G
    UNSPSC #40101502
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)205.0
    Availability Item ships within 4 business days from supplier
    Catalog Page No.4462
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
ItemAgricultural Exhaust Fan
TypeBelt Drive, Assembled
Propeller Dia. (In.)36
CFM @ 0.000-In. SP10,080
CFM @ 0.050-In. SP9320
CFM @ 0.100-In. SP8380
CFM @ 0.150-In. SP6910
CFM/Watt @ 0.000-In. SP19.2
CFM/Watt @ 0.050-In. SP17.2
CFM/Watt @ 0.100-In. SP15.3
CFM/Watt @ 0.150-In. SP12.5
Fan RPM730
Voltage115/230
Hz60
Phase1
Full Load Amps4.6/2.3
Watts373
HP1/2
Motor RPM1725
Motor TypeCapacitor Start, Capacitor Run
Motor EnclosureTotally Enclosed Air Over
Motor InsulationClass B
Height (In.)43-1/8
Width (In.)42-3/4
Max. Depth (In.)25-1/4
Opening Required H (In.)43-3/4
Opening Required W (In.)43-1/2
Flange Width (In.)2-1/4
Venturi Clearance Dia. (In.)37
Venturi Depth (In.)10
Mounting LocationWall
Max. Ambient Temp. (F)104
Shaft Dia. (In.)5/8
Bearing TypePermanently Lubricated Ball
Number of Blades3
Propeller MaterialGalvanized Steel
Frame MaterialFiberglass
Frame FinishPolished Tan Fiberglass
Free Area (Square-Ft.)12.84
Agency ComplianceUL Listed Motor
For Use WithGeneral Exhaust Application
IncludesAluminum Shutter and Belt Tensioner
