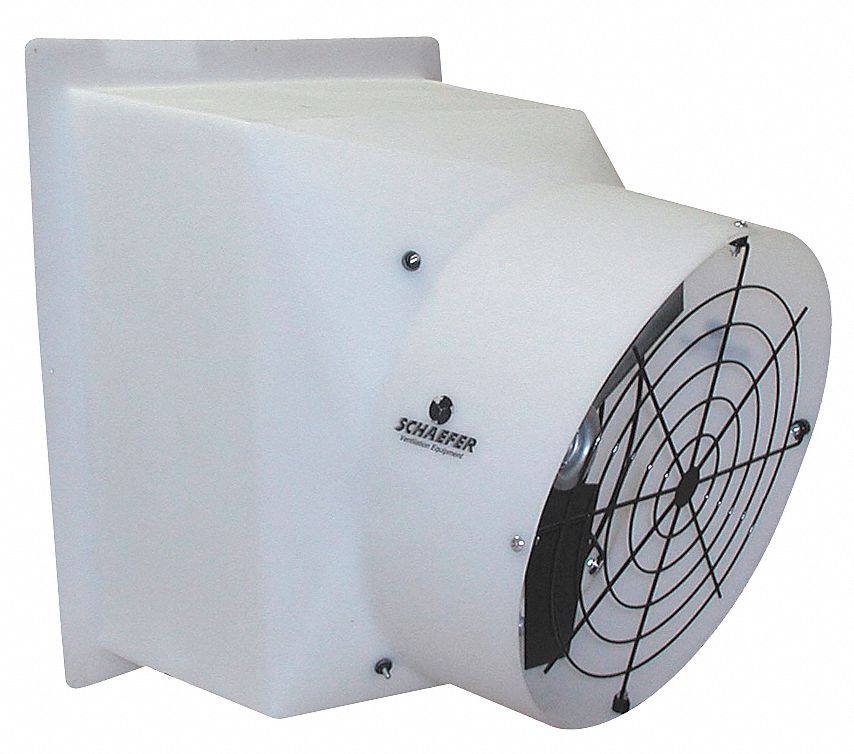

SCHAEFER Exh Fan, D/D, 20 Dia, CFM 5143, 115/230 V

Agricultural Exhaust Fan, Direct Drive, Preassembled, Adjustable Speed, Propeller Dia 20 In, CFM @ 0.000-In SP 5143, CFM/Watt @ 0.000-In SP 8.4, Fan RPM 1725, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 4.8/2.4, HP 1/2, Height 23 1/4 In, Width 23 5/8 In, Max. Depth 23-3/8 In, Max Ambient Temp 104 F, Frame Material Polyethylene, Free Area (Square-Ft) 3.75, For Use With General Exhaust Application, Includes PVC Shutter
  • Grainger Item #5AFD4
    Price (ea.)$889.00
    BrandSCHAEFER
    Mfr. Model #GPFM20HC-1
    UNSPSC #40101502
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)57.0
    Availability Item ships within 4 business days from supplier
    Catalog Page No.4462
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
ItemAgricultural Exhaust Fan
TypeDirect Drive, Preassembled, Adjustable Speed
Propeller Dia. (In.)20
CFM @ 0.000-In. SP5143
CFM @ 0.050-In. SP4966
CFM @ 0.100-In. SP4782
CFM @ 0.150-In. SP4571
CFM/Watt @ 0.000-In. SP8.4
CFM/Watt @ 0.050-In. SP8.2
CFM/Watt @ 0.100-In. SP7.7
CFM/Watt @ 0.150-In. SP7.4
Fan RPM1725
Voltage115/230
Hz60
Phase1
Full Load Amps4.8/2.4
Watts373
HP1/2
Motor RPM1725
Motor TypePermanent Split Capacitor
Motor EnclosureTotally Enclosed Air Over
Motor InsulationClass F
Height (In.)23-1/4
Width (In.)23-5/8
Max. Depth (In.)23-3/8
Opening Required H (In.)24-3/4
Opening Required W (In.)23-1/2
Flange Width (In.)2-1/4
Venturi Clearance Dia. (In.)21
Mounting LocationWall
Max. Ambient Temp. (F)104
Shaft Dia. (In.)5/8
Bearing TypePermanently Lubricated Ball
Number of Blades4
Propeller MaterialPolypropylene
Frame MaterialPolyethylene
Frame FinishPolished White Polypethylene
Free Area (Square-Ft.)3.75
Agency ComplianceUL Listed Motor
For Use WithGeneral Exhaust Application
IncludesPVC Shutter

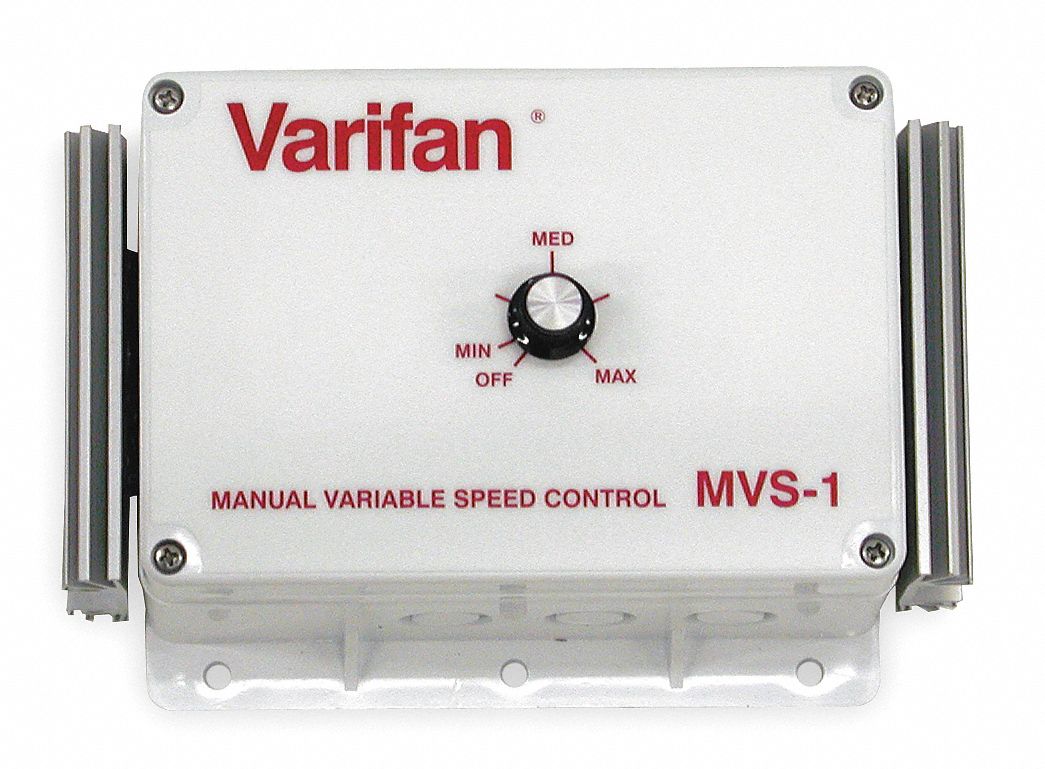

Optional Accessories

More Accessories

Brand:

MULTIFAN

Grainger Item #:

1DGZ5

Price (ea.):

$438.25
