Machining
>
Milling Tools
>
Indexable End Mills

SANDVIK COROMANT Sq Shoulder Mill 90Deg, RA390-032M32-11H

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Square Shoulder Mill 90 Degrees , CoroMill 390, Cutting Dia. 1.250, Shank Dia. 1.250, Coupling Size 1 1/4, Depth of Cut 0.394, Overall Length 3.750, Shank Shape Weldon, Neck Length Max 1.350, Number of Inserts Required 5, Cutting Direction Right, Pitch Extra Close, Insert Size 11, Slot Depth 0.732, Cutting Angle 90 Degrees , Insert Screw 5513020-35, Key 5680046-01, ANSI Number RA390-032M32-11H

Grainger Item #	4JCL1
Price (ea.)	$506.50
Brand	SANDVIK COROMANT
Mfr. Model #	RA390-032M32-11H
UNSPSC #	23172013
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.235
Availability	Item ships within 2 business days from supplier
Catalog Page No.	3632
Country of Origin (Country of Origin is subject to change.)	Not Available
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

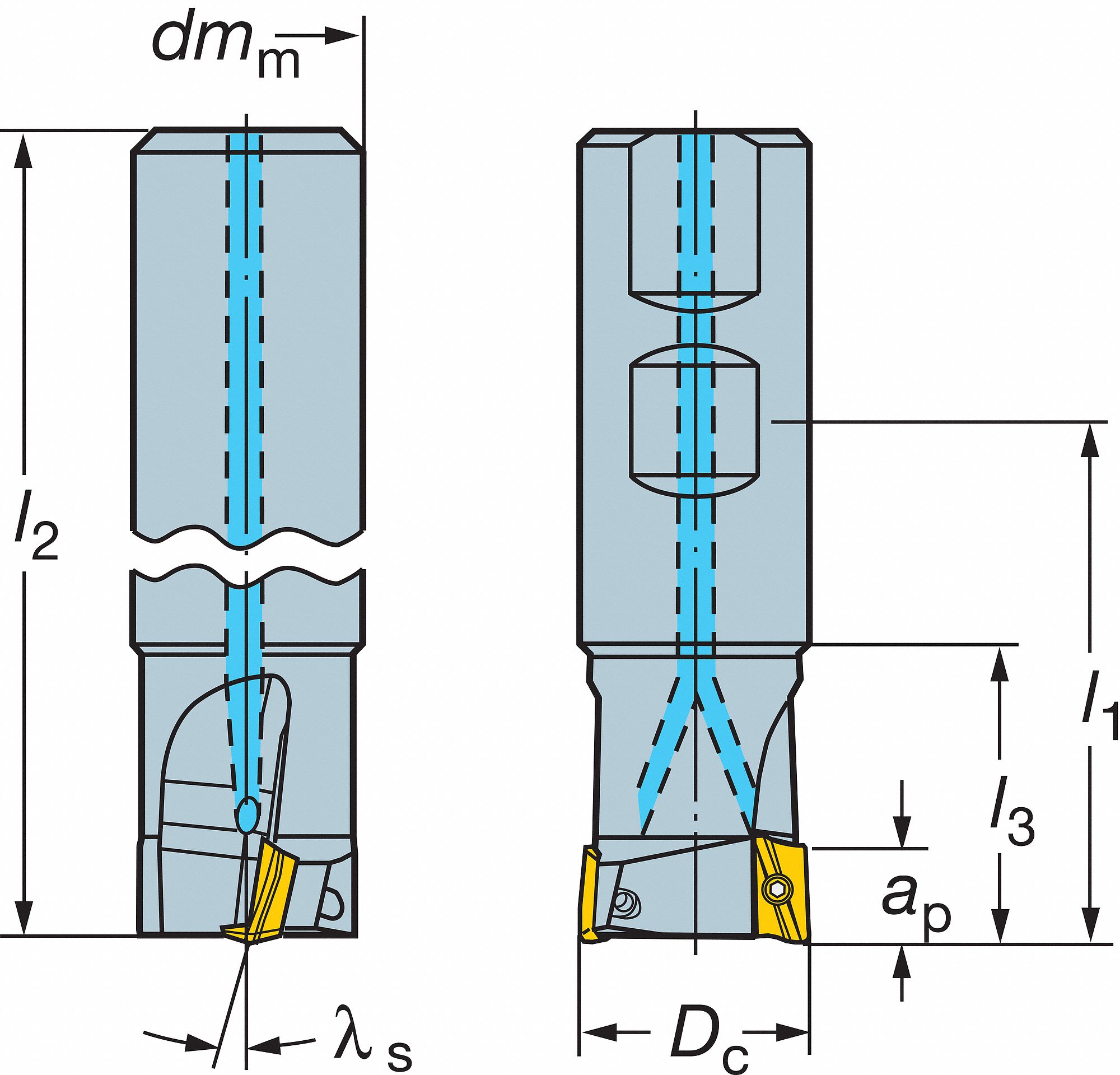

Sq Shoulder Mill 90Deg, RA390-032M32-11H

Enlarge Image

Item		Square Shoulder Mill
Series		CoroMill 390
Cutting Angle		90 Degrees
Cutting Dia.		1.250"
Shank Dia.		1.250"
Coupling Size		1 1/4"
Depth of Cut		0.394"
Overall Length		6.000"
Shank Shape		Weldon
Neck Length		1.350"
Number of Inserts Required		5
Cutting Direction		Right Hand
Pitch		Extra Close
Insert Size		11mm
Insert Screw		5513020-35
Key		5680046-01
ANSI Number		RA390-032M32-11H
For Use With		R390-11 T3 08E-ML,R390-11 T3 08E-NL,R390-11 T3 08E-PL,R390-11 T3 08M-KL,R390-11 T3 08M-KM,R390-11 T3 08M-MM,R390-11 T3 08M-PL,R390-11 T3 08M-PM,R390-11 T3 12E-PM,R390-11 T3 16E-PM,R390-11 T3 16M-PM,R390-11 T3 20E-PM,R390-11 T3 31E-PM,R390-11 T3 31M-PM

This item has been restricted from sale in the following countries:
Andorra, United Arab Emirates, Afghanistan, Antigua and Barbuda, Anguilla, Albania, Armenia, Angola, Antarctica, Argentina, Austria, Australia, Aruba, Azerbaijan, Bosnia and Herzegovina, Bangladesh, Belgium, Burkina-Faso, Bulgaria, Bahrain, Burundi, Benin, Bermuda, Brunei Darussalam, BES Islands, Brazil, Bhutan, Bouvet Islands, Botswana, Not Available, Canada, Cocos Islands, Not Available, Central African Republic, Congo, Switzerland, Not Available, Cook Islands, Chile, Cameroon, China, Not Available, Cape Verde, Curacao, Christmas Island, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Dominica, Algeria, Estonia, Egypt, Western Sahara, Eritrea, Spain, Ethiopia, Finland, Fiji, Falkland Islands, Federated States of Micronesia, Faroe Islands, France, Gabon, United Kingdom, Grenada, Georgia, French Guiana, Guernsey, Ghana, Gibraltar, Greenland, Gambia, Guinea, Guadeloupe, Equatorial Guinea, Greece, South Georgia and the Southern Sandwich Islands, Guinea-Bissau, Hong Kong, Heard and McDonald Islands, Croatia, Hungary, Indonesia, Ireland, Israel, Isle of Man, India, British Indian Ocean Territory, Iraq, Not Available, Iceland, Italy, Jersey, Jordan, Japan, Kenya, Kirghizia, Cambodia, Kiribati, Comoros, St. Kitts and Nevis, Not Available, South Korea, Kuwait, Cayman Islands, Kazakhstan, Laos, Lebanon, St. Lucia, Liechtenstein, Sri Lanka, Liberia, Lesotho, Lithuania, Luxembourg, Latvia, Libya, Morocco, Monaco, Moldavia, Republic of Montenegro, Not Available, Madagascar, Republic of the Marshall Islands, Macedonia, Mali, Myanmar, Mongolia, Macau, Northern Mariana Islands, Martinique, Mauritania, Montserrat, Malta, Mauritius, Maldives, Malawi, Mexico, Malaysia, Mozambique, Namibia, New Caledonia, Niger, Norfolk Islands, Nigeria, Netherlands, Norway, Nepal, Nauru, Niue Islands, New Zealand, Oman, French Polynesia, Papua New Guinea, Philippines, Pakistan, Poland, St. Pierre and Miquelon, Pitcairn Islands, Palestinian Territory, Portugal, Paraguay, Qatar, Reunion, Romania, Republic of Serbia, Russian Federation, Rwanda, Saudi Arabia, Solomon Islands, Seychelles, Not Available, Sweden, Singapore, St. Helena, Slovenia, Svalbard, Slovakia, Sierra Leone, San Marino, Senegal, Somalia, South Sudan, Sao Tome and Principe, Sint Maarten, Not Available, Swaziland, Turks and Caicos Islands, Chad, French Southern & Antarctic La, Togo, Thailand, Tajikistan, Tokelau Islands, Democratic Republic of Timor-Leste, Turkmenistan, Tunisia, Tonga, Turkey, Tuvalu, Taiwan, Tanzania, Ukraine, Uganda, American Minor Outlying Islands, Uruguay, Uzbekistan, Vatican City, St. Vincent and the Grenadines, British Virgin Islands, Vietnam, Vanuatu, Wallis and Futuna Islands, Western Samoa, Yemen, Mayotte, South Africa, Zambia, Not Available
California Proposition 65
Warning: This product contains a chemical known to the State of California to cause cancer.

See Catalog 404 Page

for application and/or safety information.
