Machining
>
Indexable Inserts
>
Turning Inserts

SANDVIK COROMANT Carbide Turning Insert, CNMG 432-PM 4225

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Carbide Turning Insert, 0 Degrees , 80 Degrees Diamond, Style CNMG, Insert Size 432, Chip-Breaker PM, Grade 4225, Application Medium, Workpiece Material Steel, Inscribed Circle 1/2 In, Insert Thickness 0.188 In, Nose Radius 0.032 In, Coating MTCVD, Cutting Direction Neutral, Mounting Hole Dia. 0.203 In, Mounting Style Top and Hole Clamping, Rake Negative, No. of Edges 4, ISO Number CNMG 12 04 08-PM 4225, ANSI Number CNMG 432-PM 4225. Only shipped in quantities of 10.

Grainger Item #	4MDH5
Price (ea.)	$16.37
Brand	SANDVIK COROMANT
Mfr. Model #	CNMG 432-PM 4225
UNSPSC #	23171618
Ship Qty.	10
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.02
Availability	Item ships within 2 business days from supplier
Catalog Page No.	3603
Country of Origin (Country of Origin is subject to change.)	Not Available
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

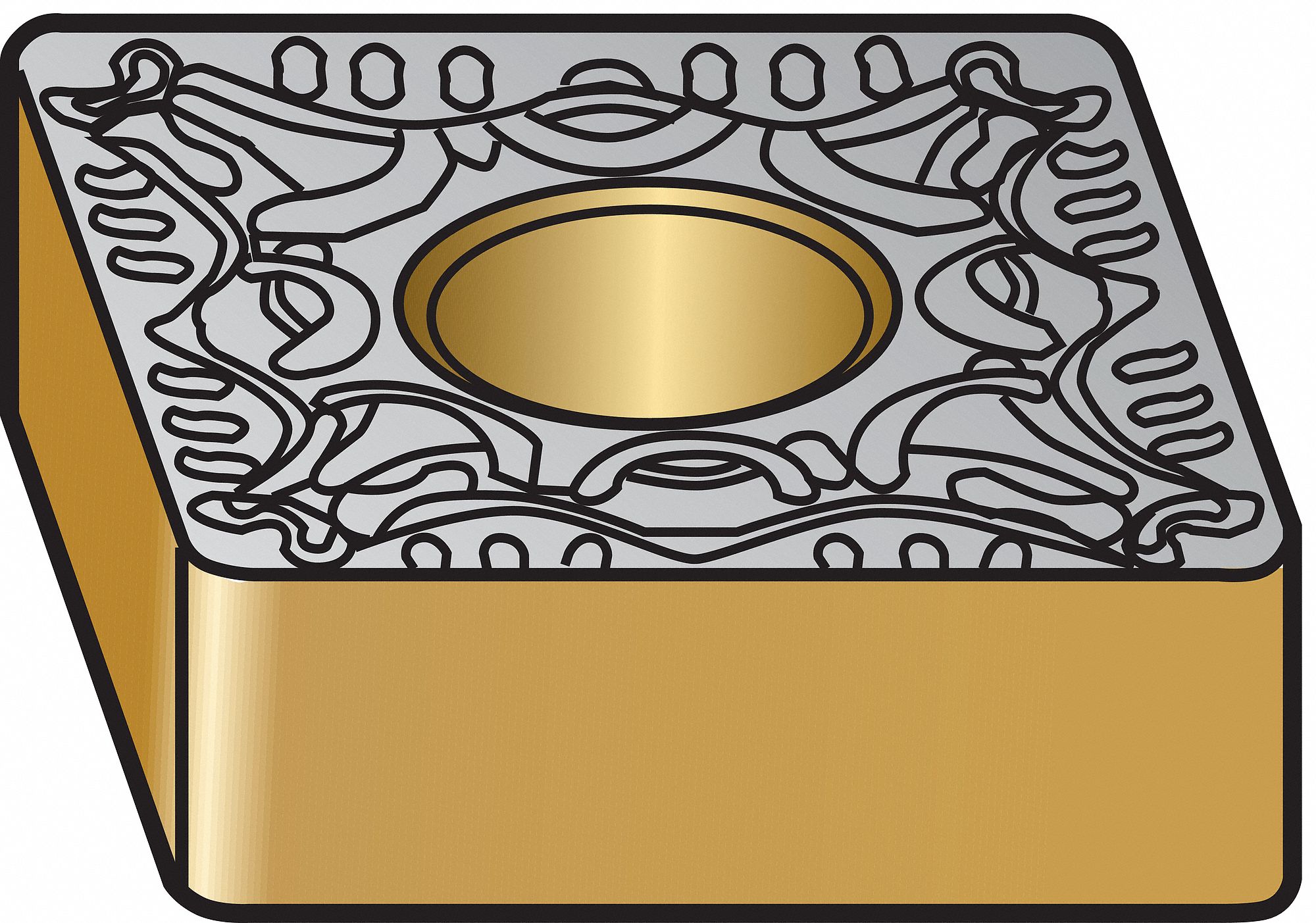

Carbide Turning Insert, CNMG 432-PM 4225

Enlarge Image

Item		Carbide Turning Insert
Relief Angle		0 Degrees Double Sided
Insert Shape		80 Degrees Diamond
Style		CNMG
Insert Size		432
Chip-Breaker		PM
Grade		4225
Application		Medium
Workpiece Material		Steel
Inscribed Circle		1/2"
Insert Thickness		0.1875"
Nose Radius		0.0315"
Coating		MTCVD
Cutting Direction		Neutral
Mounting Hole Dia.		0.203"
Mounting Style		Top and Hole Clamping
Rake		Negative
No. of Edges		4
ISO Number		CNMG 12 04 08-PM 4225
ANSI Number		CNMG 432-PM 4225
For Use With		DCLNL 10 4A, DCLNL 12 4B, DCLNL 16 4C, DCLNL 16 4D, DCLNL 20 4D, DCLNR 10 4A, DCLNR 12 4B, DCLNR 16 4C, DCLNR 16 4D, DCLNR 20 4D, A16T-DCLNL 4, A16T-DCLNR 4, A20T-DCLNL 4, A20T-DCLNR 4, A24T-DCLNL 4, A24T-DCLNR 4
