SANDVIK COROMANT CBN Turning Insert, CNGA431S0330A 7025

| Write a Review
| Read all Reviews
| Read all Ask & Answer

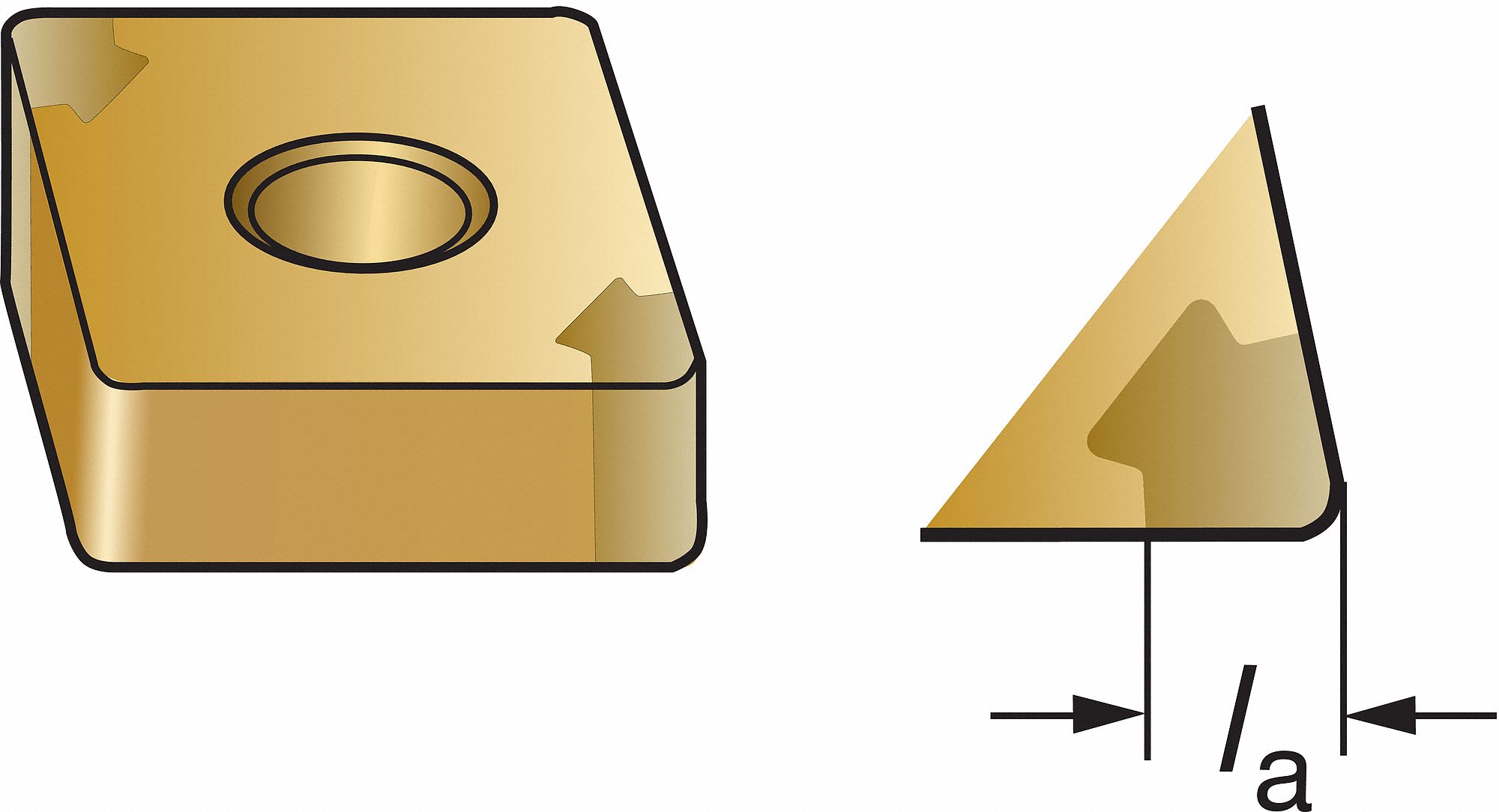

CBN Turning Insert, 80 Degrees Diamond, Style CNGA, Insert Size 431, Chip-Breaker S Land .003 by 30 Degrees , Grade CB7025, Application Finishing, Hardened Materials, Inscribed Circle 1/2 In, Insert Thickness 0.1875 In, Nose Radius 0.0157 In, Coating Uncoated, Neutral, Mounting Hole Dia. 0.203 In, Mounting Style Top and hole Clamping, Rake Negative, No. of Edges 4, ISO Number CNGA120404S01030A 7025, ANSI Number CNGA431S0330A 7025. Only shipped in quantities of 5.

Grainger Item #	5HRP9
Price (ea.)	$182.25
Brand	SANDVIK COROMANT
Mfr. Model #	CNGA431S0330A 7025
UNSPSC #	23171618
Ship Qty.	5
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.01
Availability	Item ships within 2 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Turning Insert
Insert Shape		Rhombic 80
Style		CNGA
Chip-Breaker		S6
Grade		CB7025
Coating		Uncoated
Mounting Style		Top and hole Clamping
Rake		Negative
For Use With		A20T-DCLNL 4,A20T-DCLNR 4,A24T-DCLNL 4,A24T-DCLNR 4,A16T-DCLNL 4,A16T-DCLNR 4,DCLNL 10 4A,DCLNL 12 4B,DCLNL 16 4C,DCLNL 16 4D,DCLNL 20 4D,DCLNR 10 4A,DCLNR 12 4B,DCLNR 16 4C,DCLNR 16 4D,DCLNR 20 4D,C4-DCLNL-17090-12,C4-DCLNL-27050-12,C4-DCLNR-17090-12,C4-DCLNR-27050-12,C4-DCRNR-22050-12,C4-PCLNL-17090-12,C4-PCLNL-22110-12,C4-PCLNL-27050-12HP,C4-PCLNL-27080-12,C4-PCLNR-17090-12,C4-PCLNR-22110-12,C4-PCLNR-27050-12,C4-PCLNR-27050-12HP,C4-PCLNR-27080-12,C4-PCLNR-27120-12,C5-DCLNL-35060-12,C5-DCLNR-35060-12,C5-DCRNL-27060-12,C5-PCLNL-17090-12,C5-PCLNL-22110-12,C5-PCLNL-27140-12,C5-PCLNL-35060-12,C5-PCLNL-35060-12HP,C5-PCLNR-17090-12,C5-PCLNR-22110-12,C5-PCLNR-27140-12,C5-PCLNR-35060-12,C5-PCLNR-35060-12HP,C5-PCLNR-35100-12,C6-DCLNL-45065-12,C6-DCLNR-17100-12,C6-DCLNR-45065-12,C6-DCMNN-00090-12,C6-DCMNN-00115-12,C6-PCLNL-22110-12,C6-PCLNL-45065-12,C6-PCLNR-17100-12,C6-PCLNR-22110-12,C6-PCLNR-45065-12HP,C6-PCMNN-00115-12HP,C6-T-DCL12DCL12L165,C6-T-DCM12DDM15L130,C8-DCLNL-55080-12,C8-DCLNR-55
