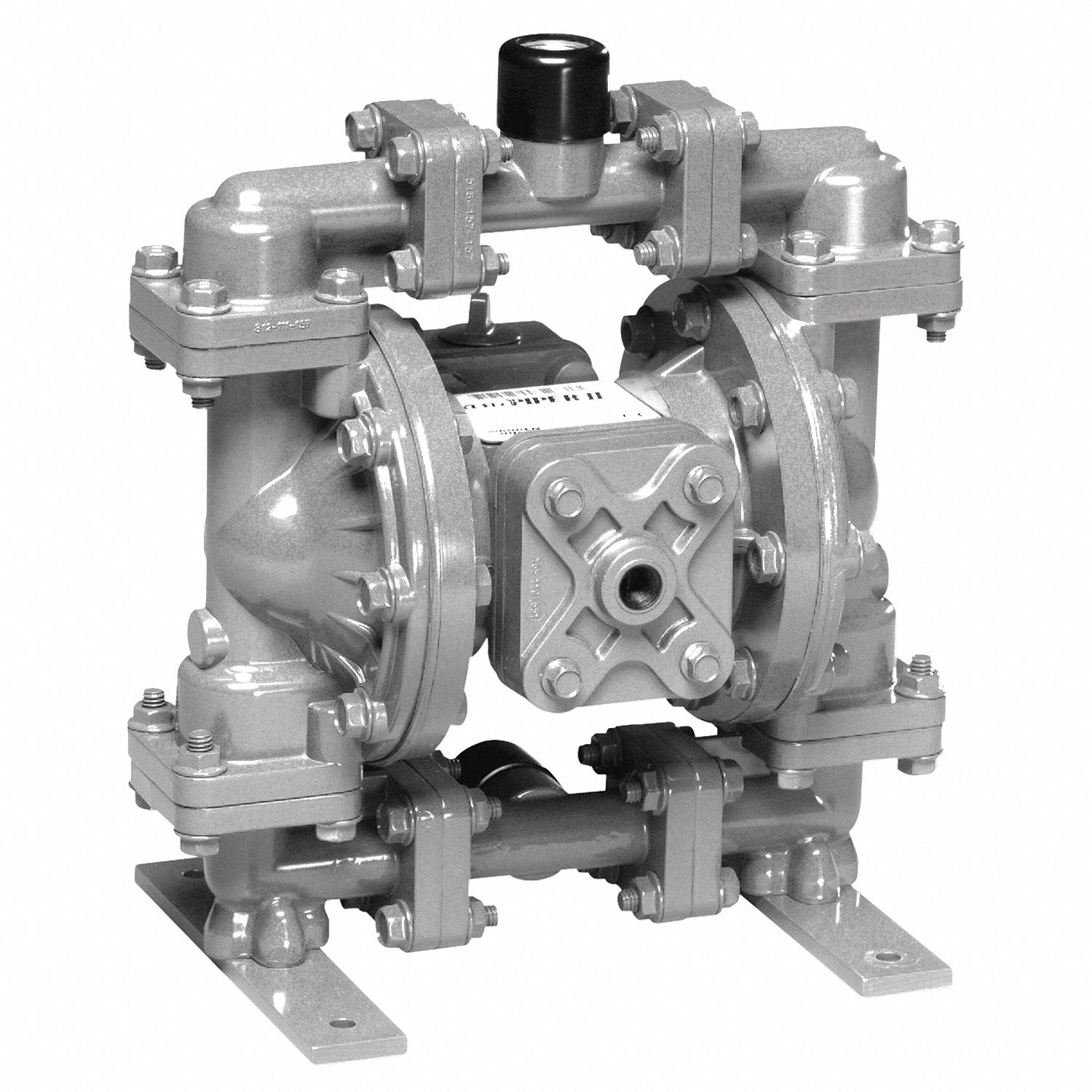

SANDPIPER Pump, 1/2 In, SS, Buna Diaphragm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Double Diaphragm Pump, Inlet/Outlet 1/2 In., Flow 15 gpm, Max. Flow GPM 15, Max. Flow 28 cfm, Max. Operating PSI 100, Body Material Stainless Steel, Diaphragm Material Buna, Ball Material Buna, Check Seat Material Aluminum, Air Inlet (F)NPT 1/4 In., Manifold Connection Single, Max. Dia. Solids 1/8 In., Max. Temp. 190 Degrees F, Self-Priming Dry 16 ft, Length 7-1/16 In., Width 10-1/4 In., Height 10-3/8 In., 5 Year

Grainger Item #	12W429
Price (ea.)	$1,844.00
Brand	SANDPIPER
Mfr. Model #	S05B1SBWANS000.
UNSPSC #	40151548
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	21.0
Availability	Item ships within 9 business days from supplier
Catalog Page No.	4133
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Air Operated Double Diaphragm Pump
Inlet/Outlet		1/2"
Flow		15 gpm
Max. Flow GPM		15
Max. Flow		28 cfm
Max. Operating PSI		100
Body Material		Stainless Steel
Diaphragm Material		Buna
Ball Material		Buna
Check Seat Material		Aluminum
Air Inlet (F)NPT		1/4"
Manifold Connection		Single
Max. Dia. Solids		1/8"
Max. Temp.		190 Degrees F
Self-Priming Dry		16 ft
Length		7-1/16"
Width		10-1/4"
Height		10-3/8"
Manufacturers Warranty Length		5 Year
For Use With		Intermittent/On-Demand, Moderately Abrasive Fluids, and Suspended Solids
