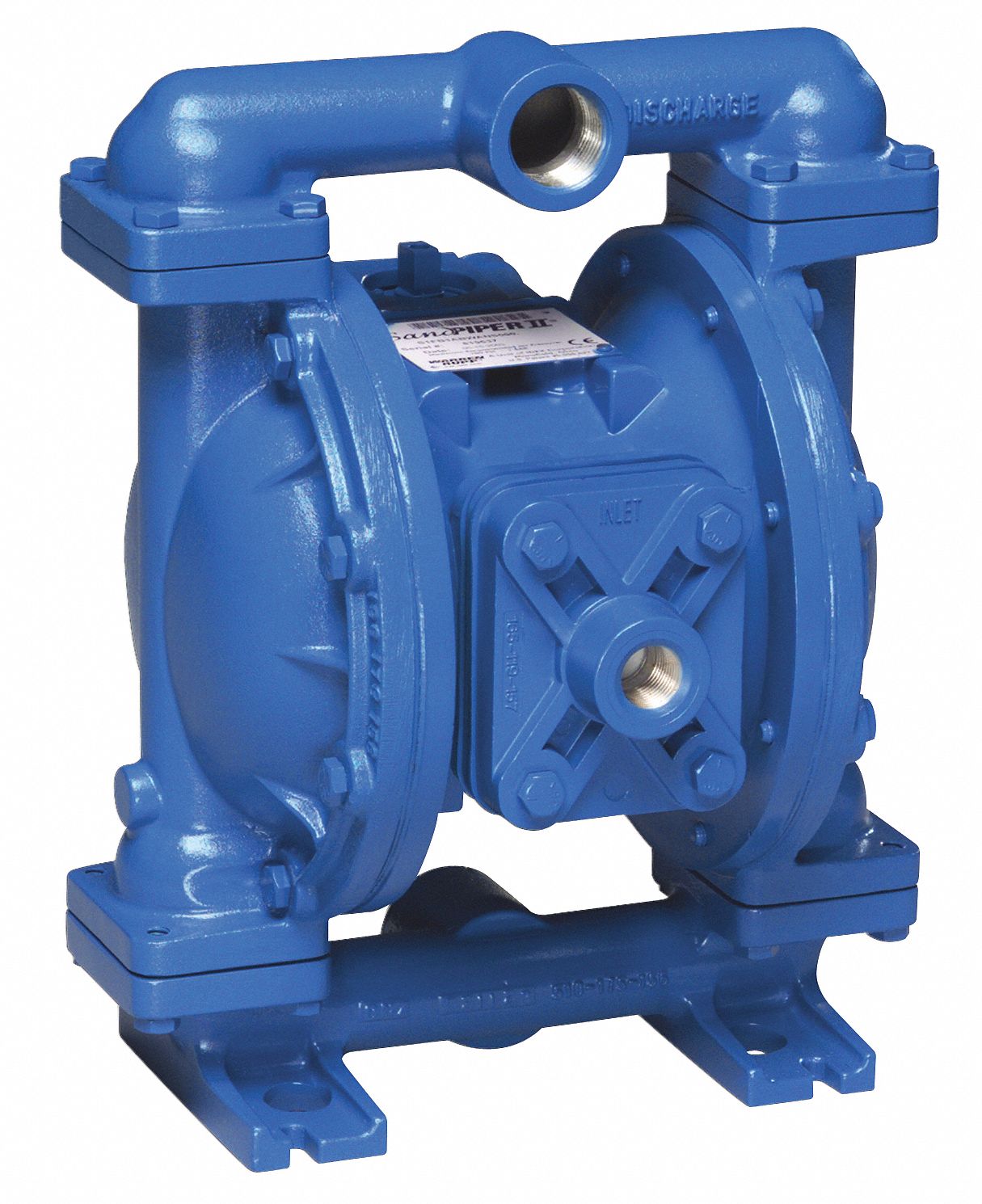

SANDPIPER Pump, 1 In, Aluminum, Buna Diaphragm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Double Diaphragm Pump, Inlet/Outlet 1 In., Flow 45 gpm, Max. Flow GPM 54, Max. Flow 40 cfm, Max. Operating PSI 125, Body Material Aluminum, Diaphragm Material Buna, Ball Material Buna, Check Seat Material Aluminum, Air Inlet (F)NPT 1/2 In., Manifold Connection Single, Max. Dia. Solids 1/4 In., Max. Temp. 190 Degrees F, Self-Priming Dry 21 ft, Length 10-3/8 In., Width 10-1/4 In., Height 12-23/32 In., 5 Year

Grainger Item #	12W426
Price (ea.)	$1,071.00
Brand	SANDPIPER
Mfr. Model #	S1FB1ABWANS000.
UNSPSC #	40151548
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	28.0
Availability	Typically in Stock
Catalog Page No.	4133
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Operated Double Diaphragm Pump
Inlet/Outlet		1"
Flow		45 gpm
Max. Flow GPM		54
Max. Flow		40 cfm
Max. Operating PSI		125
Body Material		Aluminum
Diaphragm Material		Buna
Ball Material		Buna
Check Seat Material		Aluminum
Air Inlet (F)NPT		1/2"
Manifold Connection		Single
Max. Dia. Solids		1/4"
Max. Temp.		190 Degrees F
Self-Priming Dry		21 ft
Length		10-3/8"
Width		10-1/4"
Height		12-23/32"
Manufacturers Warranty Length		5 Year
For Use With		Intermittent/On-Demand, Moderately Abrasive Fluids, and Suspended Solids
