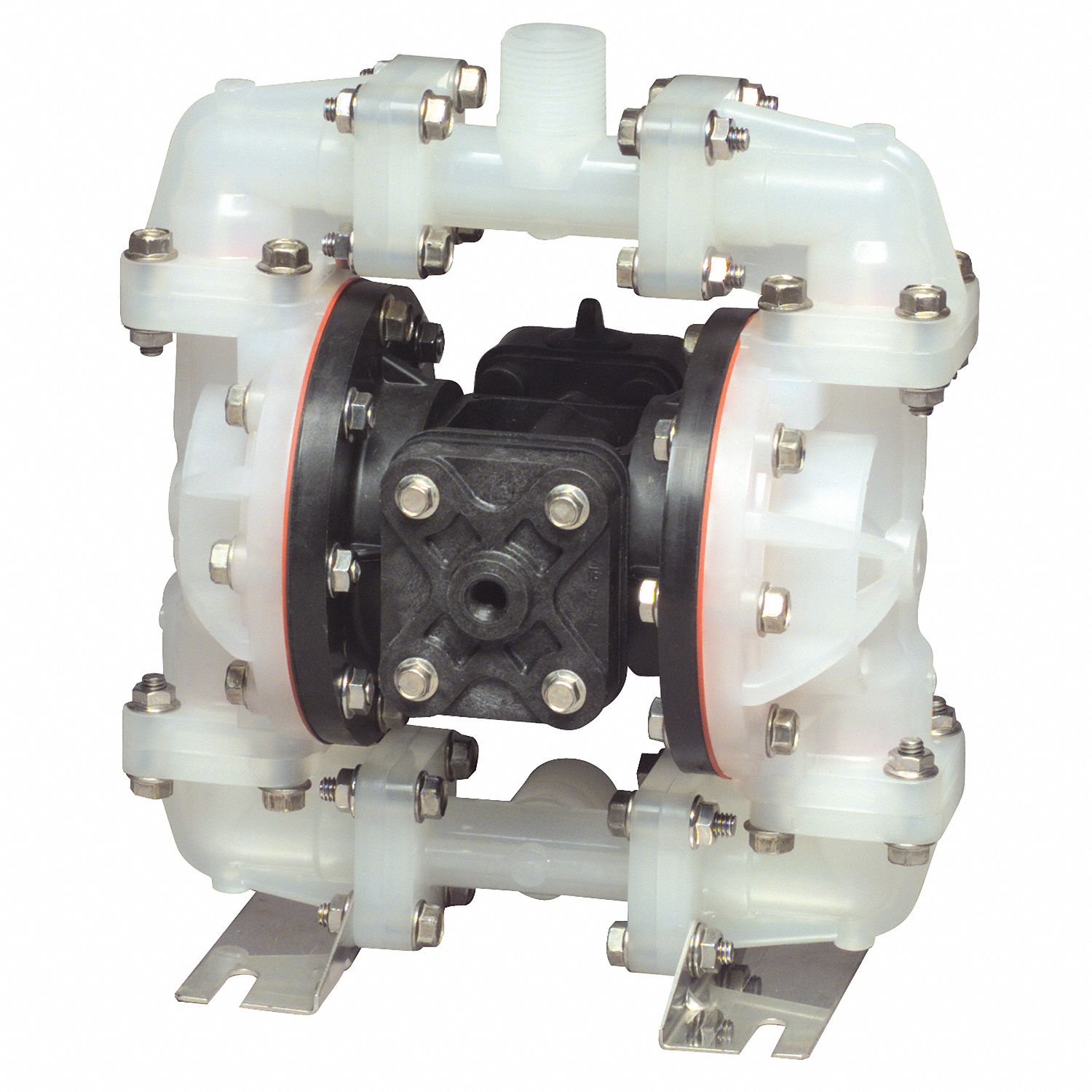

SANDPIPER Pump, 3/4 In, Poly, PTFE Diaphragm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Double Diaphragm Pump, Inlet/Outlet 3/4 In., Flow 23 gpm, Max. Flow GPM 23, Max. Flow 21 cfm, Max. Operating PSI 100, Body Material Polypropylene, Diaphragm Material PTFE, Ball Material PTFE, Check Seat Material Polypropylene, Air Inlet (F)NPT 1/4 In., Manifold Connection Single, Max. Dia. Solids 5/32 In., Max. Temp. 180 Degrees F, Self-Priming Dry 11 ft, Length 7-1/16 In., Width 11-13/16 In., Height 13-11/32 In., 5 Year

Grainger Item #	12W418
Price (ea.)	$1,026.00
Brand	SANDPIPER
Mfr. Model #	S07B1P2PPNS000.
UNSPSC #	40151548
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	17.0
Availability	Typically in Stock
Catalog Page No.	4135
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Operated Double Diaphragm Pump
Inlet/Outlet		3/4"
Flow		23 gpm
Max. Flow GPM		23
Max. Flow		21 cfm
Max. Operating PSI		100
Body Material		Polypropylene
Diaphragm Material		PTFE
Ball Material		PTFE
Check Seat Material		Polypropylene
Air Inlet (F)NPT		1/4"
Manifold Connection		Single
Max. Dia. Solids		5/32"
Max. Temp.		180 Degrees F
Self-Priming Dry		11 ft
Length		7-1/16"
Width		11-13/16"
Height		13-11/32"
Manufacturers Warranty Length		5 Year
For Use With		Highly Corrosive Fluids, Intermittent/On-Demand, Low Abrasive Fluids, and Suspended Solids
