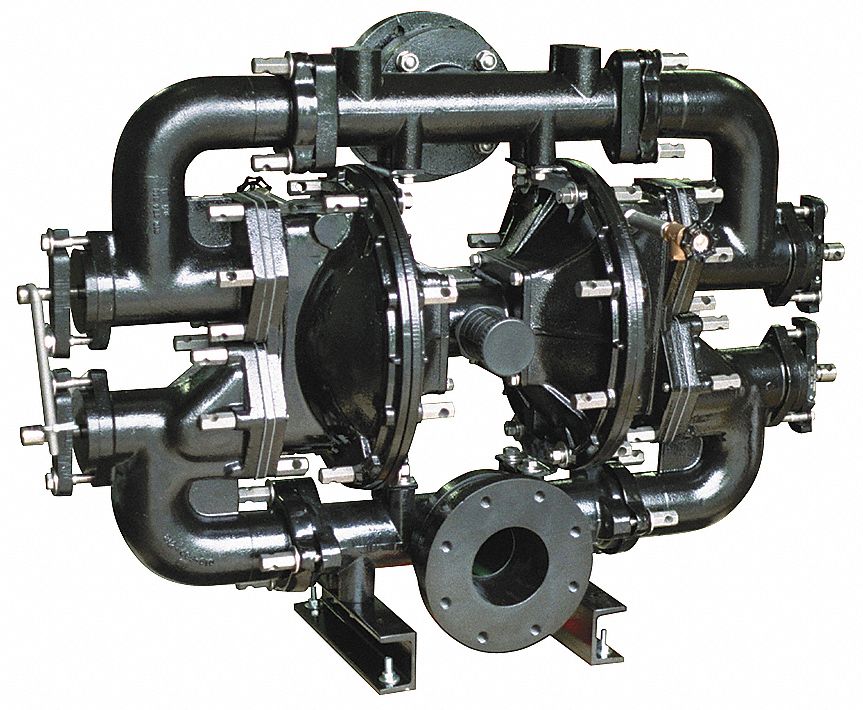

SANDPIPER Pump, 4 In, Cast Iron, Buna N Diaphragm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Diaphragm Pump, Metallic Double Diaphragm, Inlet/Outlet 4 In., Flow 260 GPM, Max. Flow GPM 260, Max. Flow 200 CFM, Max. Operating PSI 125, Body Material Cast Iron, Diaphragm Material Buna N, Check Seat Material Buna, Air Inlet 3/4 In., Manifold Connection Single, Max. Dia. Solids 3 In., Max. Temp. 190 F, Self-Priming Dry 17 Ft., Self-Priming Wet 24 Ft.

Grainger Item #	5GUV0
Price (ea.)	$10,475.00
Brand	SANDPIPER
Mfr. Model #	W15-4 DB1II.
UNSPSC #	40151548
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	490.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	4138
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $1,999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Air Operated Double Diaphragm Pump
Inlet/Outlet		4"
Flow		260 gpm
Max. Flow GPM		260
Max. Flow		200 cfm
Max. Operating PSI		125
Body Material		Cast-Iron
Diaphragm Material		Buna N
Check Seat Material		Buna N
Air Inlet (F)NPT		3/4"
Manifold Connection		Single
Max. Dia. Solids		3"
Max. Temp.		190 Degrees F
Self-Priming Dry		17 ft.
Self-Priming Wet		24 ft.
Length		21-1/2"
Width		44-1/2"
Height		32-1/4"
Manufacturers Warranty Length		5 Years
