Power Transmission
>
Couplings, Collars, and Adapters
>
Motion Control Couplings

4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motion Control Coupling, Bellows Clamp Style, Bore Dia 1/2 x 1/4 In, Outside Dia 1.000 In, Clearance Dia 1.000 In, Hub Dia 1.000 In, Overall Length 1.338 In, Length through Bore 0.657 In, Cap Screw, M3 Screw Size, Torque Nominal 60 In-Lbs, Torsional Stiffness 0.004 Deg/In-Lbs, 10, 000 Max RPM, Max Temp 200 F, Aluminum Material, Anodized Aluminum Finish

Grainger Item #	2APD1
Price (ea.)	$134.40
Brand	RULAND MANUFACTURING
Mfr. Model #	BC16-8-4-A
UNSPSC #	31162811
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.09
Availability	Typically in Stock
Catalog Page No.	189
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

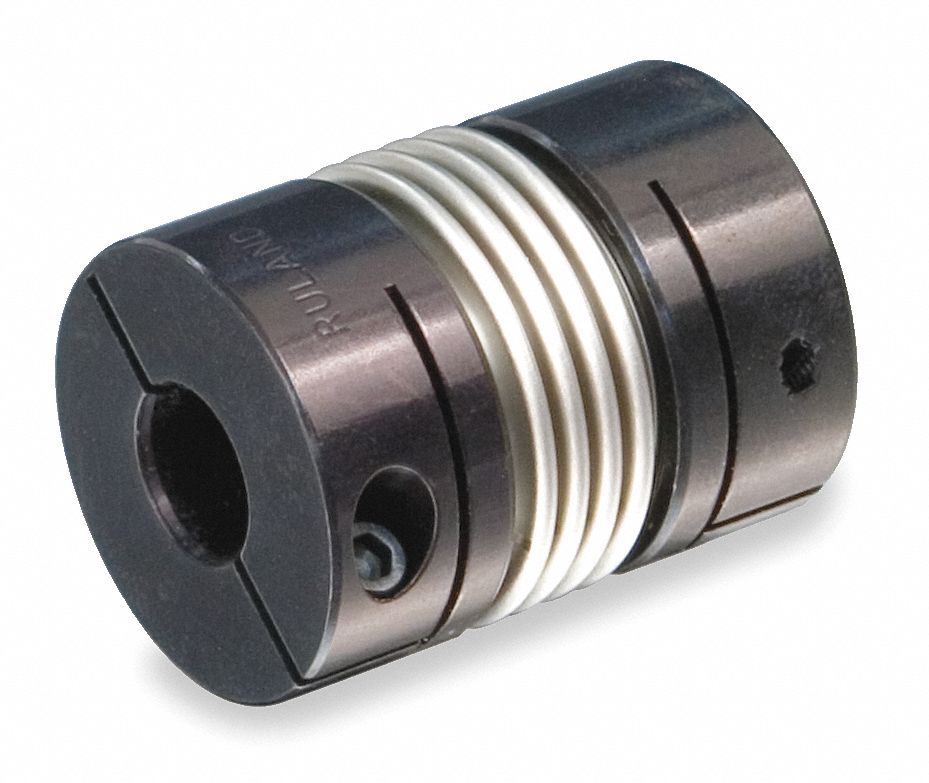

Coupling, Bellows Clamp, Bore 1/2x1/4 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motion Control Coupling
Style		Bellows Clamp
Bore Dia.		1/2 x 1/4"
Outside Dia. (In.)		1.000
Clearance Dia. (In.)		1.000
Overall Length (In.)		1.338
Length through Bore (In.)		0.657
Screw Type		Cap Screw
Screw Size (mm)		M3
Torque (In.-Lbs.)		60
Torsional Stiffness (Deg./In.-Lbs.)		0.004
Max. RPM		10,000
Max. Angular Misalignment		1.5 Degrees
Max. Parallel Misalignment (In.)		0.004
Max. Axial Misalignment (In.)		+/-0.012
Max. Temp. Range (F)		200
Material		Aluminum
Finish		Anodized Aluminum
