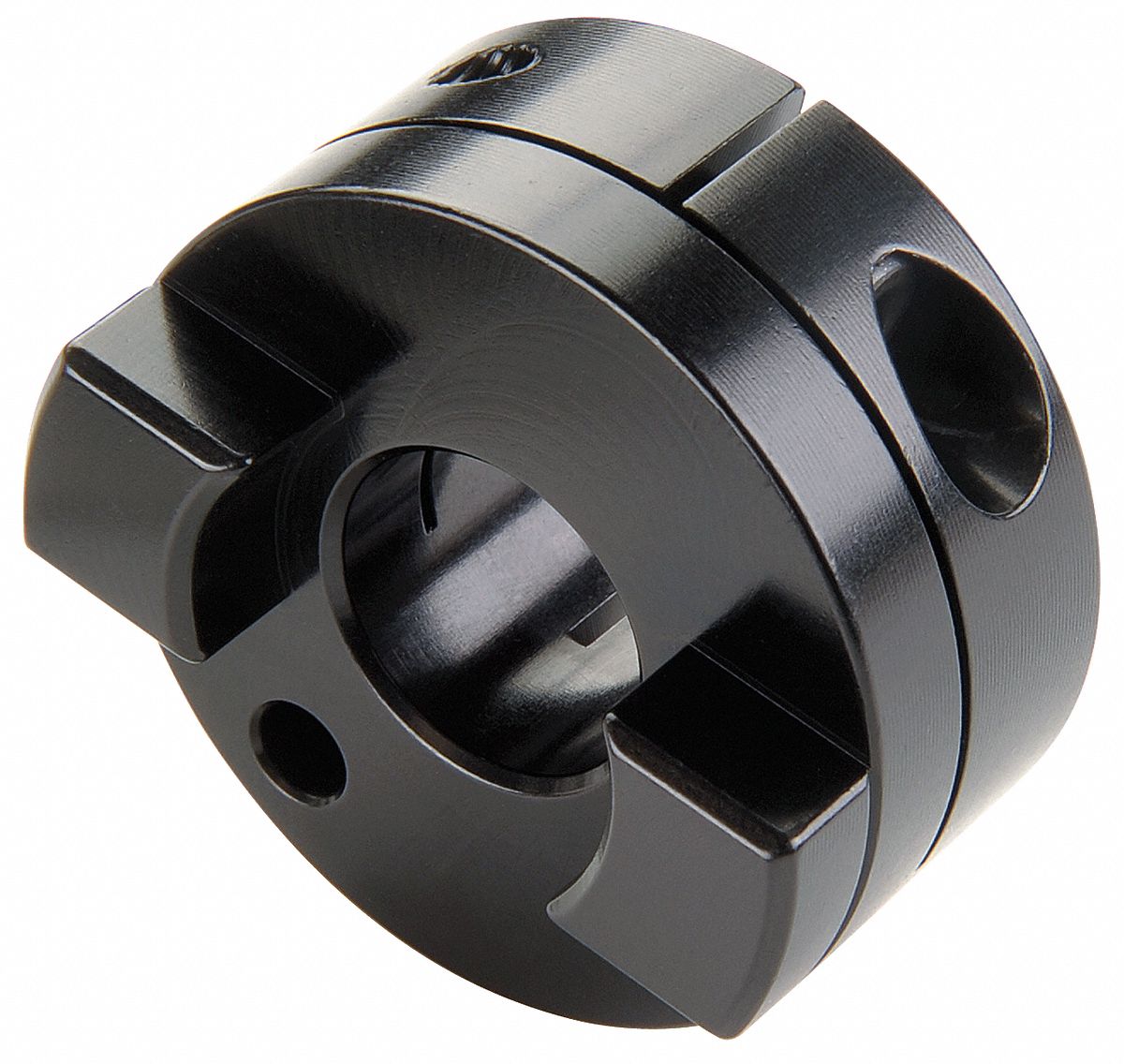

RULAND MANUFACTURING Coupling, Oldham Clamp, Bore 10 mm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motion Control Coupling Hub, Oldham Clamp Style, Bore Dia 10 mm, Outside Dia 33.30 mm, Clearance Dia 33.30 mm, Hub Dia 33.30 mm, Overall Length 15.00 mm, Length through Bore 15.00 mm, Cap Screw, M3 Screw Size, 4500 Max RPM, Max Temp 225 F, Aluminum Material, Anodized Aluminum Finish

Grainger Item #	2ANG4
Price (ea.)	$38.00
Brand	RULAND MANUFACTURING
Mfr. Model #	MOCT33-10-A
UNSPSC #	31162811
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.08
Availability	Item ships within 11 business days from supplier
Catalog Page No.	188
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Motion Control Coupling Hub
Style		Oldham Clamp
Bore Dia.		10mm
Outside Dia. (In.)		1.313
Outside Dia. (mm)		33.30
Clearance Dia. (mm)		33.30
Hub Dia.		33.30mm
Overall Length (mm)		47.6
Length through Bore (mm)		15.00
Screw Type		Cap Screw
Screw Size (mm)		M3
Max. RPM		4500
Max. Angular Misalignment		0.5 Degrees
Max. Parallel Misalignment (In.)		0.008
Max. Axial Misalignment (In.)		+/-.006
Max. Temp. Range (F)		225
Material		Aluminum
Finish		Anodized Aluminum
