Power Transmission
>
Couplings, Collars, and Adapters
>
Motion Control Couplings

4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motion Control Coupling, 6 Beam Clamp Style, Bore Dia 3/8 x 1/4 In, Outside Dia 1.000 In, Clearance Dia 1.117 In, Overall Length 1.500 In, Length through Bore 0.750 In, Cap Screw, M4 Screw Size , Torque Nominal 33 In-Lbs, Torsional Stiffness 0.093 Deg/In-Lbs, 6000 Max RPM, Max Temp 225 F, Aluminum Material, Bright Finish

Grainger Item #	2ADB4
Price (ea.)	$64.00
Brand	RULAND MANUFACTURING
Mfr. Model #	FCR16-6-4-A
UNSPSC #	31162811
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.1
Availability	Typically in Stock
Catalog Page No.	188
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

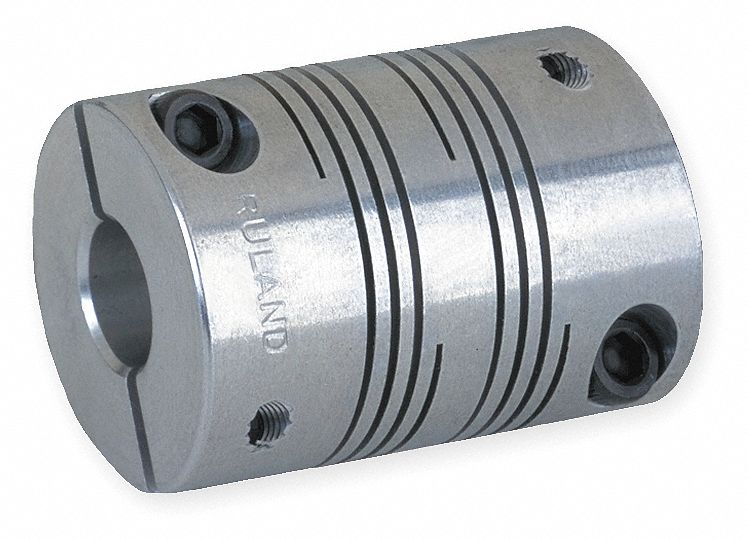

Coupling, 6 Beam Clamp, Bore 3/8 x 1/4 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motion Control Coupling
Style		6 Beam Clamp
Bore Dia.		3/8 x 1/4"
Outside Dia. (In.)		1.000
Clearance Dia. (In.)		1.117
Overall Length (In.)		1.50
Length through Bore (In.)		0.750
Screw Type		Cap Screw
Screw Size (mm)		M4
Torque (In.-Lbs.)		33
Torsional Stiffness (Deg./In.-Lbs.)		0.093
Max. RPM		6000
Max. Angular Misalignment		3 Degrees
Max. Parallel Misalignment (In.)		0.015
Max. Axial Misalignment (In.)		+/-.010
Max. Temp. Range (F)		225
Material		Aluminum
Finish		Bright
