RUD CHAIN Hoist Ring, 180 Pivot, 7700 lb.Load Cap.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Load Ring, VWBG-V 3.5 Swivel, Working Load Limit (Lb.) 7700, Bail Dia. (In.) 0.6875, Thread Size M24, Installation Torque (Ft.-Lb.) 110.634, Pivot (Deg.) 180 Pivot, 360 Swivel, Standards EN 1677-4, Package Quantity 4, Dimension A 11/16 In, Dimension B 2-5/8 In, Dimension C 1-9/16 In, Dimension D 3-3/16 In, Dimension E 6-13/16 In, Dimension F 1-9/16 In

Grainger Item #	16A742
Price (ea.)	$390.25
Brand	RUD CHAIN
Mfr. Model #	7100640
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.45
Availability	Typically in Stock
Catalog Page No.	1448
Country of Origin (Country of Origin is subject to change.)	Germany

Qty.
Price shown may not reflect your price. Sign in or register.

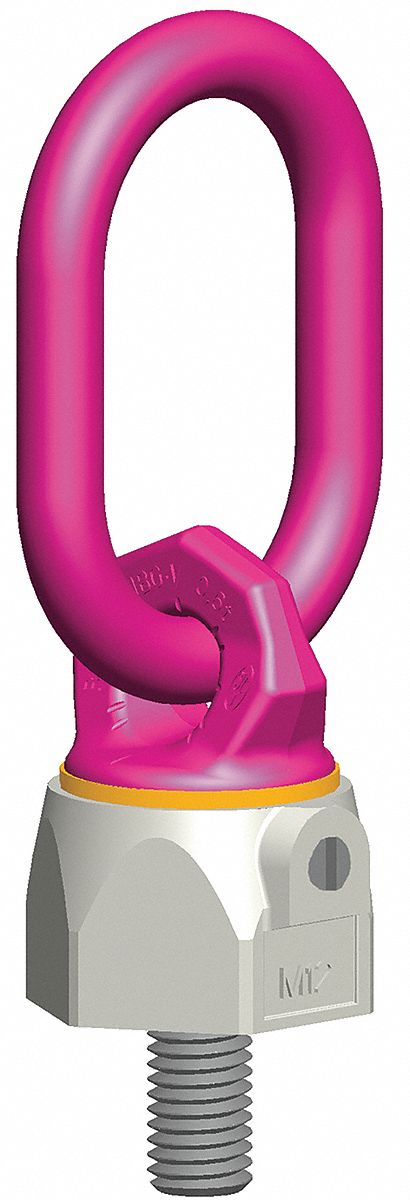

Hoist Ring, 180 Pivot, 7700 lb.Load Cap.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hoist Ring
Mounting Style		Bolt-On
Series		VWBG-V
Pivot		180 Degrees
Swivel Angle		360 Degrees
Working Load Limit		7700 lb.
Bail Dia.		11/16"
Thread Size		M24 x 3
Dimension B		2-5/8"
Dimension C		1-9/16"
Dimension E		6-13/16"
Dimension F		1-9/16"
Installation Torque		111 ft.-lb.
Standards		EN 1677-4
