HVAC and Refrigeration
>
HVAC Controls
>
Line Voltage Thermostats

ROBERTSHAW Line V T-stat, Non Programmable, Heat Only

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Line VoltageThermostat, Mechanical Non Programmable, Switch Type SPST, Switch Action Open on Rise, Number of Switches 1, Control Range 50-90 F, Height 5 In, Width 3 1/4 In, Depth 2 3/4 In, Temp Sensitivity +/- 3 Deg F, Sensor Type Bi Metal, For Use With Heat Only, Color White, Application Mounts to standard 2X4 In Electrical Box, Analog Display, Enclosure Type Plastic, Includes Positive Off Position

Grainger Item #	1TKF9
Price (ea.)	$16.72
Brand	ROBERTSHAW
Mfr. Model #	801
UNSPSC #	41112209
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.63
Availability	Typically in Stock
Catalog Page No.	4570
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

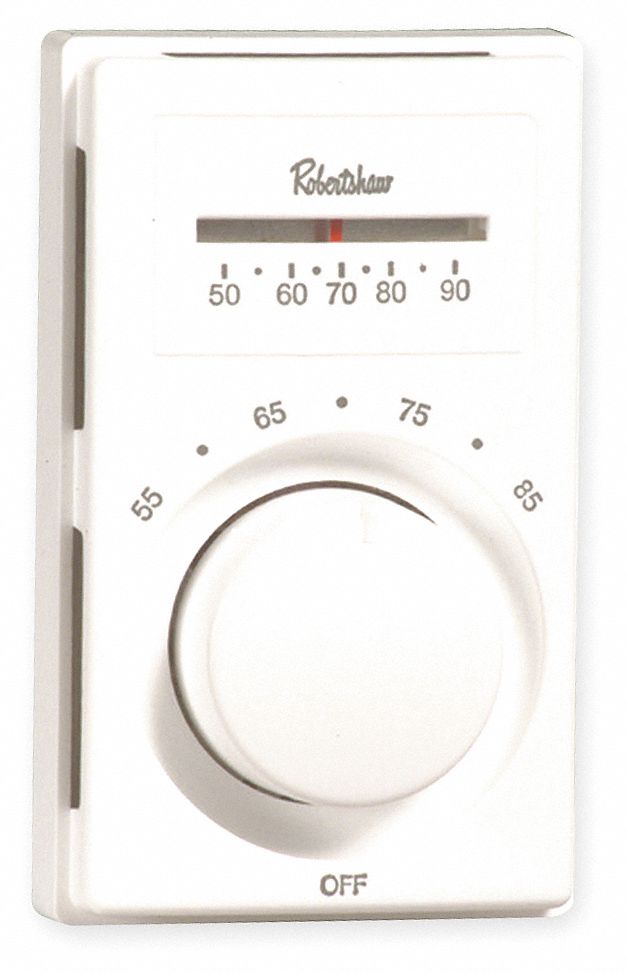

Line V T-stat, Non Programmable, Heat Only

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Line Voltage Thermostat
Type		Heating Only
Switch Type		SPST
Switch Action		Open on Rise
Number of Switches		1
Control Range (F)		50 to 90
Differential (Deg. F)		0
Height (In.)		5
Width (In.)		3-1/4
Depth (In.)		2-3/4
Temp. Sensitivity (Deg. F)		+/- 3
Sensor Type		Bi Metal
Characteristics		Mercury Free Construction, Mechanical Non Programmable
For Use With		Heat Only
Color		White
Application		Mounts to standard 2X4" Electrical Box
Display		Analog
Enclosure Type		Plastic
Input Voltage		125 to 277
Voltage Range		120 to 277VAC
Inductive Amps @ 120V		1/4 HP
Inductive Amps @ 240V		1/3 HP
Full Load Amps @ 120V		25
Full Load Amps @ 240VAC		25
Full Load Amps		25
Contact Rating Resistive @ 120V (A)		25
Resistive Amps @ 208VAC		25
Contact Rating Resistive @ 240V (A)		25
Contact Rating Resistive @ 277V (A)		25
Pilot Duty Contacts (VA)		125
Mounting		Vertical
0-10V Output		No
Includes		Positive Off Position
Agency Compliance		UL
