Plumbing
>
Water Heaters
>
Gas Water Heaters

RHEEM-RUUD Water Heater, 100 gal, Natural Gas, 524 GPH

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Gas Water Heater, Commercial, Tank (Gal.) 100, Gas Type Natural, Input (BTU) 270, 000, Jacket Dia. (In.) 30-1/4, Height/Top of Heater (In.) 66-1/8, Height to T & P Opening (In.) 57-1/2, Gas Connection (In.) 3/4, Height/Gas Connection (In.) 7, Recovery @ 50 F Rise (GPH) 524, Ignition Type Spark To Pilot, Voltage 120, Max. Pressure (PSI) 160, Temp. Range (F) Up to 180, Includes T & P Valve, Full Port/Full Flow Drain Valve, Automatic Flue Damper, Led Diagnostic System, Lonox Burner

Grainger Item #	15A519
Price (ea.)	$10,099.00
Brand	RHEEM-RUUD
Mfr. Model #	GN100-270A
UNSPSC #	40101825
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	836.0
Availability	Typically in Stock
Catalog Page No.	4167
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $1,999.00 each.
Price shown may not reflect your price. Sign in or register.

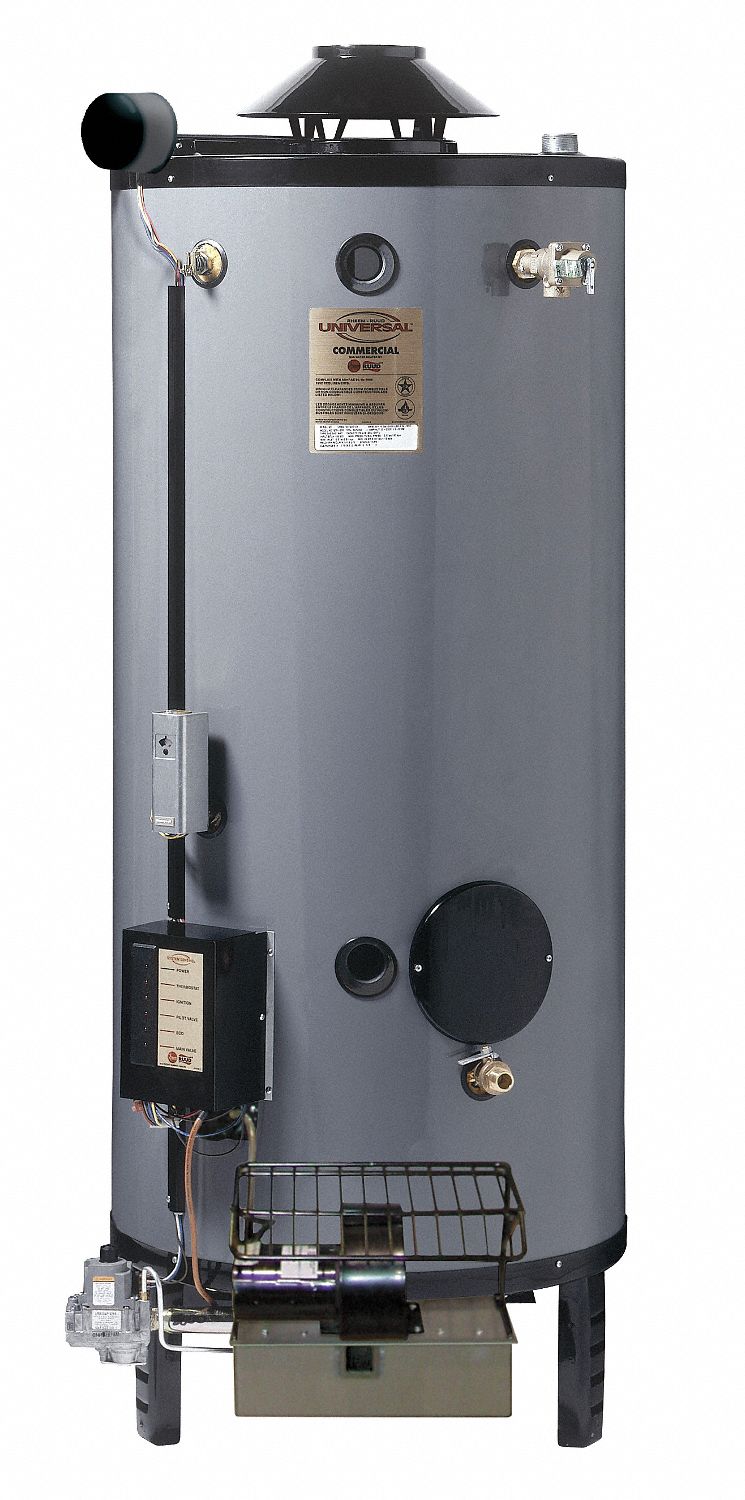

Water Heater, 100 gal, Natural Gas, 524 GPH

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Gas Water Heater
Type		Commercial LoNox
Tank (Gal.)		100
Gas Type		Natural
Input (BTU)		270,000
Jacket Dia. (In.)		30-1/4
Height/Top of Vent Connection (In.)		73-7/8
Draft Hood Size (In.)		6
Height/Top of Heater (In.)		66-1/8
Top Water Connection (In.)		1-1/2
Side Water Connection (In.)		2
Top Nipple Spacing (In.)		23
Height/Side Hot Connection (In.)		57-1/2
Height/Cold Side Connection (In.)		23-1/4
Height to T & P Opening (In.)		57-1/2
Gas Connection (In.)		3/4
Height/Gas Connection (In.)		7
Recovery @ 50 F Rise (GPH)		524
Recovery @ 70 F Rise (GPH)		374
Recovery @ 90 F Rise (GPH)		291
Recovery @ 100 F Rise (GPH)		262
Recovery @ 110 F Rise (GPH)		238
Recovery @ 120 F Rise (GPH)		218
Recovery @ 130 F Rise (GPH)		201
Recovery @ 140 F Rise (GPH)		187
Ignition Type		Spark To Pilot
Voltage		120
Max. Pressure (PSI)		160
Temp. Range (F)		0 to 180 Degrees
Features		Top/Front/Side Water Connections, Multi-Flue Tank Design, Low Profile Automatic Flue Design, System Sentinel Led Diagnostic, Full Port Full Flow Drain Valve, Lonox Burner
Manufacturers Warranty Length		3 Year Limited Tank, 1 Year Limited Parts
Standards		CSA, ANSI, ASHRAE, ASME, ASHRAE Standard (Epact), ANSI Z21.10.3, NC Compliant, CEC
Compliance		Certified For Use In Potable Water Applications
Includes		T&P Valve, Full Port/Full Flow Drain Valve, Automatic Flue Damper, Led Diagnostic System, Lonox Burner
Green Environmental Attribute		Not Applicable
