Pumps
>
Sump, Effluent and Sewage Pumps
>
Utility/Dewatering Pumps

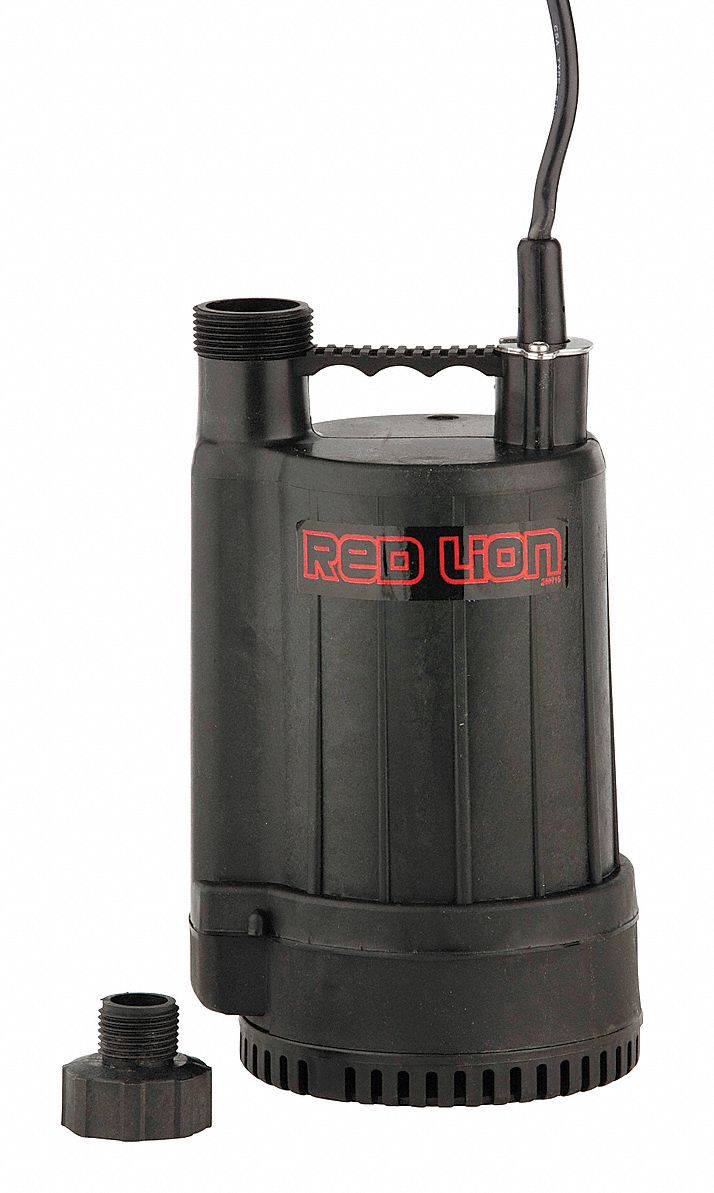

RED LION Sump Pump, Utility, 1/6 HP, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Submersible Sump Pump, Dewatering/Utility, 1/6 HP, Voltage 115, 2.3 Amps, Automatic Thermal Protection, Cord Length 8 ft., Discharge NPT 3/4 In GHT, Screened Suction, Max. Dia. Solids 1/8 In, Maximum Head 25 ft., Max. Liquid Temp. 120 Degrees F, Housing ABS Plastic, Top Material ABS Plastic, Base Material ABS Plastic, Impeller Material ABS Plastic, Height 12 In, Diameter 6 In

Grainger Item #	19T430
Price (ea.)	$129.30
Brand	RED LION
Mfr. Model #	RL-MP16
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.9
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Taiwan
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Submersible Sump Pump
Type		Dewatering/Utility
HP		1/6
Voltage		115
Amps		2.3
Cord Length		8 ft.
Cord Size		18/3
Cord Type		SJTW
Discharge NPT		3/4" GHT
GPM @ 1 Ft. of Head		21.7
GPM of Water @ 5 Ft. of Head		20
GPM of Water @ 10 Ft. of Head		17.5
GPM of Water @ 15 Ft. of Head		13.8
GPM of Water @ 20 Ft. of Head		9.2
Maximum Head		25 ft.
Height		12"
Diameter		6"
Housing		ABS Plastic
Top Material		ABS Plastic
Base Material		ABS Plastic
Impeller Material		ABS Plastic
Length		6"
Width		5-1/2"
Max. Dia. Solids		1/8"
Max. Liquid Temp.		120 Degrees F
Min. Sump Pit Dia.		6"
Motor Type		PSC
Thermal Protection		Automatic
Motor Housing		ABS Plastic
Phase		1
RPM		3600
Hz		60
Insulation Class		A
Bearing Type		Double Ball
Shaft Material		CRS
Shaft Seal		Carbon/Ceramic
Suction		Screened
Duty		Continuous
Handle		Yes
Application		General Water Removal
Agency Compliance		cCSAus
Warranty		2 Years
