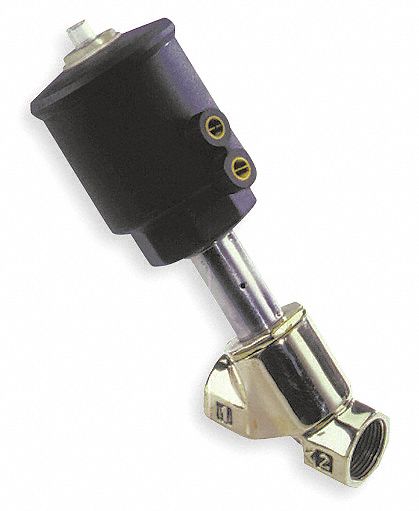

RED HAT Angle Body Piston Valve, Bronze, NC, 1.5 In

Angle Body Piston Valve, Body Material Bronze, 2-Way/2-Position, Normally Closed, Pipe Size 1-1/2 In., Orifice Dia. 1-1/2 In., Coefficient of Volume 52, Min. Operating Pressure Differential 0 psi, Max. Operating Pressure Differential Water 120 psi, Max. Operating Pressure Differential Steam 120 psi, Min. Pilot Pressure 60 psi, Max. Pilot Pressure 150 psi, Operator Size 90 mm, Ambient Temp. Range 15 Degrees to 140 Degrees F, Stem Material 431 Stainless Steel, Disc Material Brass
  • Grainger Item #3UK38
    Price (ea.)$579.50
    BrandRED HAT
    Mfr. Model #8290A021
    UNSPSC #40141605
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)8.3
    Availability Typically in Stock
    Catalog Page No.4385
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemAngle Body Piston Valve
Body MaterialBronze
Valve Design2-Way/2-Position
Valve ConfigurationNormally Closed
Pipe Size1-1/2"
Orifice Dia.1-1/2"
Coefficient of Volume52
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Water120 psi
Max. Operating Pressure Differential Steam120 psi
Min. Pilot Pressure60 psi
Max. Pilot Pressure150 psi
Operator Size90 mm
Ambient Temp. Range15 Degrees to 140 Degrees F
Stem Material431 Stainless Steel
Disc MaterialBrass
Center Line Pipe Center Size9-1/8"
Max. Fluid Temp.366 Degrees F
Viscosity2,700 SSU
Overall Length4-3/4"
Overall Width9-3/5"
Overall Height10-5/16"
ActuatorPilot Solenoid Valve, Not Included

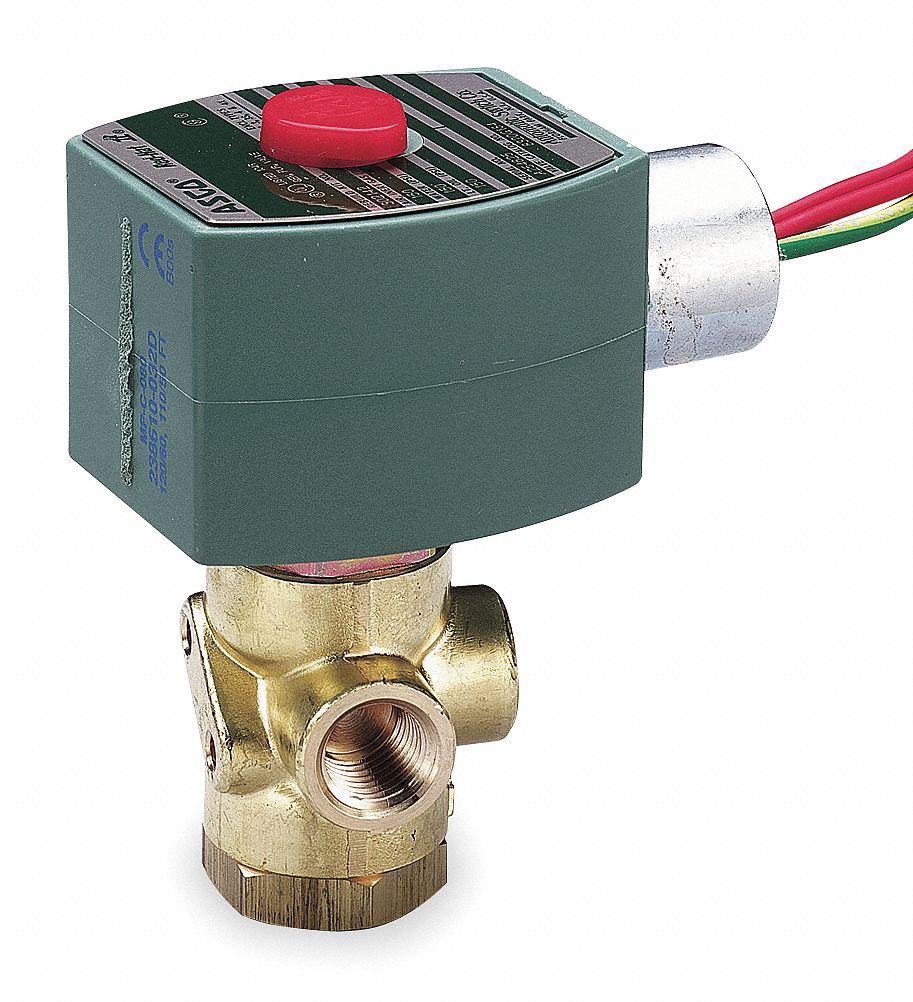

Optional Accessories

More Accessories

Brand:

RED HAT

Grainger Item #:

3UL95

Price (ea.):

$134.90
