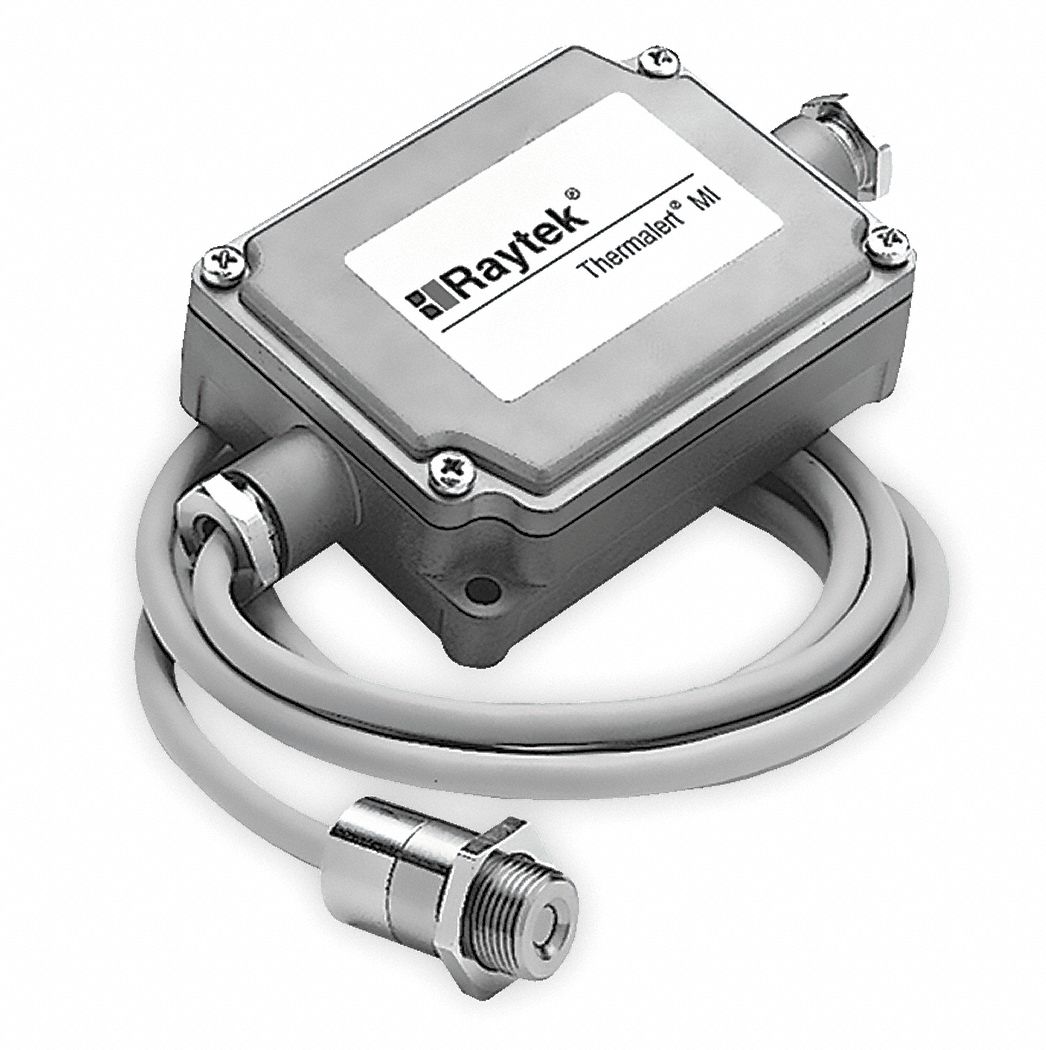

Fixed Mount Infrared Temperature Sensor, Temp. Range -40 Degrees to 1112 Degrees F, Output 4 to 20 mA DC, 0-5 V DC, J or K Thermocouple, Focus Spot Size and Distance 1 In. @ 10 In., Power Source 12 to 24 VDC, Cable Length 3.28 ft., Impedance 20 Ohms (On Thermocouple Output), Loop Resistance 100 K Ohms On mV DC Output or 500 Ohms On mA DC Output With 24 V DC Power, Current Rating 100mA, Emissivity Adjustable 0.1 to 1, Spectral Response 8 To 14uM, Ambient Temp. Range 32 Degrees To 160 Degrees F
  • Grainger Item #1CVJ7
    Price (ea.)$807.00
    BrandRAYTEK
    Mfr. Model #RAYMID10LT
    UNSPSC #41112219
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)0.88
    Availability Typically in Stock
    Catalog Page No.831
    Country of Origin
    (Country of Origin is subject to change.)
    Germany
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemFixed Mount Infrared Temperature Sensor
Temp. Range-40 Degrees to 1112 Degrees F
Output4 to 20 mA DC, 0-5 V DC, J or K Thermocouple
Focus Spot Size and Distance1" @ 10"
Power Source12 to 24 VDC
Cable Length3.28 ft.
Impedance20 Ohms (On Thermocouple Output)
Loop Resistance100 K Ohms On mV DC Output or 500 Ohms On mA DC Output With 24 V DC Power
Current Rating100mA
EmissivityAdjustable 0.1 to 1
Spectral Response8 To 14uM
Ambient Temp. Range32 Degrees To 160 Degrees F
Response Time150ms
Accuracy+/-1% or +/-2 Degrees F
Repeatability+/-0.5% of Reading or +/-1 Degrees F, Whichever Is Greater
Sensor Length1.1"
Thread SizeM12 x 1
Dia.0.55"
Housing Length3.2"
Housing Width2.4"
Environmental ApplicationsIP 65 (NEMA-4)
IncludesHead Mounting Nut and Instructions
Manufacturers Warranty Length2 years
