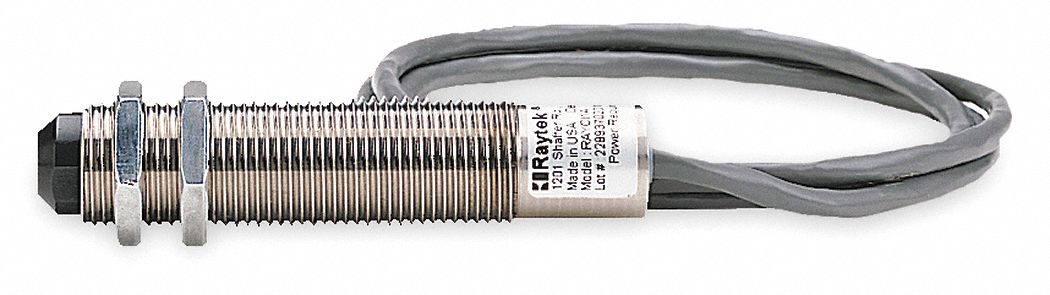

Fixed Mount Infrared Temperature Sensor, Temp. Range 212 Degrees to 932 Degrees F, Output J Thermocouple, Focus Spot Size and Distance 1 In. @ 4 In., Power Source 12 to 24 VDC, Cable Length 10 ft., Impedance 50 Ohms, Loop Resistance 50 K Ohms, Current Rating 20mA, Emissivity Fixed 0.95, Spectral Response 8 To 14uM, Ambient Temp. Range 32 Degrees To 160 Degrees F, Response Time 350ms, Accuracy +/-2 Percent or +/-6 Degrees F (+/-3 Degrees C)
  • Grainger Item #1CVJ2
    Price (ea.)$450.50
    BrandRAYTEK
    Mfr. Model #RAYCI1B10L
    UNSPSC #41112213
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)0.61
    Availability Typically in Stock
    Catalog Page No.831
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemFixed Mount Infrared Temperature Sensor
Temp. Range212 Degrees to 932 Degrees F
OutputJ Thermocouple
Focus Spot Size and Distance1" @ 4"
Power Source12 to 24 VDC
Cable Length10 ft.
Impedance50 Ohms
Loop Resistance50 K Ohms
Current Rating20mA
EmissivityFixed 0.95
Spectral Response8 To 14uM
Ambient Temp. Range32 Degrees To 160 Degrees F
Response Time350ms
Accuracy+/-2% or +/-6 Degrees F ( +/-3 Degrees C)
Repeatability+/-1% of Measured Value or +/-2 Degrees F, Whichever Is Greater
Sensor Length3.5"
Thread Size3/4-16 UNF
Dia.0.75"
Environmental ApplicationsIP 65 (NEMA-4)
Includes(2) Mounting Nuts and Instructions
Manufacturers Warranty Length2 years
