PRESTOLITE MOTORS DC Motor, PM, TENV, 1/6 HP, 700 rpm, 12VDC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Motor, Permanent Magnet, Totally Enclosed Nonventilated, 1/6 HP, 700 Nameplate RPM, Voltage 12VDC, Full Load Amps 16.0, Full Load Torque 12 in.-lb., NEMA/IEC Frame Nonstandard, Mounting Flange, Thermal Protection None, F Insulation Class, Bearings Ball, Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 7 In., 5-13/16 In. Length Less Shaft, Body Dia. 4-13/16 In., Shaft Dia. 1/2 In., Shaft Length 1-1/8 In.Face Mounting O.C. 4-7/32 In.Brush Type Carbon

Grainger Item #	5JJP3
Price (ea.)	$315.00
Brand	PRESTOLITE MOTORS
Mfr. Model #	MZD-4001S
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

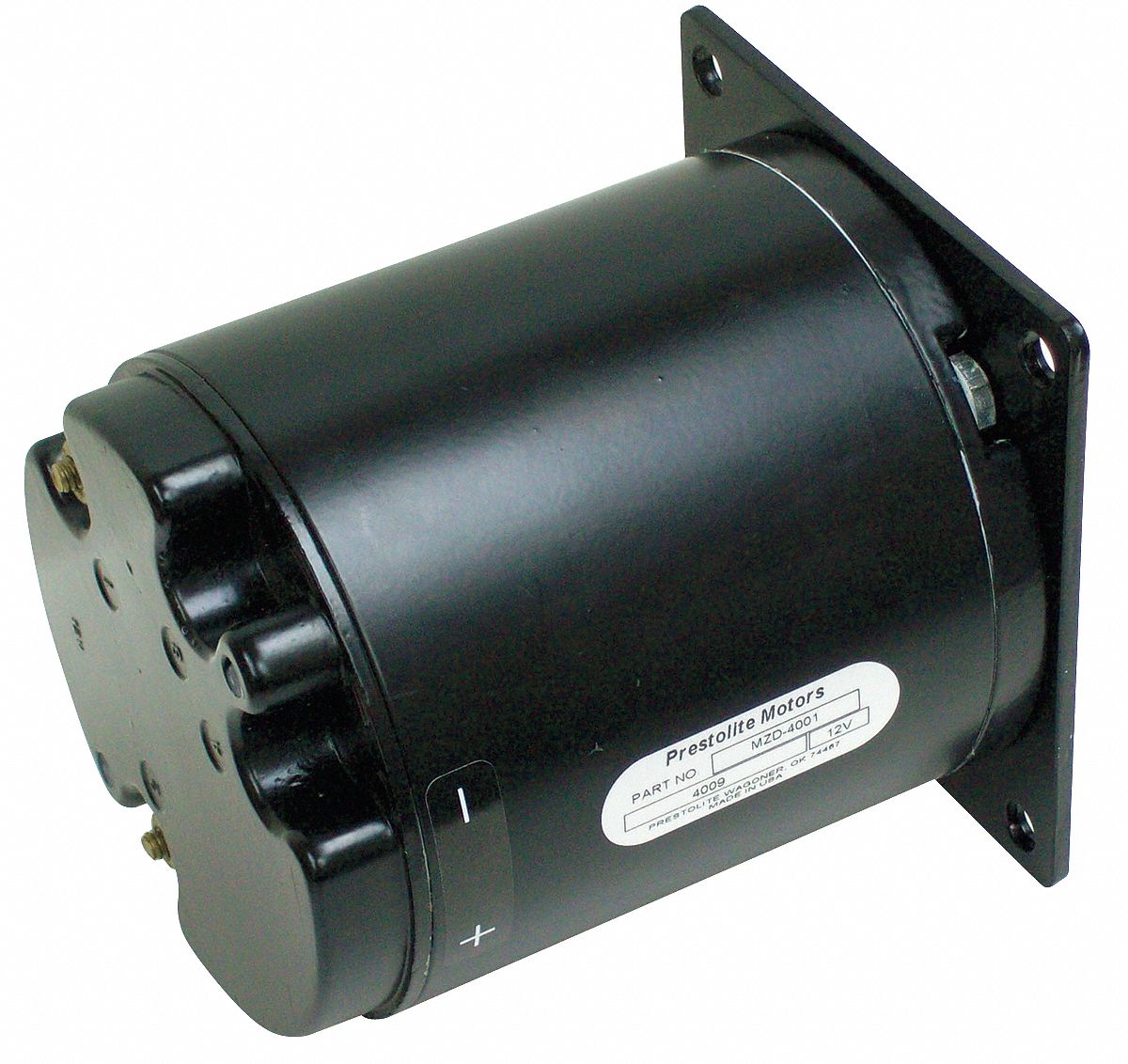

DC Motor, PM, TENV, 1/6 HP, 700 rpm, 12VDC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Motor
Motor Type		Permanent Magnet
Enclosure		Totally Enclosed Nonventilated
HP		1/6
Nameplate RPM		700
Voltage		12VDC
Full Load Amps		16.0
Full Load Torque		12 in.-lb.
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Mounting		Flange
Thermal Protection		None
Insulation Class		F
Bearings		Ball
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Overall Length		7"
Length Less Shaft		5-13/16"
Body Dia.		4-13/16"
Shaft Dia.		1/2"
Shaft Length		1-1/8"
Face Mounting O.C.		4-7/32"
Brush Type		Carbon
