Motors
>
DC Motors
>
DC Wound Field Motors

PRESTOLITE MOTORS DC Motor, 7-7/16 In. L, CCWDE, Wound Field

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Motor, Wound Field, Totally Enclosed Fan-Cooled, 2 HP, 2800 Nameplate RPM, 12 Armature Volts DC, 12, Full Load Amps 200, Nonstandard NEMA/IEC FrameAmbient Temperature 40 Degrees C, Insulation Class F, Rotation CCWDE, Special Mounting, Ball Bearings, 7-7/16 In., 9/16 In., 3/8 In., Hydraulic Tail Gate Lifts

Grainger Item #	5JJN5
Price (ea.)	$270.00
Brand	PRESTOLITE MOTORS
Mfr. Model #	MMY-6304S
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.06
Availability	Typically in Stock
Catalog Page No.	39
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

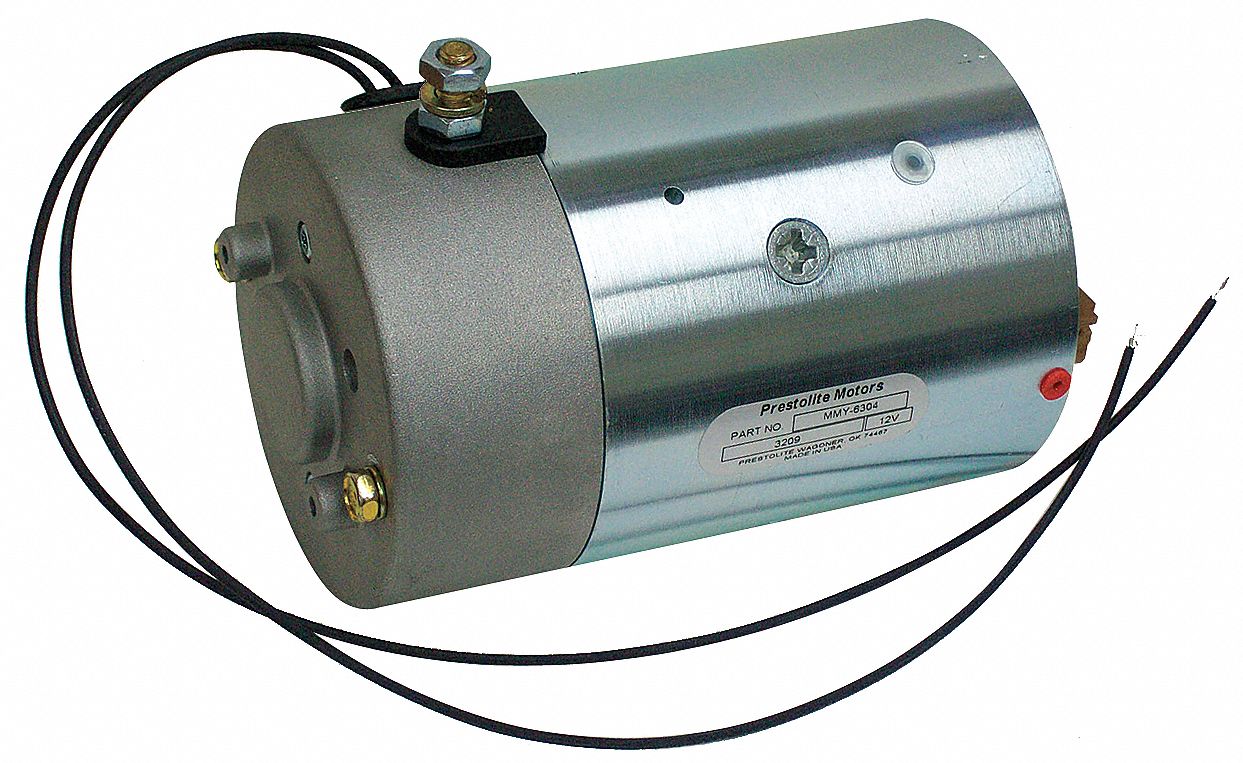

DC Motor, 7-7/16 In. L, CCWDE, Wound Field

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Motor
Motor Type		Wound Field
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		2800
Armature Volts DC		12
Field Volts DC		12
Full Load Amps		200
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Ambient Temperature		40 Degrees C
Insulation Class		F
Rotation		CCWDE
Mounting		Special
Bearings		Ball
Overall Length		7-7/16"
Shaft Dia.		9/16"
Shaft Length		3/8"
Application		Hydraulic Tail Gate Lifts
