Motors
>
DC Motors
>
DC Wound Field Motors

CCW, Wound Field

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Motor, Wound Field, Totally Enclosed Fan-Cooled, 1.6 HP, 2800 Nameplate RPM, 12 Armature Volts DC, 12, Full Load Amps 200, Nonstandard NEMA/IEC FrameAmbient Temperature 40 Degrees C, Insulation Class F, Rotation CW/CCW, Special Mounting, Ball Bearings, 6-3/4 In., 9/16 In., 7/16 In., Hydraulic Tail Gate Lifts

Grainger Item #	5JJN4
Price (ea.)	$238.00
Brand	PRESTOLITE MOTORS
Mfr. Model #	MUV-6301S
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.48
Availability	Typically in Stock
Catalog Page No.	39
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

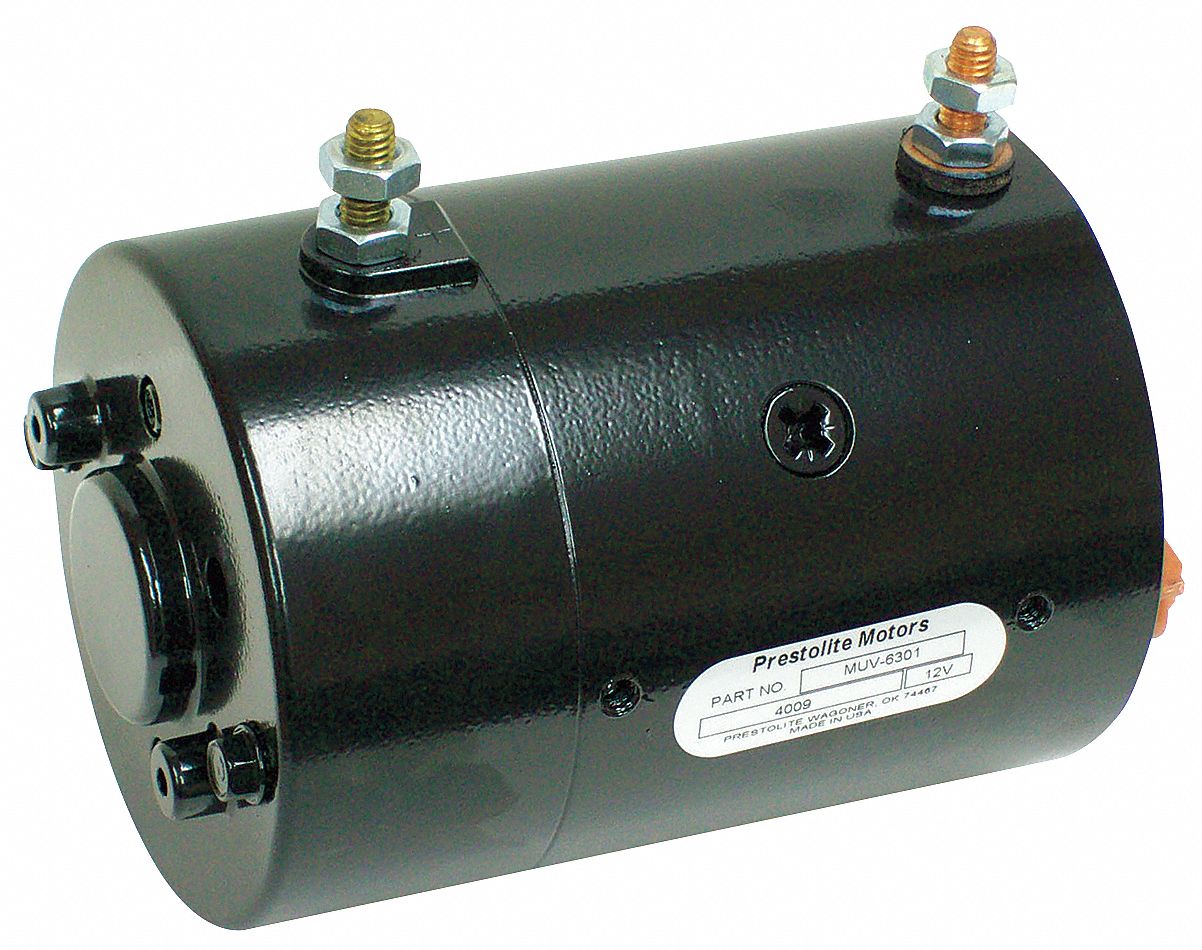

DC Motor, 6-3/4 In. L, CW/CCW, Wound Field

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Motor
Motor Type		Wound Field
Enclosure		Totally Enclosed Fan-Cooled
HP		1.6
Nameplate RPM		2800
Armature Volts DC		12
Field Volts DC		12
Full Load Amps		200
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Ambient Temperature		40 Degrees C
Insulation Class		F
Rotation		CW/CCW
Mounting		Special
Bearings		Ball
Overall Length		6-3/4"
Shaft Dia.		9/16"
Shaft Length		7/16"
Application		Hydraulic Tail Gate Lifts
