Material Handling
>
Lifting Magnets and Suction Cup Lifters
>
Below-the-Hook Lifting Suction Cups

POWR-GRIP Flexible Lifter, Horizontal, Compresed Air

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Flexible Lifter, Application Stone Handling, Load Movement Type Horizontal, Max. Lift Load Cap. (Lb.) 1500, Number of Pads 5, Cup Dia. 10 In., Pad Spread 63 In.L x 11 In.W to 89 In.L x 11 In.W, Power Requirements 5 scfm, 80 to 150 psi Compressed Air, Features Movable Vacuum Pad Mounts, Vacuum Reserve Tank, Vacuum Line Filter, Vacuum Gauge, Standards ASME B30.20-2006

Grainger Item #	2MDF7
Price (ea.)	$5,149.00
Brand	POWR-GRIP
Mfr. Model #	FLEX5HV11AIR
UNSPSC #	24101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	281.0
Availability	Item ships within 21 business days from supplier
Catalog Page No.	1484
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

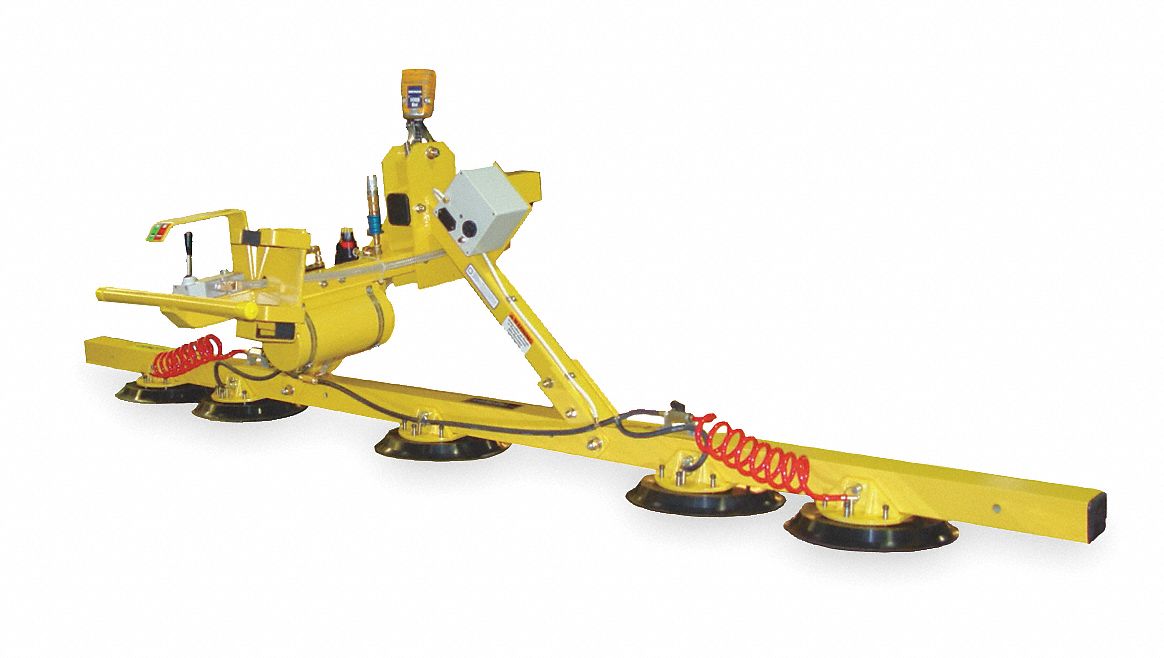

Flexible Lifter, Horizontal, Compresed Air

Enlarge Image

Item		Flexible Lifter
Application		Stone Handling
Load Movement Type		Horizontal
Max. Lift Load Cap. (Lb.)		1500
Number of Pads		5
Cup Dia.		10"
Pad Spread		63"L x 11"W to 89"L x 11"W
Power Requirements		5 scfm, 80 to 150 psi Compressed Air
Features		Movable Vacuum Pad Mounts, Vacuum Reserve Tank, Vacuum Line Filter, Vacuum Gauge
Standards		ASME B30.20-2006
