Power Transmission
>
Couplings, Collars, and Adapters
>
Chain Couplings

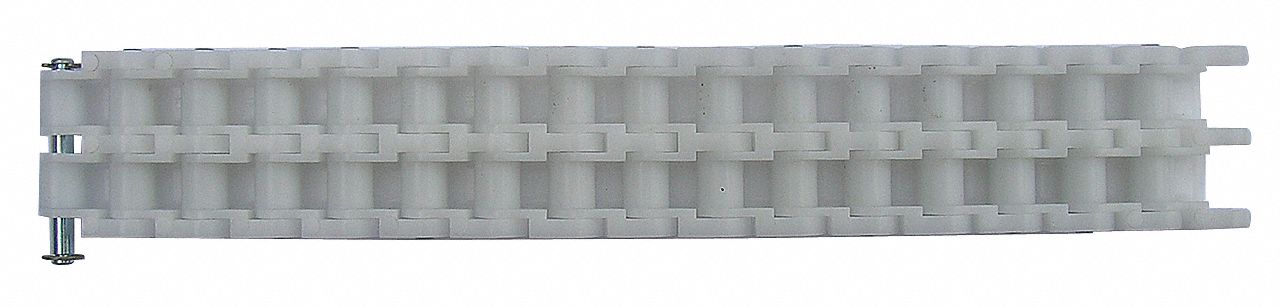

POWER DRIVE Delrin Coupling Chain, 2.37 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Delrin Coupling Chain, Max Number of Teeth 12, Pitch 40, Outside Dia 2.370 In, Width 1.2500 In, Max Parallel Misalignment 0.005 In, Angular Misalignment Tolerance 1 Degree (10T-19T), 1/2 Degree (20T-24T), End Float Tolerance 0.060 In, Temp Range -25 to 150 Degrees F, HP Rating @ 100 RPM 0.51, (2) 40 Pitch 12 Teeth Sprockets Required, Slip-fit Coupler Pin, Material Delrin, For Use With (2) 40 Pitch 12 Teeth Sprockets

Grainger Item #	6AGT4
Price (ea.)	$34.90
Brand	POWER DRIVE
Mfr. Model #	N412CPLG
UNSPSC #	31163002
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.2
Availability	Typically in Stock
Catalog Page No.	181
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Delrin Coupling Chain
Max. Number of Teeth		12
Pitch		40
Outside Dia. (In.)		2.370
Width (In.)		1.2500
Max. Parallel Misalignment (In.)		0.0050
Angular Misalignment Tolerance		1 Degree (10T-19T), 1/2 Degree (20T-24T)
End Float Tolerance (In.)		0.060
Temp. Range (F)		-25 Degrees - 150 Degrees
HP Rating @ 100 RPM		0.51
Sprocket		(2) 40 Pitch 12 Teeth Sprockets Required
Coupler Pin		Slip-fit
Material		Delrin
For Use With		(2) 40 Pitch 12 Teeth Sprockets
