Power Transmission
>
Couplings, Collars, and Adapters
>
Chain Couplings

2 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Chain Coupling Sprocket, Bore Type Bushed, Bore Dia Bushed 1/2 to 1-1/2 In, Bushing Required QT or H, Max Number of Teeth 16, Pitch 50, Outside Dia 4.125 In, Width 1.6250 In, Max Parallel Misalignment 0.005 In, Angular Misalignment Tolerance 6 Degree (10T-19T), 1/2 Degree (20T-24T), End Float Tolerance 0.060 In, Temp Range -25 to 150 Degrees F, HP Rating @ 100 RPM 0.90, Material Steel, For Use With 6AGR0, 6AGR9

Grainger Item #	6AGT0
Price (ea.)	$64.55
Brand	POWER DRIVE
Mfr. Model #	C5016XH
UNSPSC #	31163002
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.98
Availability	Typically in Stock
Catalog Page No.	181
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

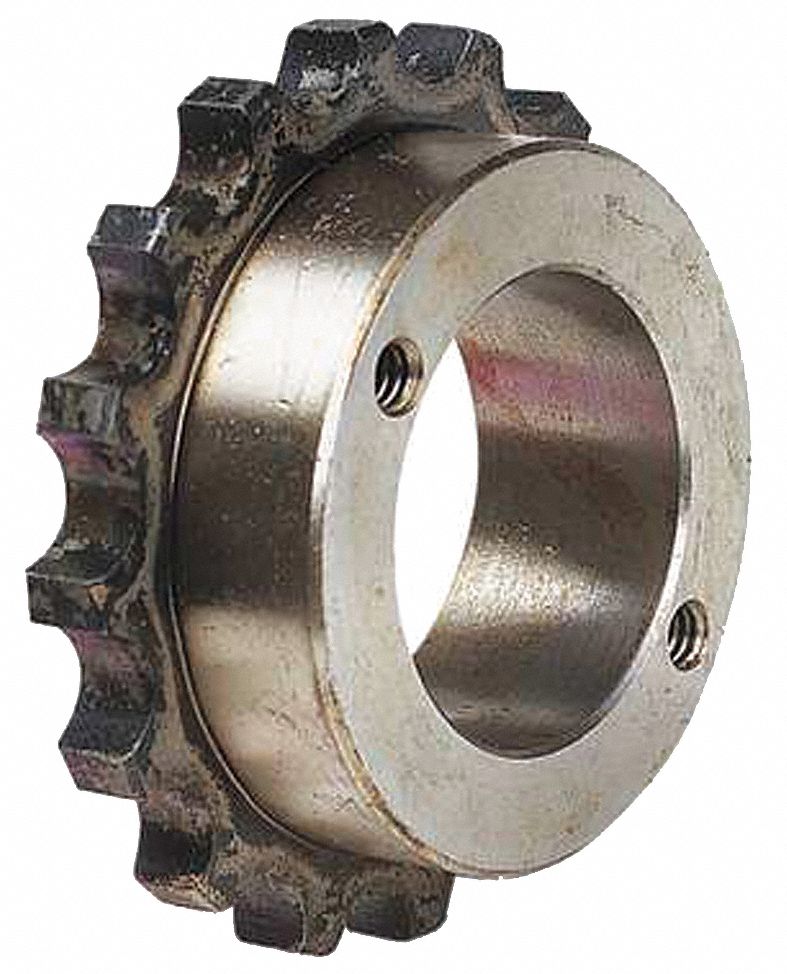

Chain Cplg Sprocket, Bore 1/2 - 1-1/2 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Chain Coupling Sprocket
Bore Type		Bushed
Bore Dia. (In.)		1/2 - 1-1/2
Bushing Required		QT or H
Max. Number of Teeth		16
Pitch		50
Outside Dia. (In.)		4.125
Width (In.)		1.6250
Max. Parallel Misalignment (In.)		0.0050
Angular Misalignment Tolerance		6 Degree (10T-19T), 1/2 Degree (20T-24T)
End Float Tolerance (In.)		0.060
Temp. Range (F)		-25 Degrees - 150 Degrees
HP Rating @ 100 RPM		0.90
Material		Steel
For Use With		6AGR0, 6AGR9
