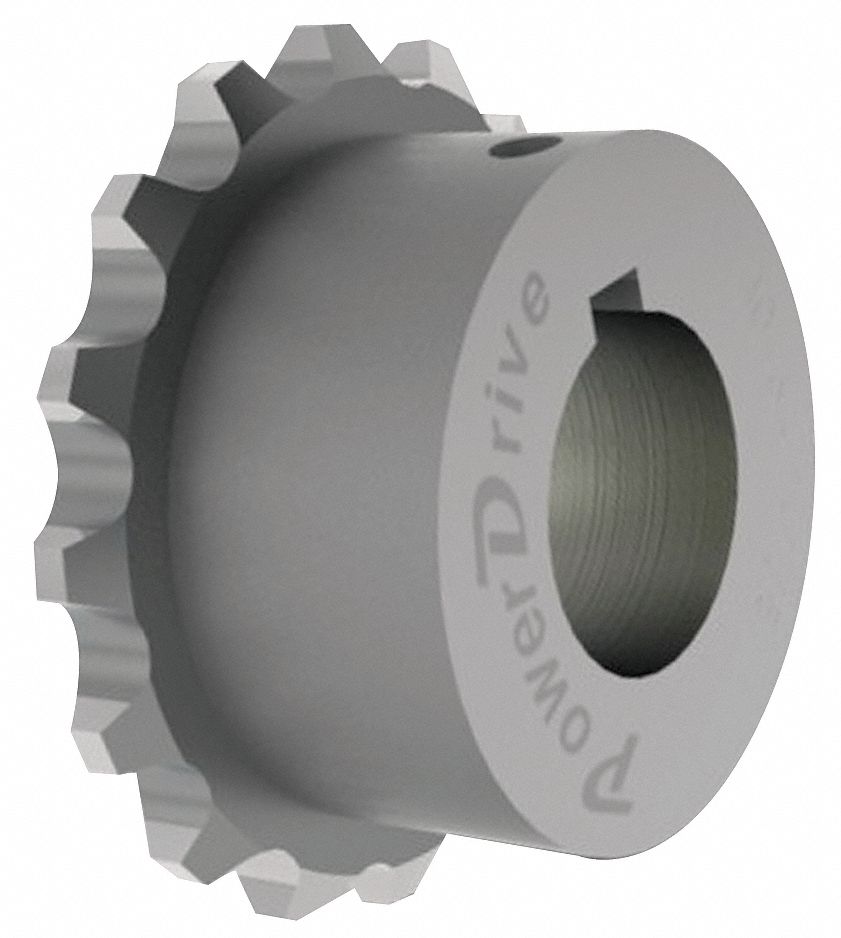

POWER DRIVE Chain Coupling Sprocket, Bore 1 1/4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Chain Coupling Sprocket, Bore Type Fixed, Bore Dia Fixed 1-1/4 In, Max Number of Teeth 16, Pitch 40, Outside Dia 3.000 In, Width 0.8750 In, Max Parallel Misalignment 0.005 In, Angular Misalignment Tolerance 9 Degree (10T-19T), 1/2 Degree (20T-24T), End Float Tolerance 0.060 In, Temp Range -25 to 150 Degrees F, HP Rating @ 100 RPM 0.90, Material Steel, Keyway 0.250 x 0.125, Setscrew, For Use With 6AGP9, 6AGR1

Grainger Item #	6AGR3
Price (ea.)	$30.45
Brand	POWER DRIVE
Mfr. Model #	C4016X 1 1/4
UNSPSC #	31163002
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.7
Availability	Typically in Stock
Catalog Page No.	181
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Chain Coupling Sprocket
Bore Type		Fixed
Bore Dia. (In.)		1-1/4
Max. Number of Teeth		16
Pitch		40
Outside Dia. (In.)		3.000
Width (In.)		0.8750
Max. Parallel Misalignment (In.)		0.0050
Angular Misalignment Tolerance		9 Degree (10T-19T), 1/2 Degree (20T-24T)
End Float Tolerance (In.)		0.060
Temp. Range (F)		-25 Degrees - 150 Degrees
HP Rating @ 100 RPM		0.90
Material		Steel
Keyway		0.250 x 0.125
Setscrew		Yes
For Use With		Mfr. No. AL40, AL60
