HVAC and Refrigeration
>
Blowers
>
Corrosion-Resistant Blowers

460 V, HP 3

| Write a Review
| Read all Reviews
| Read all Ask & Answer

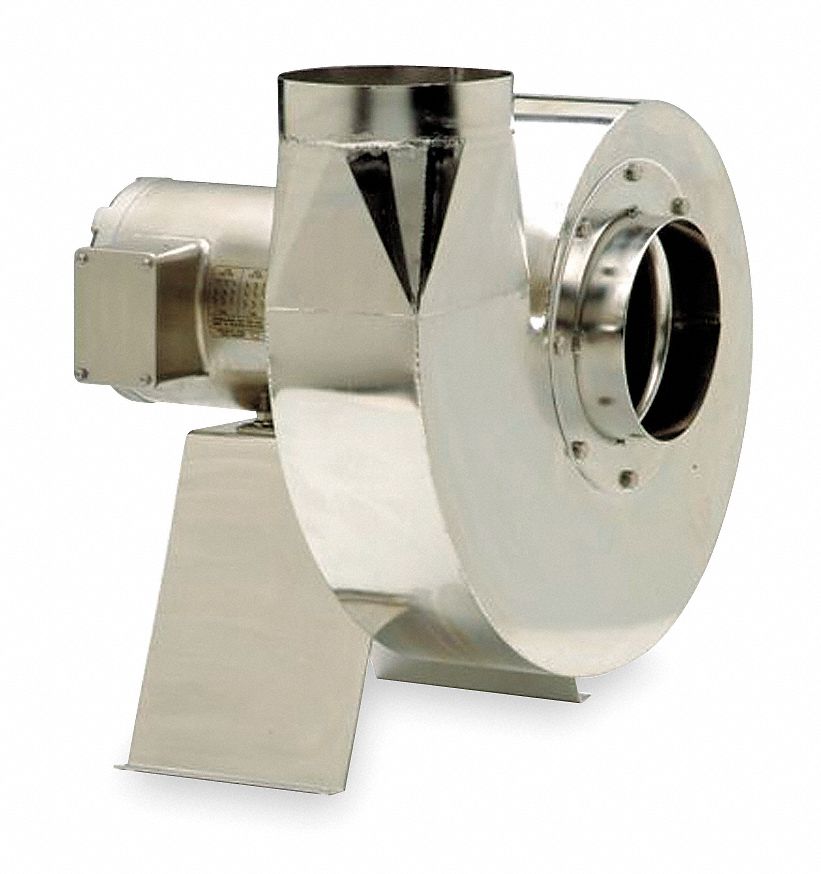

Blower, Direct Drive Backward Incline, Wheel Dia 13.5 In, CFM @ 0.250-In SP 2750, CFM @ 0.500-In SP 2700, CFM @ 0.750-In SP 2600, Max Inlet Temp 200 Deg F, Voltage 230/460, 60 Hz, 3 Phase, Full Load Amps 7.2/3.6, Motor HP 3, Height 30.25 In, Width 24 In, Depth 19.25 In, Inlet Dia 12 In, Outlet Dia 12 In, Housing Material 316 Stainless Steel, Includes Motor Mounting Base

Grainger Item #	3MRA3
Price (ea.)	$5,544.00
Brand	PLASTEC
Mfr. Model #	PSS35BIST2PPE
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	100.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	4525
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Blower
Type		Direct Drive Backward Incline
Wheel Dia. (In.)		13.50
Wheel Width (In.)		13.50
CFM @ 0.200-In. SP		#
CFM @ 0.250-In. SP		2750
CFM @ 0.500-In. SP		2700
CFM @ 0.750-In. SP		2600
CFM @ 1.000-In. SP		2550
CFM @ 1.250-In. SP		2525
CFM @ 1.500-In. SP		2500
CFM @ 2.000-In. SP		2400
CFM @ 2.500-In. SP		2300
CFM @ 3.000-In. SP		2200
CFM @ 3.500-In. SP		2025
CFM @ 4.000-In. SP		1900
Max. Inlet Temp. (Deg. F)		200
Max. Ambient Temp. (F)		102
Voltage		230/460
Hz		60
Phase		3
Full Load Amps		7.2/3.6
Motor HP		3
Motor RPM		3450
Motor Type		Premium Efficiency, Three Phase
Motor Enclosure		Totally Enclosed Fan Cooled
Motor Frame		145 TC
Bearing Type		Ball
Shaft Dia. (In.)		7/8
Height (In.)		30.25
Width (In.)		24
Depth (In.)		19.25
Inlet Dia. (In.)		12
Outlet Dia. (In.)		12.00
Wheel Type		Backward Incline
Wheel Material		316 Stainless Steel
Blower RPM		3450
Rotation		CCW
Housing Material		Electro Polished 316 Stainless Steel
Agency Compliance		Motors are UL Listed and CSA Certified
Applications, Comments		Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals
Includes		Motor Mounting Base
