HVAC and Refrigeration
>
Blowers
>
Corrosion-Resistant Blowers

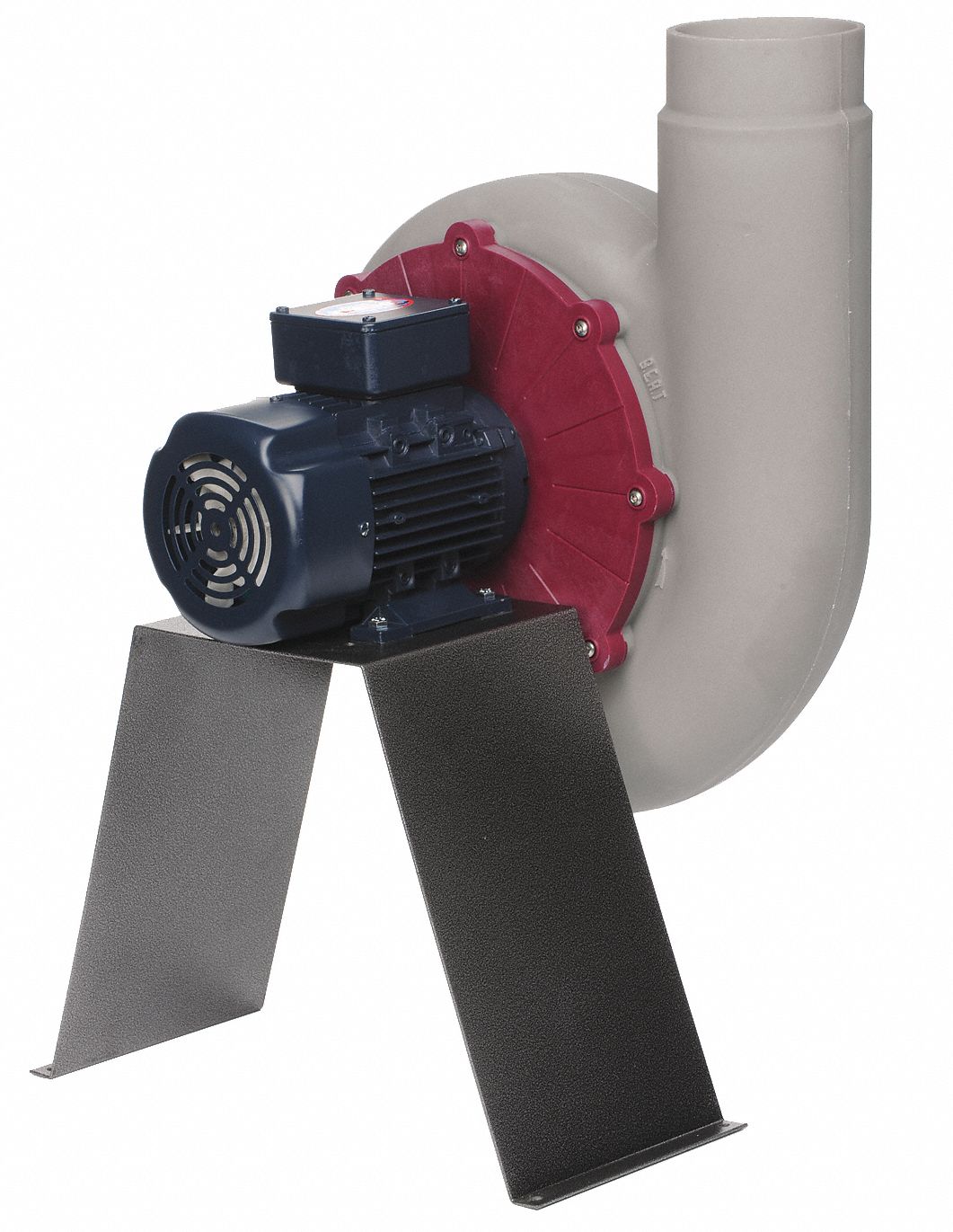

PLASTEC Blower, D/D, 230/460V, 1/2HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Blower, Direct Drive Forward Curve, Wheel Dia. (In.) 9.75, Wheel Width (In.) 3.50, 69.1 dBA @ 5 Feet, Max. Inlet Temp. (Deg. F) 140, Max. Ambient Temp. (F) 102, Voltage 230/460, 50/60 Hz, 3 Phase, Full Load Amps 1.8/0.90, Motor HP 1/2, Motor RPM 1725, Motor Type General Purpose, Motor Enclosure Totally Enclosed Fan Cooled, Motor Frame 56YZ, Bearing Type Ball Bearing, Shaft Dia. (In.) 19 mm, Height (In.) 19.52, Width (In.) 16.53, Depth (In.) 19.05, Inlet Dia. (In.) 4.53, Outlet Dia. (In.) 4.53

Grainger Item #	13L126
Price (ea.)	$1,840.00
Brand	PLASTEC
Mfr. Model #	STORM14ST4P
UNSPSC #	40101601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	35.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Blower
Type		Direct Drive Forward Curve
Wheel Dia. (In.)		9.75
Wheel Width (In.)		3.50
CFM @ 1.500-In. SP		400
CFM @ 2.000-In. SP		125
dBA @ 5 Feet		69.1
Max. Inlet Temp. (Deg. F)		140
Max. Ambient Temp. (F)		102
Voltage		230/460
Hz		50/60
Phase		3
Full Load Amps		1.8/0.90
Motor HP		1/2
Motor RPM		1725
Motor Type		General Purpose
Motor Enclosure		Totally Enclosed Fan Cooled
Motor Frame		56YZ
Bearing Type		Ball Bearing
Shaft Dia. (In.)		19 mm
Height (In.)		19.52
Width (In.)		16.53
Depth (In.)		19.05
Inlet Dia. (In.)		4.53
Outlet Dia. (In.)		4.53
Wheel Type		Polypropylene
Wheel Material		Polypropylene
Blower RPM		1725
Rotation		CCW
Housing Material		Polypropylene
Housing Finish		Polypropylene
Applications, Comments		Designed to Exhaust Fumes from Highly Corrosive Environments Such as Laboratories, Chemical Plants and Hospitals
Includes		Metal Stand
