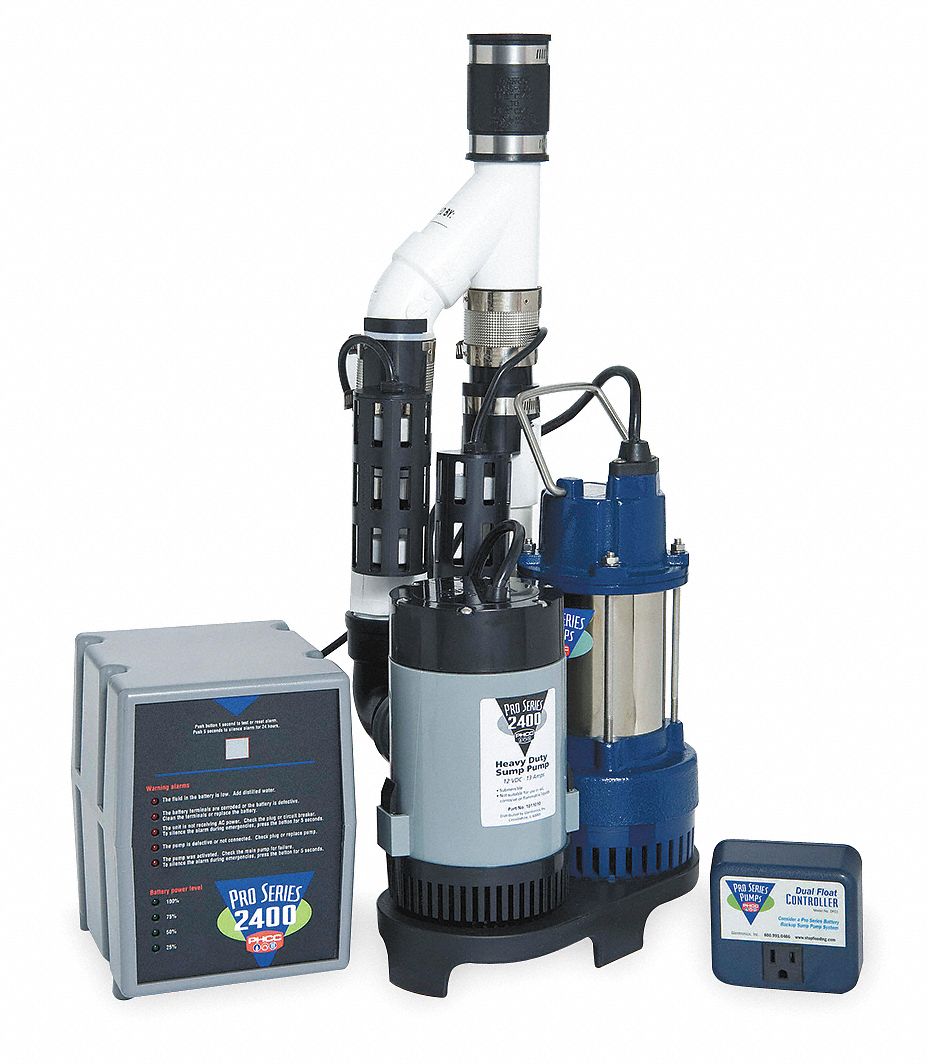

PHCC PRO SERIES Sump/Battery Backup System, 9 Amps Backup

Sump/Battery Back-Up Combination System, 1/3 HP, Discharge NPT (In.) 1-1/2, 115 Voltage, 12VDC Voltage - Back-Up, 4 Amps, 9 Amps - Back-Up, Switch Type Caged Automatic Dual Float, 12VDC Battery Charger 13 Amps, Max. Flow (GPH) 3900, Max. Flow (GPH) - Back-Up 4000, Max. Head (Ft.) 17, Max. Head (Ft.) - Back-Up 17, Max. Dia. Solids (In.) 7/8, Max. Dia. Solids (In.) - Back-Up 1/8, GPH of Water @ 0 Ft. of Head 3900 (Primary); 4000 (Secondary)
  • Grainger Item #4CUK2
    Price (ea.)$1,390.00
    BrandPHCC PRO SERIES
    Mfr. Model #PS-C33
    UNSPSC #40151512
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)50.93
    Availability Typically in Stock
    Catalog Page No.4040
    Country of Origin
    (Country of Origin is subject to change.)
    Not Available
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemSump/Battery Back-Up Combination System
HP1/3
Discharge NPT (In.)1-1/2
Voltage115
Voltage - Back-Up12VDC
Amps4
Amps - Back-Up9
Switch TypeCaged Automatic Dual Float
12VDC Battery Charger13 Amps
Max. Flow (GPH)3900
Max. Flow (GPH) - Back-Up4000
Max. Head (Ft.)17
Max. Head (Ft.) - Back-Up17
Max. Dia. Solids (In.)7/8
Max. Dia. Solids (In.) - Back-Up1/8
GPH of Water @ 0 Ft. of Head3900 (Primary); 4000 (Secondary)
GPH of Water @ 5 Ft. of Head3540 (Primary); 3100 (Secondary)
GPH of Water @ 10 Ft. of Head3000 (Primary); 2400 (Secondary)
GPH of Water @ 15 Ft. of Head2520 (Primary) 600 (Secondary)
Max. Temp. (F)104
Min. Sump Pit Dia. (In.)11
On Point (In.)9 1/2 (Primary); 11 1/2 (Secondary)
Off Point (In.)10 seconds after the float drops which normally empties the pit (Primary) 30 Seconds (Secondary)
Base MaterialNon-corrosive Polypro. Strainer (Primary) ABS (Secondary)
HousingCast Iron Stainless Steel (Primary); ABS (Secondary)
Top MaterialCast Iron (Primary); ABS (Secondary)
Impeller MaterialPolycarbonite
Motor TypePSC (Primary); Brush type DC (Secondary)
DutyContinuous (Primary); Intermittent (Secondary)
Shaft SealDual Carbon Ceramic (Primary); Rulon (Secondary)
Mechanical SealBuna
Shaft MaterialStainless Steel
Length (In.)11
Width (In.)10
Height (In.)22-1/4
Cord Length (Ft.)10 (Primary); 7 1/2 (Secondary)
For Use WithMfr. No. B-2200
StandardsUL (Primary)
Includes2 Pumps, Monitoring Controller, Battery Fill Bottle, Battery Box


Optional Accessories

More Accessories

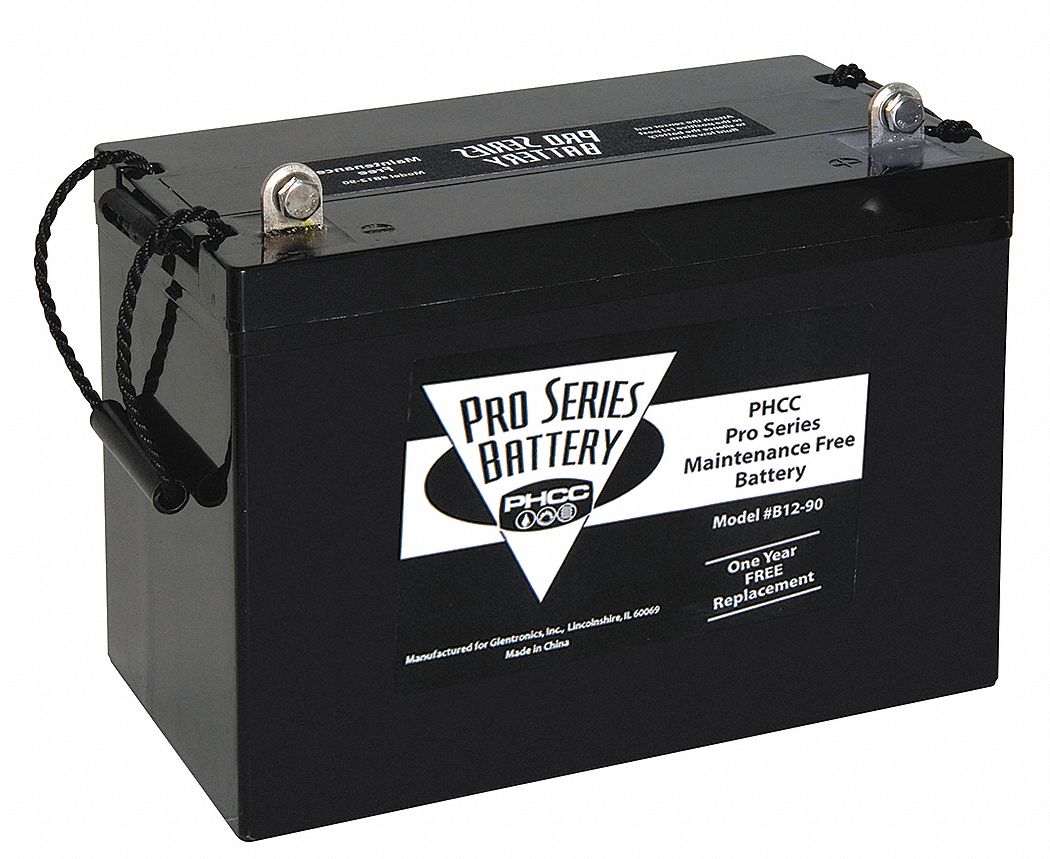

Brand:

PHCC PRO SERIES

Grainger Item #:

4AYX8

Price (ea.):

$359.00
