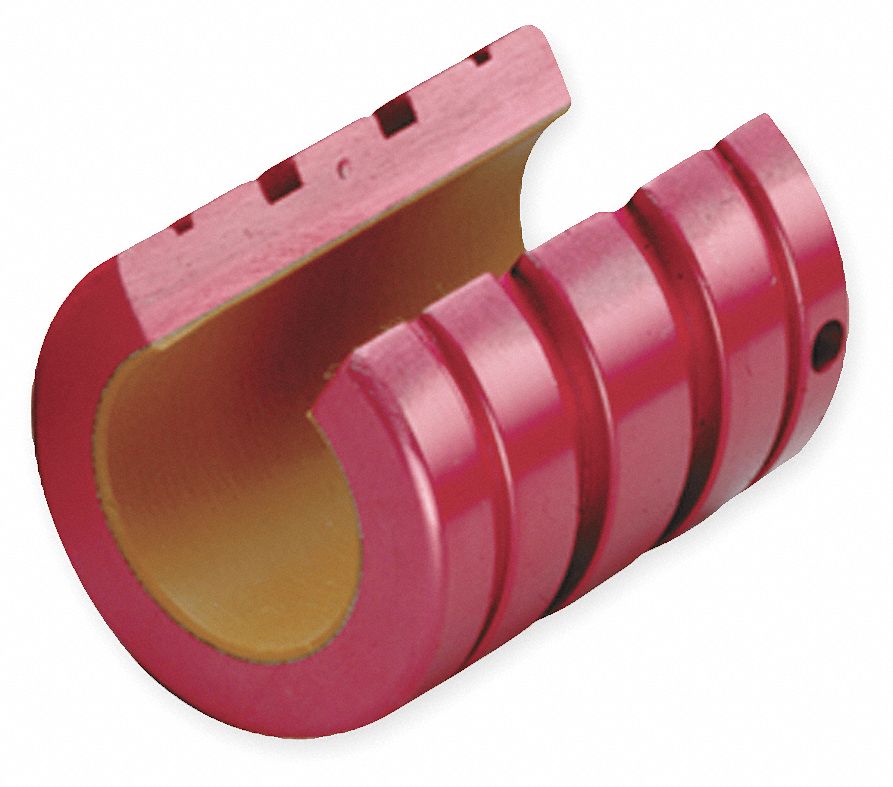

PBC Linear Standard Linear Bearing, Bore 1/4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Standard Linear Bearing, Open, Bore Dia 1/4 In, Inside Dia Tolerance +/- .001, Outside Dia 1/2 In, Outside Dia Tolerance +/- .001, Slot Width 0.188 In, Slot Angle (Degrees) 60, Retention Hole Dia 0.094 In, Retention Hole Location 0.375 In, Between Grooves 0.437 In, Length 0.750 In, Static Load Capacity 600 Lb, Max Pv 20, 000, Temp Range 0 - 400 F, Anodized Aluminum Material, For Use With Support and Feather Rails

Grainger Item #	2CPE9
Price (ea.)	$25.50
Brand	PBC Linear
Mfr. Model #	FLN04
UNSPSC #	31171506
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.3
Availability	Typically in Stock
Catalog Page No.	230
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Standard Linear Bearing
Type		Open
Bore Dia.		0.250"
Inside Dia. Tolerance		+/- .001
Outside Dia.		0.5000"
Outside Dia. Tolerance		+/- .001
Slot Width (In.)		0.188
Slot Angle (Degrees)		60
Retention Hole Location		0.375
Length (In.)		0.750
Static Load Capacity (Lb.)		600
Max. Pv		20,000
Accelerated Speed		14 Feet/Second
Steady State Speed		5 Feet/Second
Temp. Range (F)		0 - 400
Self-Alignment		Yes
Material		Anodized Aluminum
Retention Hole Dia. (In.)		0.094
Between Grooves (In.)		0.437
For Use With		Support and Feather Rails
