PATTERSON Air Circulator, 34 In, 11, 050 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 34 In., Mobile, Non-Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 11, 050, CFM Low 9450, Air Velocity (FPM) @ 20 Ft. 1000/850/800, Motor HP 1/2, Motor RPM 1140/1075/1015, Operating Amps 5.6/4.8/4.6, Mounting Location Floor, Fan RPM 1725, Industrial, Assembled Assembled, CFM Medium 10, 100Outside Dia. 43-1/2 In., Includes Lifting Handle, 12 ft. Cordset with Plug, Single Speed Rotary Switch, OSHA Complying Guards, 6 In. Diameter Semi Pneumatic Casters

Grainger Item #	13F724
Price (ea.)	$1,398.00
Brand	PATTERSON
Mfr. Model #	F34A-F-SF
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	105.05
Availability	Typically in Stock
Catalog Page No.	4437
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

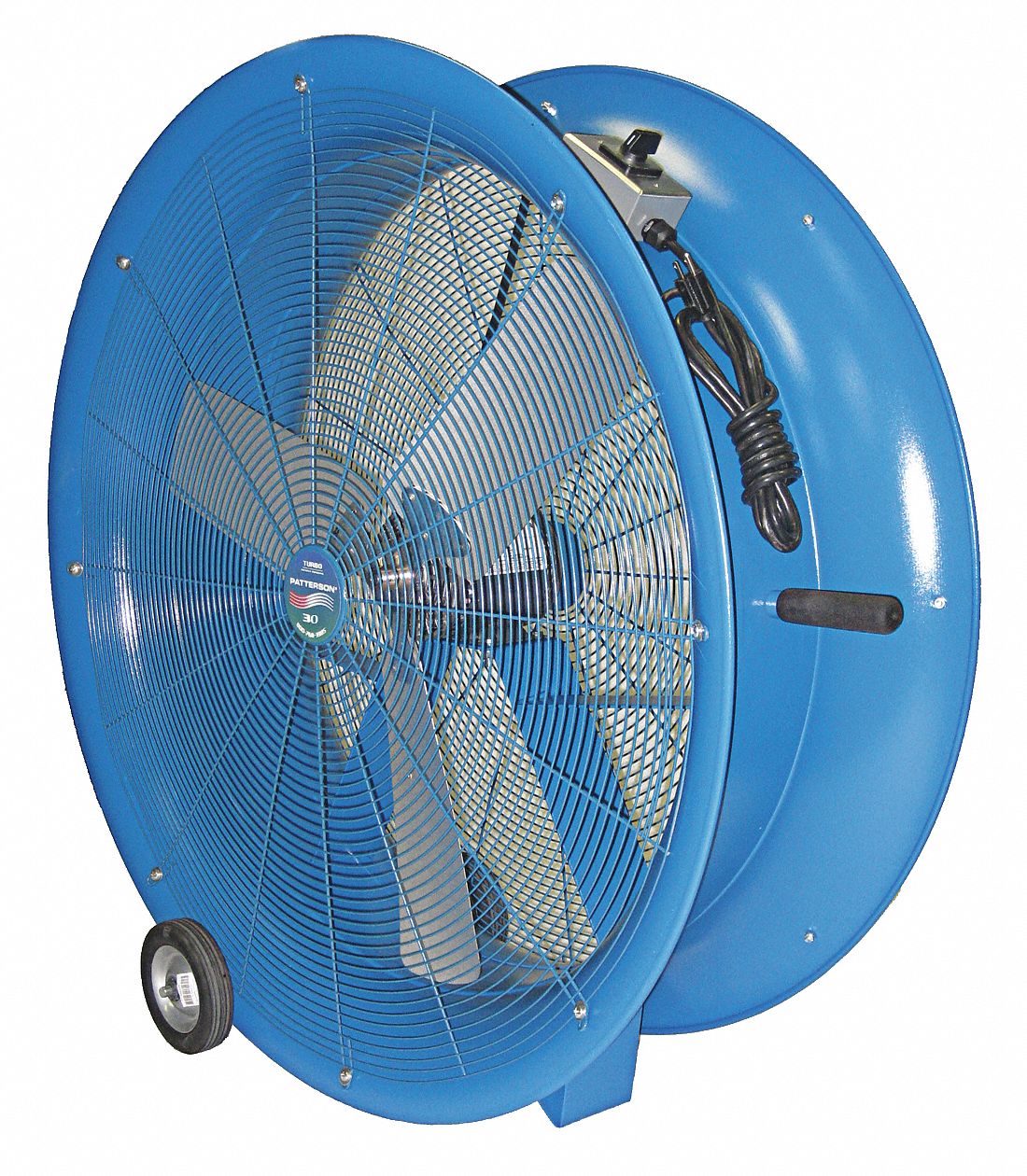

Air Circulator, 34 In, 11, 050 cfm, 115V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Circulator
Blade Dia.		34"
Mobile/Stationary		Mobile
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		11,050
CFM Low		9450
Air Velocity (FPM) @ 20 Ft.		1000/850/800
Motor HP		1/2
Motor RPM		1140/1075/1015
Operating Amps		5.6/4.8/4.6
Mounting Location		Floor
Fan RPM		1725
Environmental Applications		Industrial
Assembled		Assembled
CFM Medium		10,100
Air Velocity (FPM) @ 40 Ft		625/575/475
Air Velocity (FPM) @ 60 Ft.		450/375/300
Sound Level		85/84/81.5
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		720
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Open Dripproof
Motor Insulation		Class F
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		43-1/2"
Height		43-1/2"
Width		43-1/2"
Max. Depth		14-3/4"
Cord Length		12 ft.
Number of Blades		3
Blade Material		Galvalume
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Powder Coated
Application		People Cooling, Spot Cooling, Process Cooling
Standards		CSA, UL, OSHA
Includes		Lifting Handle, 12 ft. Cordset with Plug, Single Speed Rotary Switch, OSHA Complying Guards, 6" Diameter Semi Pneumatic Casters
