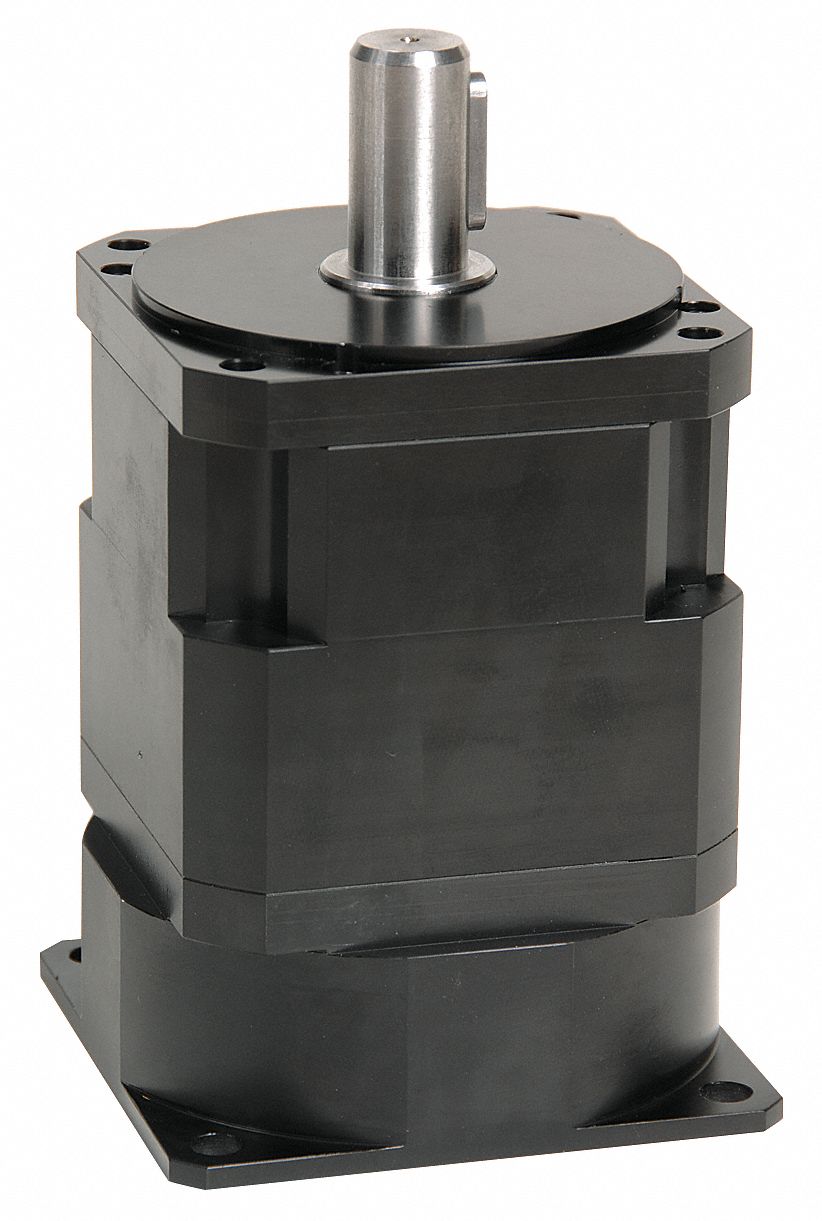

PARKER Speed Reducer, RPM 345, Ratio 5:1

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Speed Reducer, Planetary, Shaft Orientation Parallel, Input RPM 1725, Nominal Output RPM 345, Bore Dia. 1-1/8 In., NEMA Frame 182/184TC, Overhung Load 2000 Lb., Nominal Ratio 5:1, Max. Torque 3250 In.-Lbs., Reversible Rotation, Output Shaft Dia. 1.969 In., Overall Length 12.34 In.

Grainger Item #	6JKG0
Price (ea.)	$4,617.00
Brand	PARKER
Mfr. Model #	PGH180-005-017
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	70.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Speed Reducer
Type		Planetary
Shaft Orientation		Parallel
Input RPM		1725
Nominal Output RPM		345
NEMA/IEC Frame		182/184TC
Overhung Load (Lb.)		2000
Nominal Ratio		5:1
Max. Torque (In.-Lbs.)		3250
Output Torque @ 1/40 HP (In.-Lb.)		5
Output Torque @ 1/20 HP (In.-Lb.)		9
Output Torque @ 1/12 HP (In.-Lb.)		15
Output Torque @ 1/10 HP (In.-Lb.)		18
Output Torque @ 1/8 HP (In.-Lb.)		23
Output Torque @ 1/6 HP (In.-Lb.)		30
Output Torque @ 1/4 HP (In.-Lb.)		46
Output Torque @ 1/3 HP (In.-Lb.)		61
Output Torque @ 1/2 HP (In.-Lb.)		91
Output Torque @ 3/4 HP (In.-Lb.)		137
Output Torque @ 1 HP (In.-Lb.)		183
Output Torque @ 1.5 HP (In.-Lb.)		274
Output Torque @ 2 HP (In.-Lb.)		365
Output Torque @ 3 HP (In.-Lb.)		548
Output Torque @ 4 HP (In.-Lb.)		731
Output Torque @ 5 HP (In.-Lb.)		913
Output Torque @ 7.5 HP (In.-Lb.)		1370
Output Torque @ 10 HP (In.-Lb.)		1827
Rotation		Reversible
Mounting		All Positions
Lubrication		Grease
Finish		Anodize
Output Shaft Dia. (In.)		1.969
Overall Length (In.)		12.34
