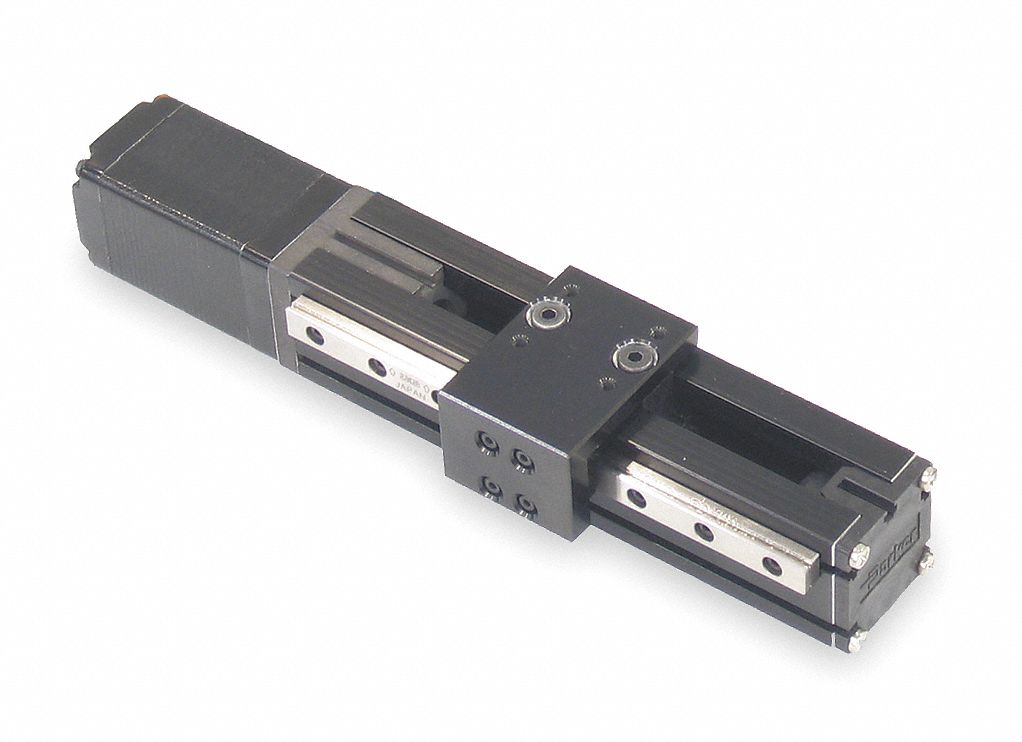

PARKER Electric Positioner, 48 VDC, 300 mm Stroke

Miniature Electric Positioner, LP28, Lead Screw Drive Type, Motor Voltage 48 VDC, 0.67 Full Load Amps, Max Load 11 lb, Max Thrust 44 N, Max Speed 45 mm/Sec, Max Stroke Length 300 mm, Carriage Width 41.5 mm, Carriage Length 45 mm, Base Width 28 mm, Overall Height 39.3 mm, Slide Table Length 385 mm, Available Stroke 300 mm, Includes Coupling, Motor Adapter, and Motor
  • Grainger Item #2ZDA2
    Price (ea.)$1,119.00
    BrandPARKER
    Mfr. Model #LP28300D03G21M1321
    UNSPSC #26111506
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)3.0
    Availability Item ships within 21 business days from supplier
    Catalog Page No.249
    Country of Origin
    (Country of Origin is subject to change.)
    USA
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
ItemMiniature Electric Positioner
TypeLP28
Drive TypeLead Screw
Guide TypeSquare Rail
Motor Voltage48VDC
Full Load Amps0.67
Max. Load11
Max. Thrust (N)44
Max. Roll Moment Mx (In.-Lbs.)4.4
Max. Roll Moment Mx (N-mm)0.5
Max. Pitch/Yaw Ma (In.-Lbs.)4.4
Max. Pitch/Yaw Ma (N-mm)0.5
Max. Speed (In/Sec)2
Max. Speed (mm/Sec)45
Max. Stroke Length (In.)11.81
Max. Stroke Length (mm)300
Repeatability+/-50um
Repeatability (mm)+/-0.050
Carriage Height (In.)1.24
Carriage Height (mm)31.5
Carriage Width (In.)1.63
Carriage Width (mm)41.5
Carriage Length (In.)1.77
Carriage Length (mm)45
Carriage Hole Size (mm)M3x.5
Carriage Mounting Thread Spacing - Length (mm)35
Carriage Mounting Thread Spacing - Width (mm)23
Screw Size (mm)M3 x 0.5
Base Width (In.)1.102
Base Width (mm)28
Overall Height (In.)1.547
Overall Height (mm)39.3
Slide Table Length (mm)385
Available Stroke (mm)300
Dynamic Load Capacity (Lb.)11
Temp. Range (F)32-120
Carriage MaterialAnnodized Aluminum
IncludesCoupling, Motor Adapter, and Motor

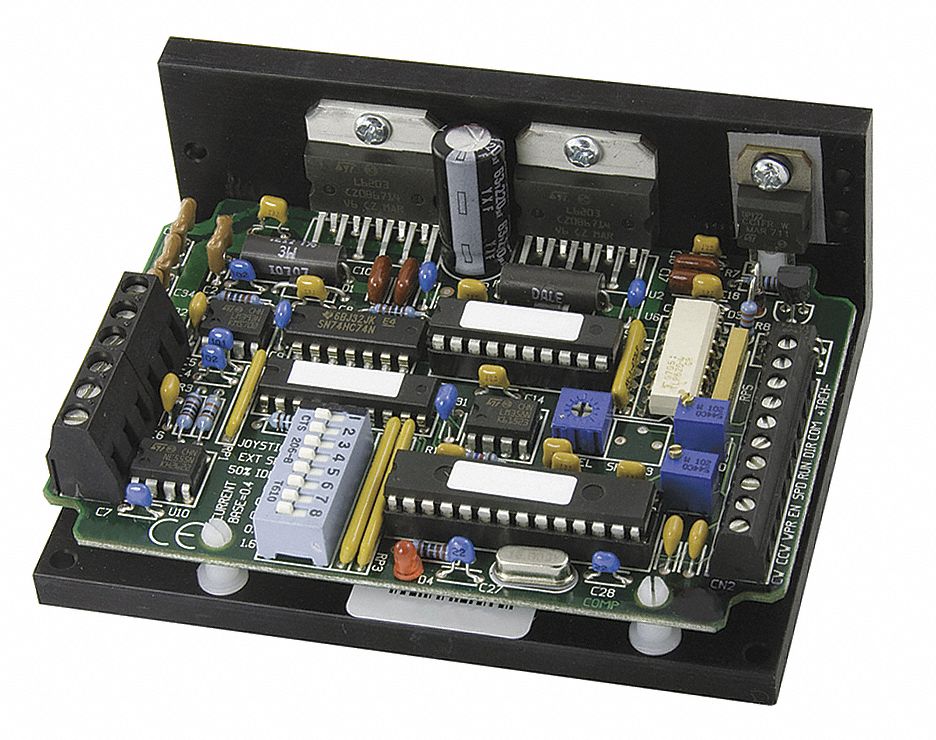

Required Accessories

More Accessories

Brand:

PARKER

Grainger Item #:

4GXU3

Price (ea.):

$458.00
