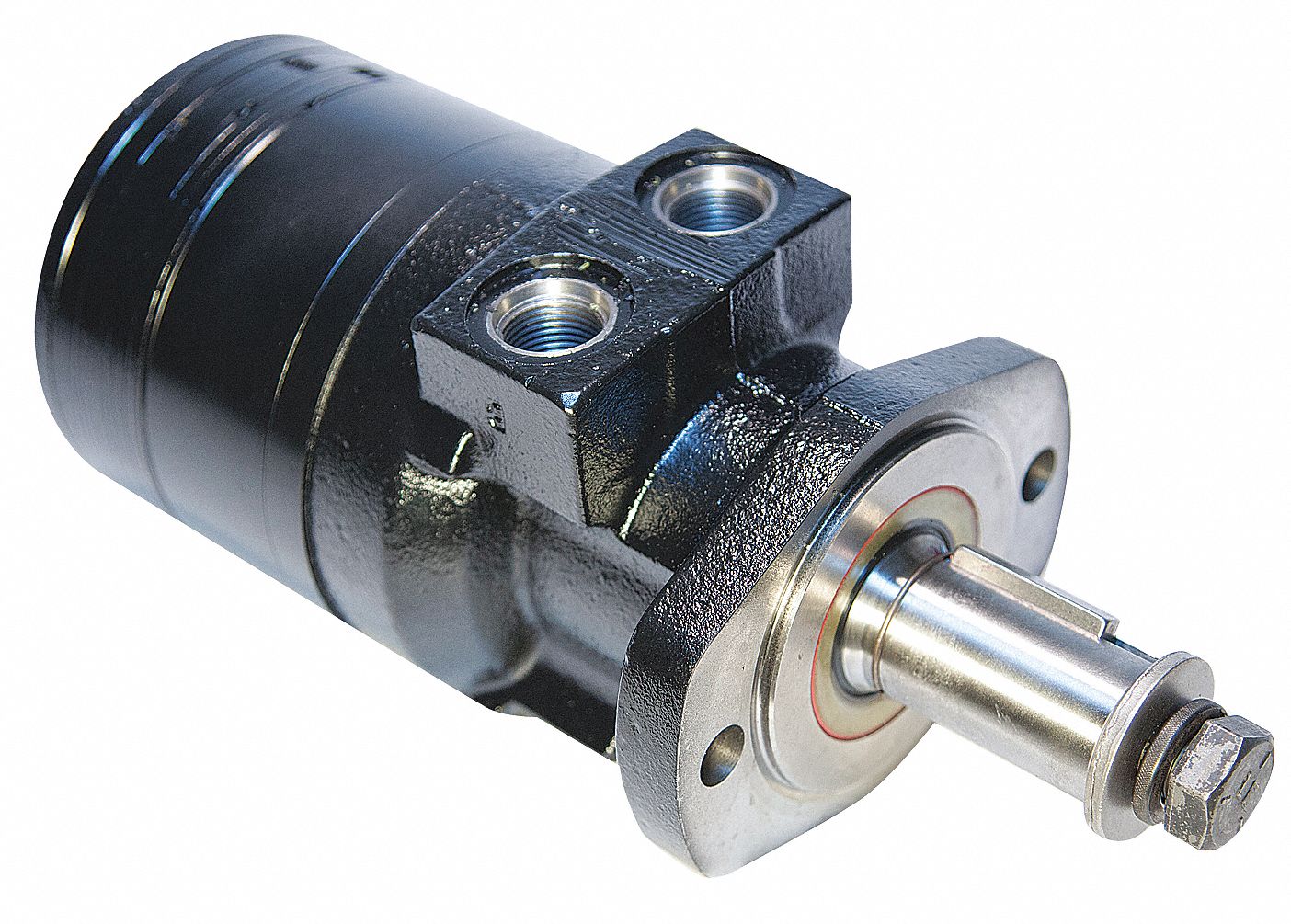

PARKER Hydraulic Motor, 24.7 Cu. In./Rev.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hydraulic Motor, 24.7 Displacement (Cu. In./Rev.), Pressure Rating (PSI) 2500, Shaft Type Keyed, 7/8 - 14 SAE Port Thread, SAE O-Ring Port Type, Min. Oil Viscosity 50 SUS, Max. Oil Temp. (F) 180, Flange Mount SAE A 2-Bolt, Max. RPM 232, Shaft Dia. (In.) 1-1/4, Shaft Length (In.) 2.37, Length (In.) 8.86, Width (In.) 5.25, Height (In.) 5.03

Grainger Item #	30E855
Price (ea.)	$1,632.00
Brand	PARKER
Mfr. Model #	TG0405AS030AAAA
UNSPSC #	26101613
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	37.5
Availability	Typically in Stock
Catalog Page No.	3866
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hydraulic Motor
Displacement (Cu. In./Rev.)		24.7
Pressure Rating (PSI)		2500
Shaft Type		Keyed
Port Thread		7/8 - 14 SAE
Port Type		SAE O-Ring
Min. Oil Viscosity		50 SUS
Max. Oil Temp. (F)		180
Flange Mount		SAE A 2-Bolt
Max. RPM		232
Shaft Dia. (In.)		1-1/4
Shaft Length (In.)		2.37
Length (In.)		8.86
Width (In.)		5.25
Height (In.)		5.03
Series		TG
