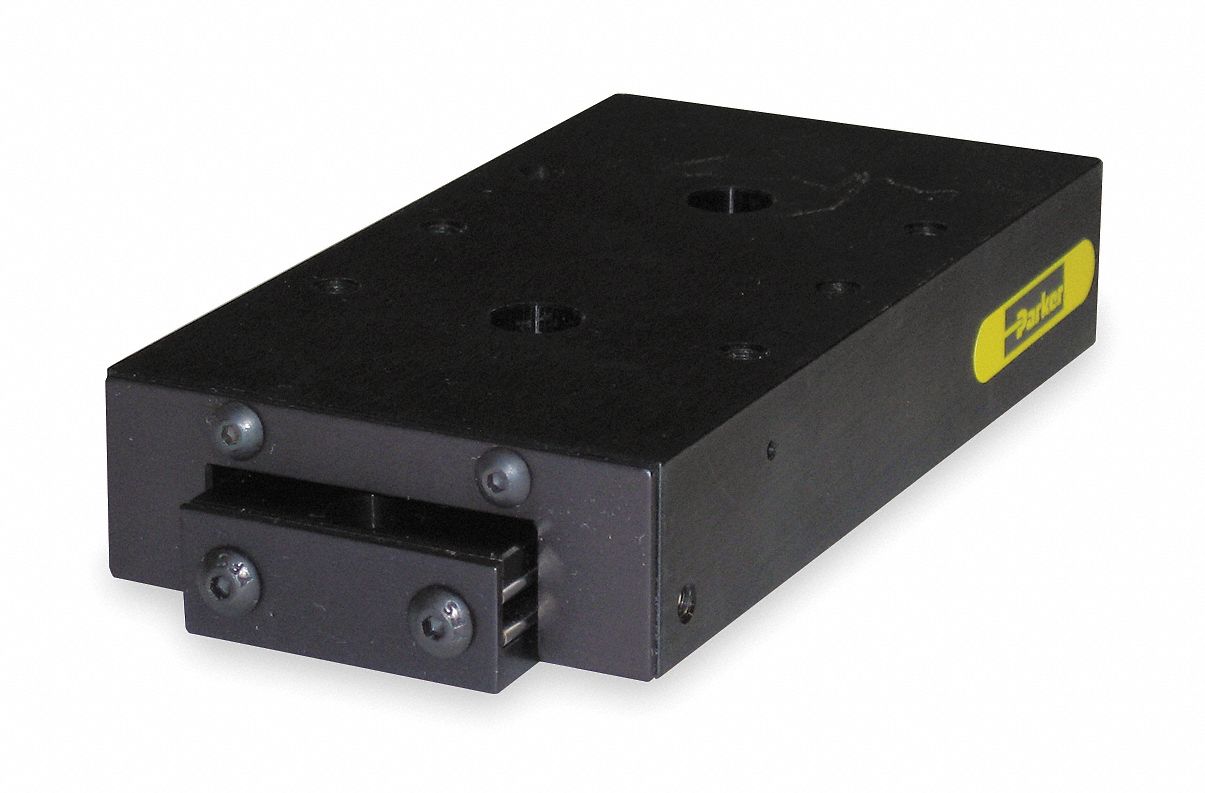

PARKER Slide, 0.94 In W, 1 In H, 12 In L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Extended Travel Slides, Base Width 0.9 In, Overall Height 1.0 In, Rail Height 0.7 In, Rail Length 12.0 In, Carriage Height 0.3 In, Carriage Width 2.6 In, Carriage Length 12.0 In, Mounting Hole Size (In/mm) 1/4, #10-32 Thread Size, Travel Length 9.0 In, Static Load Capacity 192 Lb, Dynamic Load Capacity 192 Lb, Max Speed 40 In/Sec, 440C Stainless Steel Rail Material, Ground Aluminum Carriage Material, 440C Stainless Steel Roller

Grainger Item #	2ZDE2
Price (ea.)	$498.00
Brand	PARKER
Mfr. Model #	4609
UNSPSC #	23153030
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	249
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Extended Travel Slides
Base Width (In.)		0.9
Base Width (mm)		23.9
Overall Height (In.)		1.0
Overall Height (mm)		25.4
Rail Height (In.)		0.7
Rail Height (mm)		17.5
Rail Length (In.)		12.0
Rail Length (mm)		304.8
Carriage Height (In.)		0.3
Carriage Height (mm)		7.9
Carriage Width (In.)		2.6
Carriage Width (mm)		66.5
Carriage Length (In.)		12.0
Carriage Length (mm)		304.8
Number of Mounting Holes		12
Hole Size		1/4
Thread Size		#10-32
Travel Length (In.)		9.0
Static Load Capacity (Lb.)		192
Dynamic Load Capacity (Lb.)		192
Max. Speed (In/Sec)		40
Rail Material		440C Stainless Steel
Carriage Material		Ground Aluminum
Roller		440C Stainless Steel
