Power Transmission
>
Linear Motion
>
Linear Guide Rail and Slide Assemblies

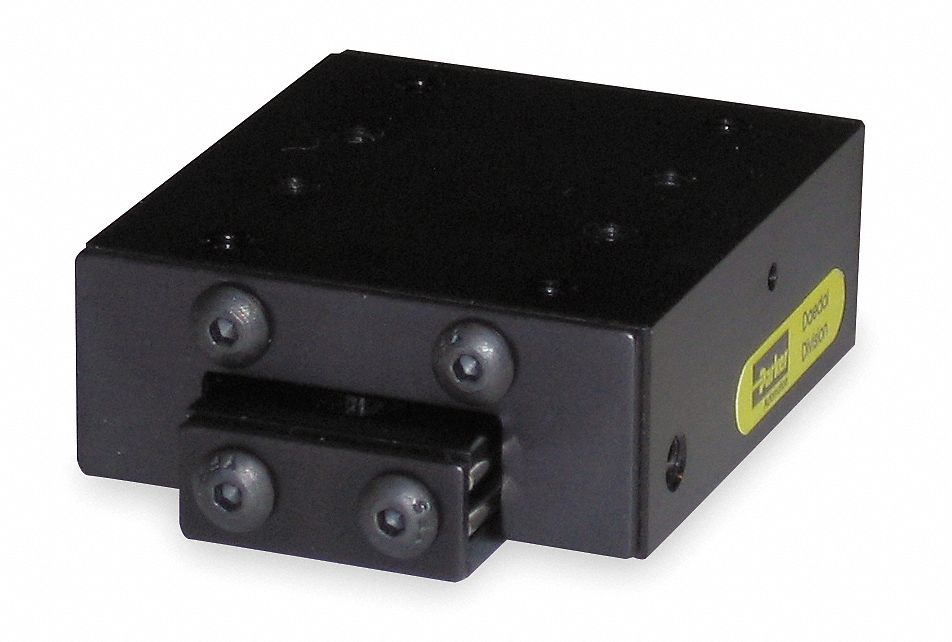

PARKER Slide, 0.88 In W, 0.75 In H, 3 In L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Extended Travel Slides, Base Width 0.9 In, Overall Height 0.8 In, Rail Height 0.4 In, Rail Length 3.0 In, Carriage Height 0.4 In, Carriage Width 1.8 In, Carriage Length 3.0 In, Mounting Hole Size (In/mm) #6, #6-32 Thread Size, Travel Length 2.0 In, Static Load Capacity 40 Lb, Dynamic Load Capacity 40 Lb, Max Speed 40 In/Sec, 440C Stainless Steel Rail Material, Ground Aluminum Carriage Material, 440C Stainless Steel Roller

Grainger Item #	2ZDD3
Price (ea.)	$177.00
Brand	PARKER
Mfr. Model #	4201
UNSPSC #	23153030
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	249
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Extended Travel Slides
Base Width (In.)		0.9
Base Width (mm)		22.4
Overall Height (In.)		0.8
Overall Height (mm)		19.1
Rail Height (In.)		0.4
Rail Height (mm)		10.2
Rail Length (In.)		3.0
Rail Length (mm)		76.2
Carriage Height (In.)		0.4
Carriage Height (mm)		8.9
Carriage Width (In.)		1.8
Carriage Width (mm)		44.5
Carriage Length (In.)		3.0
Carriage Length (mm)		76.2
Number of Mounting Holes		12
Hole Size		#6
Thread Size		#6-32
Travel Length (In.)		2.0
Static Load Capacity (Lb.)		40
Dynamic Load Capacity (Lb.)		40
Max. Speed (In/Sec)		40
Rail Material		440C Stainless Steel
Carriage Material		Ground Aluminum
Roller		440C Stainless Steel

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Item #	Description	Brand Mfr. Model #	Availability	Price
2ZDD4	Slide, 0.88 In W, 0.75 In H, 4 In L >More Details... Country of Origin: USA	PARKER 4301	Item ships within 11 business days from supplier	$193.25
