PALMGREN Rotary Slide Tilting Table, 10 In, X-Y 4

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rotary Slide Tilting Table, For Use With Drill Presses, Milling Machines, Grinders, Special Machines, For Accurate Set Up For Boring, Drilling, Reaming, Tapping, Grinding And Milling Operations, Capacity 10 In Diameter, Cast Iron, Cross Feed 4 In., Long Feed 4 In., 5/8 T-Slots, Travel Movement/Revolution 360 Degrees, Height 5 5/8 In., Includes 1 5/8 In Diameter Center Bore, 5/8 In x 1 In T-Slots, Graduations Of 3 Minute Readings On Vernier Dial, Rim Calibrated 1 Degree Increments, 40 To 1 Ratio

Grainger Item #	2XUU8
Price (ea.)	$1,408.00
Brand	PALMGREN
Mfr. Model #	34103
UNSPSC #	23152201
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	53.0
Availability	Typically in Stock
Catalog Page No.	973
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

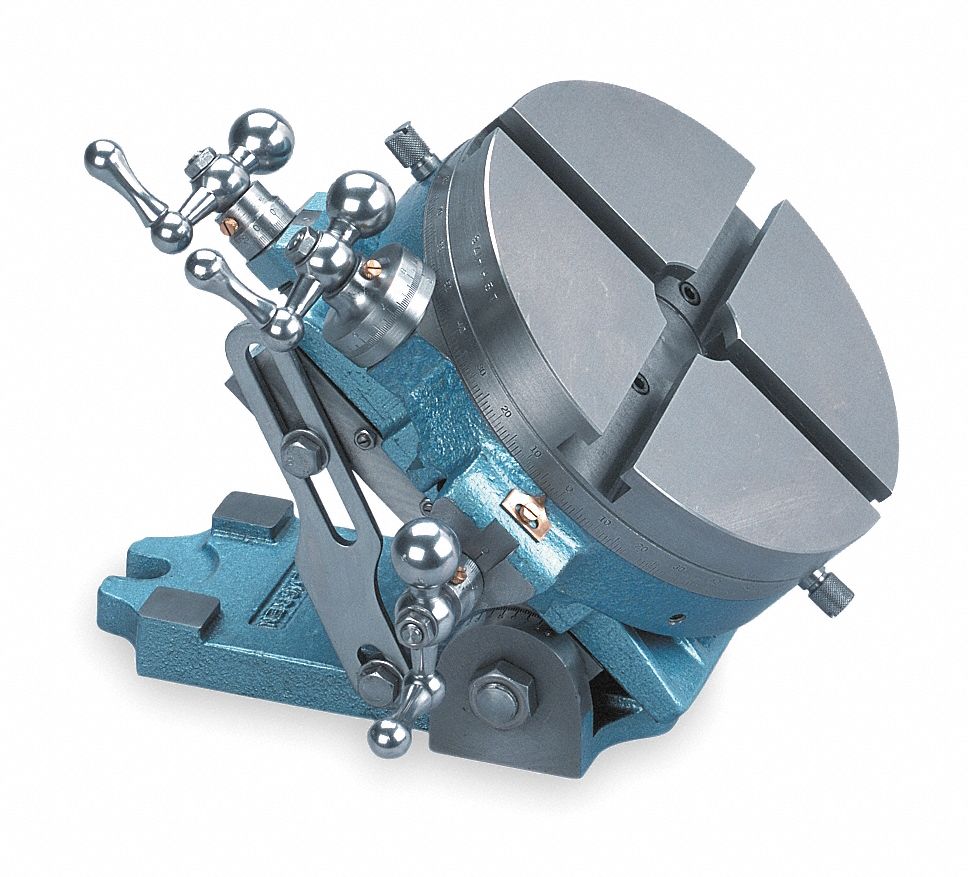

Rotary Slide Tilting Table, 10 In, X-Y 4

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Rotary Slide Tilting Table
T-Slots		5/8
Capacity		10" Diameter
Material		Cast Iron
For Use With		Drill Presses, Milling Machines, Grinders, Special Machines
Application		For Accurate Set Up For Boring, Drilling, Reaming, Tapping, Grinding And Milling Operations
Includes		1 5/8" Diameter Center Bore, 5/8" x 1" T-Slots, Graduations Of 3 Minute Readings On Vernier Dial, Rim Calibrated 1 Degree Increments, 40 To 1 Ratio
Cross Travel (In.)		4
Longitudinal Travel (In.)		4
Travel Movement/Revolution		360 Degrees
Height (In.)		5-5/8
