OPTIMUM Engine Lathe w/DRO, 14x40, 3HP, 3Phase

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Engine Lathe with DRO, 3 Motor HP, 3 Phase, 230 Voltage, 60 Hz, Spindle Taper 5MT, Number of Spindle Speeds 16, Tailstock Taper 3MT, Longitudinal Feed Rates 0.002-0.026, Overall Length 76 In., Overall Width 30 In., Overall Height 62 In., All Steel Helical Gears, Built and Tested to DIN 8606 Lathe Standards

Grainger Item #	5RAK3
Price (ea.)	$10,575.00
Brand	OPTIMUM
Mfr. Model #	D360x1000
UNSPSC #	23171606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1925.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	971
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $1,999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

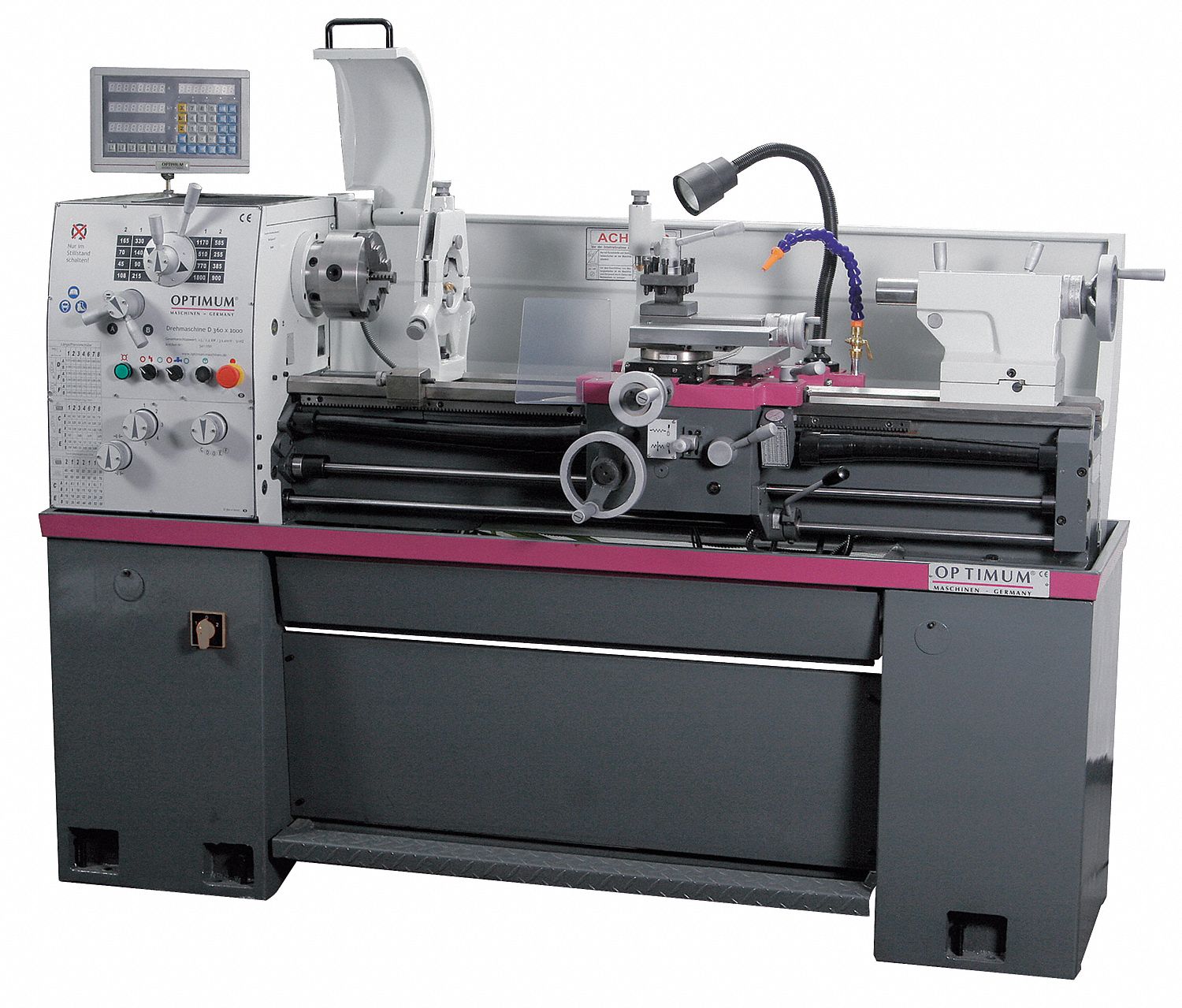

Item		Engine Lathe with DRO
Motor HP		3
Phase		3
Voltage		230
Hz		60
Swing Over Bed (In.)		14"
Distance Between Centers (In.)		40"
Swing Over Cross Slide (In.)		8-5/8"
Swing In Gap (In.)		20"
Gap Length (In.)		9-1/2"
Spindle Taper		5MT
Spindle Bore (In.)		1-1/2"
Number of Spindle Speeds		16
Spindle Speed (RPM)		45-1800
Bed Width (In.)		8"
Cross Travel (In.)		7"
Compound Travel (In.)		3-3/4"
Carriage Travel (In.)		37"
Tailstock Taper		3MT
Tailstock Travel (In.)		4-3/4"
Thread Range (In.)		4-112
Thread Range (mm)		0.45-7.5
Longitudinal Feed Rates		0.002-0.026
Overall Length		76"
Overall Width		30"
Overall Height		62"
Features		All Steel Helical Gears, Built and Tested to DIN 8606 Lathe Standards
Includes		Digital Readout, 3 and 4 Jaw Chuck, Splash Guard, Chuck and Toolpost Safety Guard, 4 Way Tool Post, Splash Guard, 2 3MT Dead Centers, Inch and Metric Gears for Threading, Steady Rest, Follower Rest, Work Light
