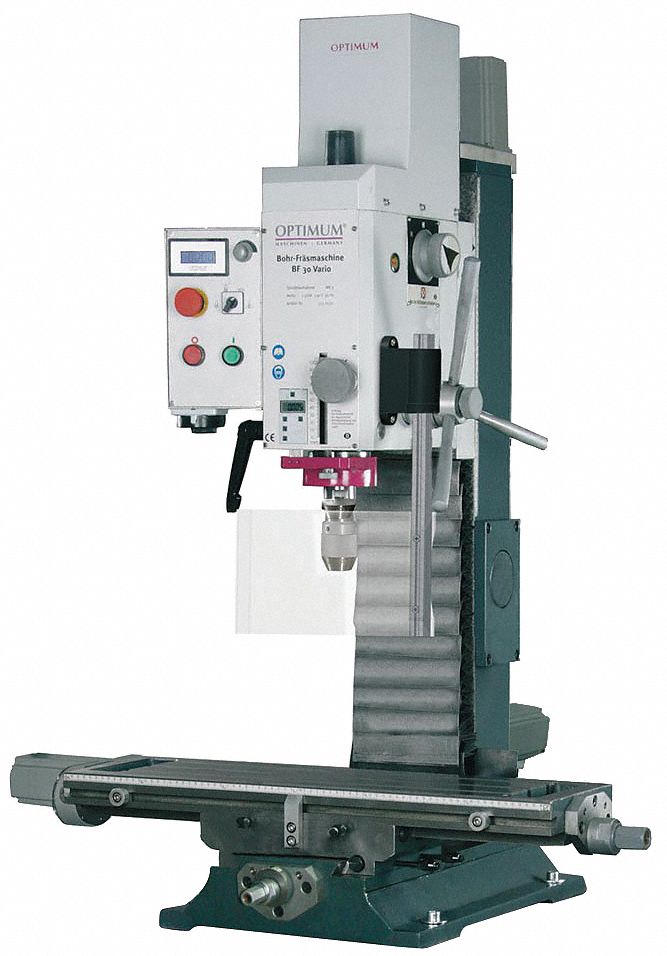

OPTIMUM CNC Gear Head Mill/Drill, 17 In, 1Hp, 115v

CNC Gear Head Mill/Drill, Motor HP 1.5, 1 Phase, 230, 10 Amps, 60 Hz, 1750 RPM, Spindle Taper R8, Spindle Speed (RPM )80-3100, Spindle Travel (In.) 3.5", Spindle to Table (In.) 17-11/16", 1/2" T-Slots, 3/4" Capacity, Features Brushless DC Motor, Variable Speed Inverter, Head Tilts Left and Right, Box Column with Dovetails Ways, Tapping Mode, Runs Manual or Automatic, Includes Safety Chuck Guard, Way Cover, Halogen Work Light, Step Motors, Ball Screws, Controller and Mach3 Software
  • Grainger Item #5MYT8
    Price (ea.)$11,480.00
    BrandOPTIMUM
    Mfr. Model #BF30CNC
    UNSPSC #27112703
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)729.0
    Availability Item ships within 6 business days from supplier
    Catalog Page No.970
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
ItemCNC Gear Head Mill/Drill
Swing17"
Motor HP1-1/2
Phase1
Voltage230
Hz60
RPM1750
Chuck SizeVaries
SpindleR8
Spindle TaperR8
Spindle Speed80 to 3100 rpm
Spindle Travel3.5"
Spindle to Table17-11/16"
Quill Dia.2-3/4"
Table Work Surface8 x 29-1/2"
T-Slots1/2"
Graduations0.001"
Capacity3/4"
FeaturesBrushless DC Motor, Variable Speed Inverter, Head Tilts Left and Right, Box Column with Dovetails Ways, Tapping Mode, Runs Manual or Automatic
IncludesSafety Chuck Guard, Way Cover, Halogen Work Light, Step Motors, Ball Screws, Controller and Mach3 Software


Optional Accessories

More Accessories

Brand:

OPTIMUM

Grainger Item #:

5MYU0

Price (ea.):

$3,330.00
