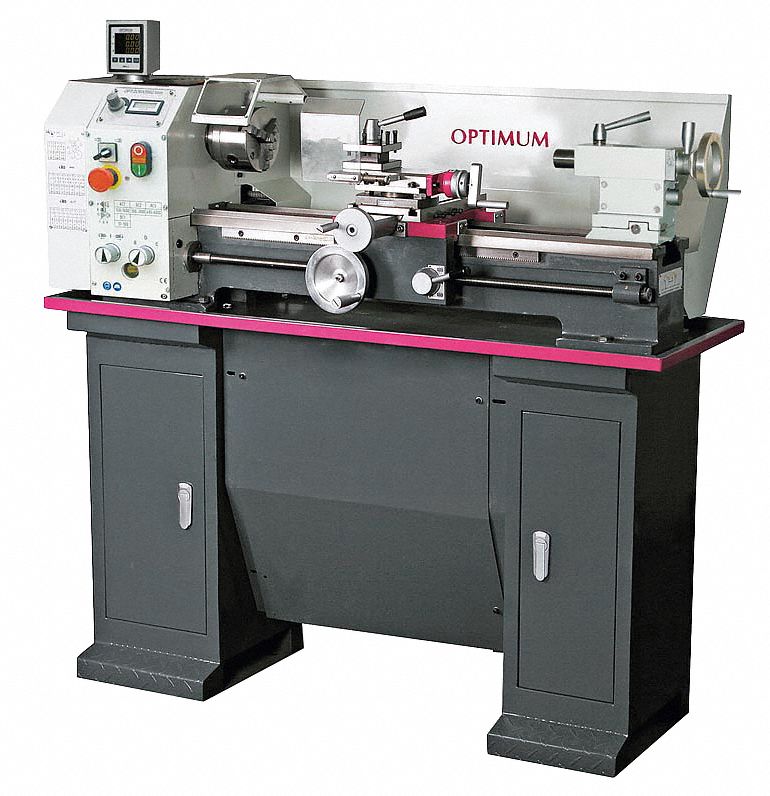

OPTIMUM Bench Lathe, 11x27, 1HP, VS, 1 Phase

Bench Lathe, 1.5 Motor HP, 1 Phase, 230 Voltage, 60 Hz, Spindle Taper 4MT, Number of Spindle Speeds 4, Tailstock Taper 2MT, Longitudinal Feed Rates 0.003-0.008, Overall Length 54 In., Overall Width 25 In., Overall Height 21 In., Varible Speed, All Steel Helical Gears, Built and Tested to DIN 8606 Lathe Standards, Includes 3 Jaw Chuck, Splash Guard, Chuck and Toolpost Safety Guard, 4 Way Tool Post, Splash Guard, 2MT Dead Center, Inch and Metric Gears for Threading, Steady Rest, Follwer Rest
  • Grainger Item #5RAJ8
    Price (ea.)$3,732.00
    BrandOPTIMUM
    Mfr. Model #D280x700
    UNSPSC #23171606
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)410.0
    Availability Item ships within 6 business days from supplier
    Catalog Page No.971
    Country of Origin
    (Country of Origin is subject to change.)
    China
  • Price shown may not reflect your price. Sign in or register.
ItemBench Lathe
Motor HP1.5
Phase1
Voltage230
Hz60
Swing Over Bed (In.)11"
Distance Between Centers (In.)27"
Swing Over Cross Slide (In.)5-1/2"
Swing In Gap (In.)11"
Spindle Taper4MT
Spindle Bore (In.)1"
Number of Spindle Speeds4
Spindle Speed (RPM)30-4000
Bed Width (In.)7"
Cross Travel (In.)6-5/16"
Compound Travel (In.)2-38"
Carriage Travel (In.)24"
Tailstock Taper2MT
Tailstock Travel (In.)3-5/16"
Thread Range (In.)8-56
Thread Range (mm)0.2-3.5
Longitudinal Feed Rates0.003-0.008
Overall Length54"
Overall Width25"
Overall Height21"
FeaturesVarible Speed, All Steel Helical Gears, Built and Tested to DIN 8606 Lathe Standards
Includes3 Jaw Chuck, Splash Guard, Chuck and Toolpost Safety Guard, 4 Way Tool Post, Splash Guard, 2MT Dead Center, Inch and Metric Gears for Threading, Steady Rest, Follwer Rest

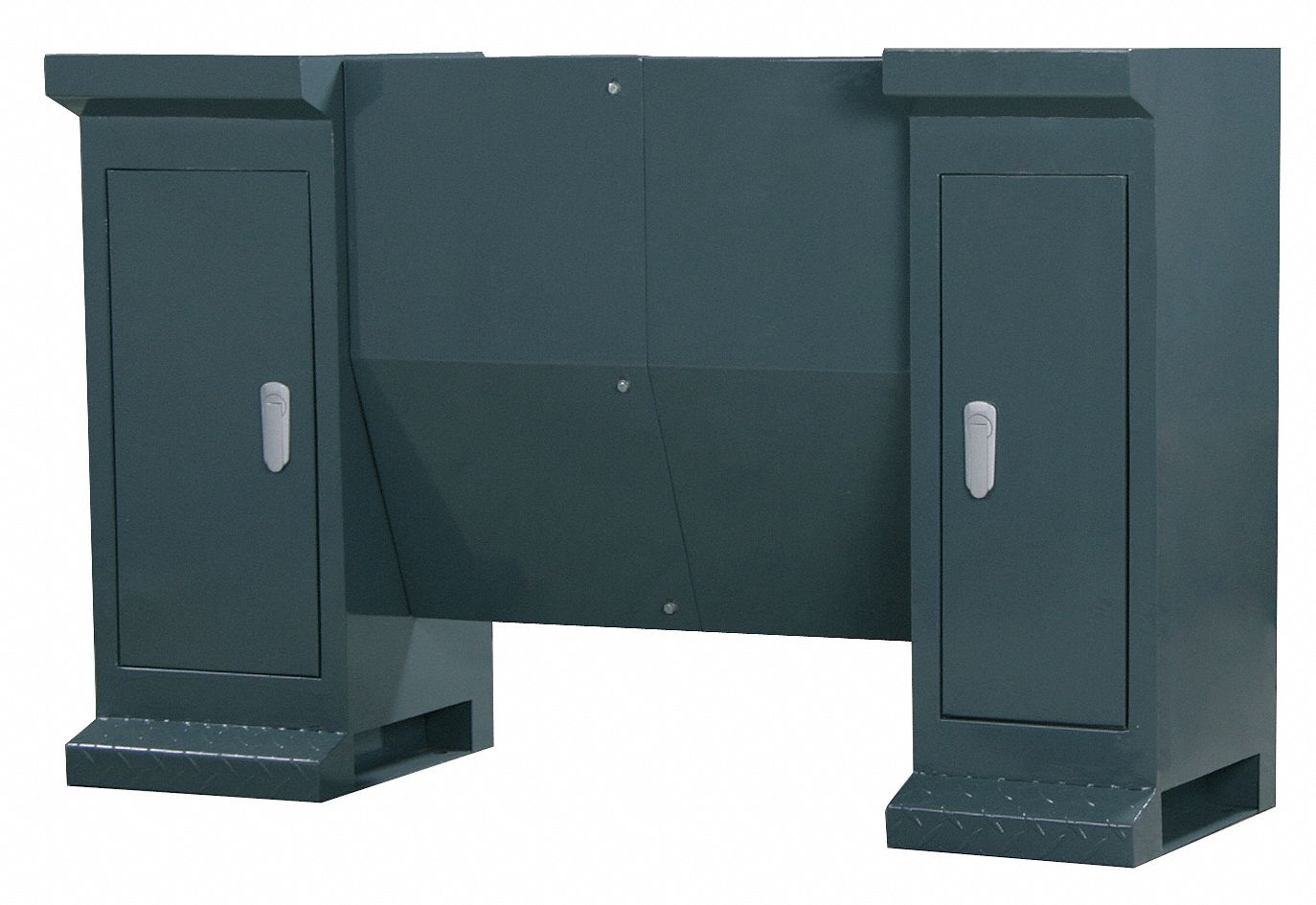

Optional Accessories

More Accessories

Brand:

OPTIMUM

Grainger Item #:

5RAJ9

Price (ea.):

$447.75
