Electrical
>
Switches
>
Snap Action Switches

OMRON Sub-Mini Swch, 10A, SPDT, Simultd Rolr Levr

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Sub-Miniature Snap Switch, SS-10 Series, Type of Actuator Simulated Roller Lever, Actuator Length 0.62 In., Contact Form SPDT, Current Rating 10A, Voltage Rating 125/250VAC, Terminal Type Solder, Operating Force 1.77 oz., Max. Pretravel 0.039 In., Release Force 0.21 oz., Differential Travel 0.611 In., Over Travel 0.039 In., Length 0.78 In., Height 0.40 In., Depth 0.25 In., Mounting Dimension 0.37 In. Centers, Operating Temp. Range -13 Degrees to 185 Degrees F, Housing Material Phenolic

Grainger Item #	2KRW3
Price (ea.)	$1.62
Brand	OMRON
Mfr. Model #	SS-10GL13
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.01
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

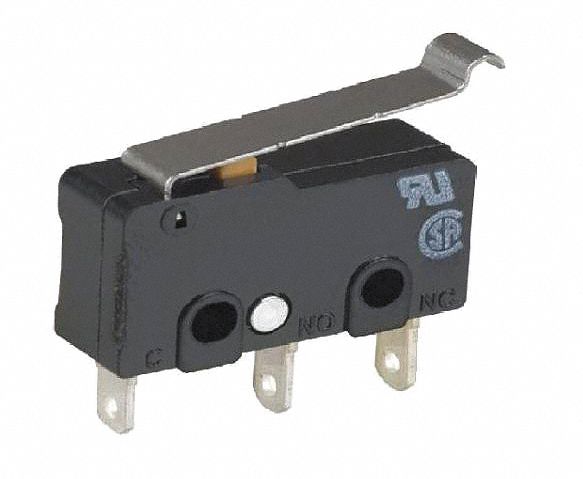

Sub-Mini Swch, 10A, SPDT, Simultd Rolr Levr

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Sub-Miniature Snap Switch
Series		SS-10
Type of Actuator		Simulated Roller Lever
Actuator Length		0.62"
Contact Form		SPDT
Current Rating		10A
Voltage Rating		125/250VAC
Terminal Type		Solder
Operating Force		1.77 oz.
Max. Pretravel		0.039"
Release Force		0.21 oz.
Differential Travel		0.611"
Over Travel		0.039"
Length		0.78"
Height		0.40"
Depth		0.25"
Mounting Dimension		0.37" Centers
Operating Temp. Range		-13 Degrees to 185 Degrees F
Housing Material		Phenolic
Standards		UL/ CSA/ SEMKO/ EN 61058-1
