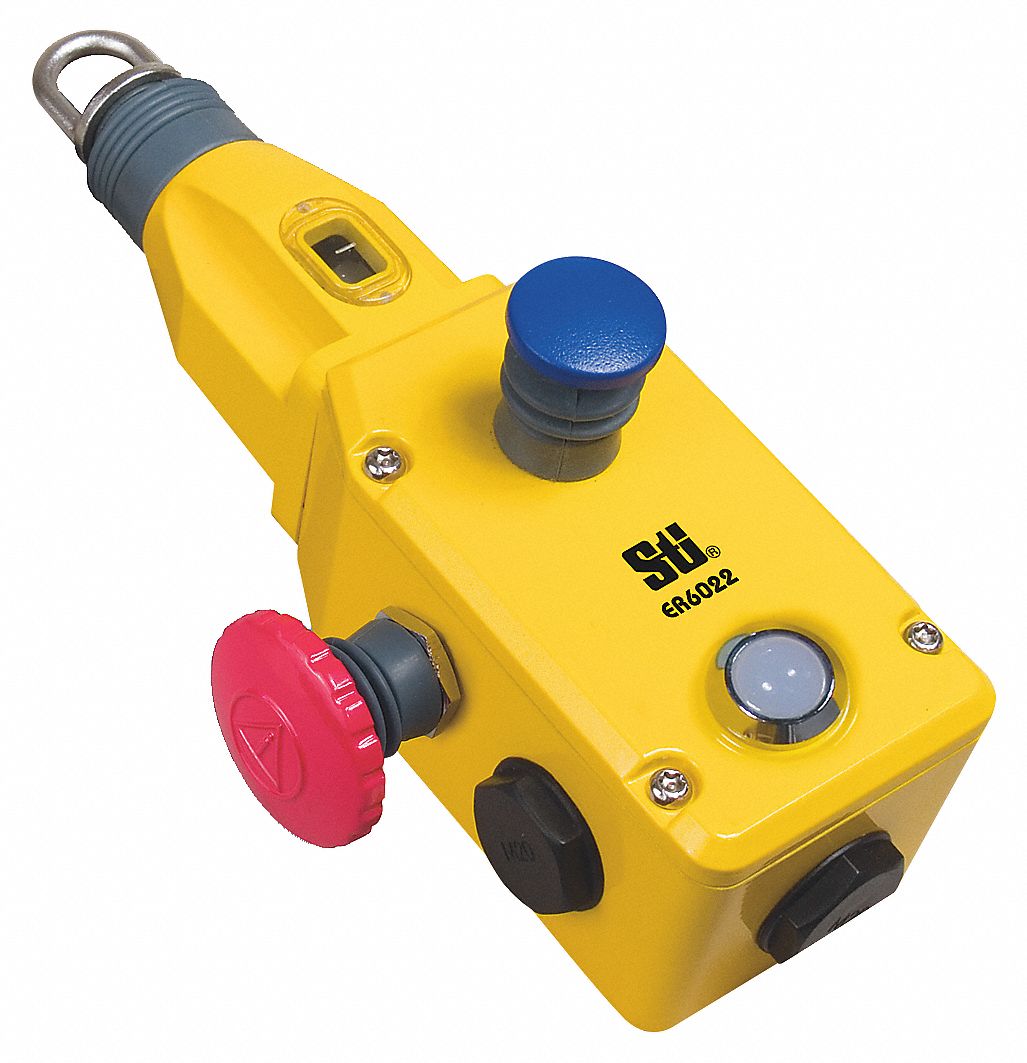

OMRON STI Emergency Stop, Rope Pull, 2NC/1NO, IP67

Emergency Stop, Rope Pull, Contact Type 2 NC/1NO, Mounting Style Multiposition, 4 x M5 Hardware, Indicator Tension, Reset Push Button, Length (In.) 8.74, Width (In.) 3.78, Depth (In.) 3.39, Max. Switching Current (Amps) 1 @ 500VAC, 2 @ 250VAC, 5 @ 100VAC, 0.5 @ 250VDC, 1 @ 125VDC, 2 @ 24VDC, Max. Switching Voltage 500VAC/250VDC, Min. Current 5mA @ 5VDC, Electrical Life 1000000, Max. Cable Span 246 Ft., Operating Force 28 Lbs., Case Material NEMA 6, Die Cast Alloy, Wiring Entry (3) 1/2 NPT In.
  • Grainger Item #10N118
    Price (ea.)$334.50
    BrandOMRON STI
    Mfr. Model #ER6022-021NE
    UNSPSC #39121505
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)1.97
    Availability Typically in Stock
    Catalog Page No.365
    Country of Origin
    (Country of Origin is subject to change.)
    United Kingdom
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemEmergency Stop
TypeRope Pull
Contact Type2 NC/1NO
Mounting StyleMultiposition, 4 x M5 Hardware
IndicatorTension
ResetPush Button
Length (In.)8.74
Width (In.)3.78
Depth (In.)3.39
Max. Switching Current (Amps)1 @ 500VAC, 2 @ 250VAC, 5 @ 100VAC, 0.5 @ 250VDC, 1 @ 125VDC, 2 @ 24VDC
Max. Switching Voltage500VAC/250VDC
Min. Current5mA @ 5VDC
Electrical Life1000000
Max. Cable Span246 Ft.
Operating Force28 Lbs.
Case MaterialNEMA 6, Die Cast Alloy
Wiring Entry(3) 1/2 NPT"
Weight22.2
Mechanical Life1000000
Environmental ProtectionIP67
StandardsCE, UL, C-UL

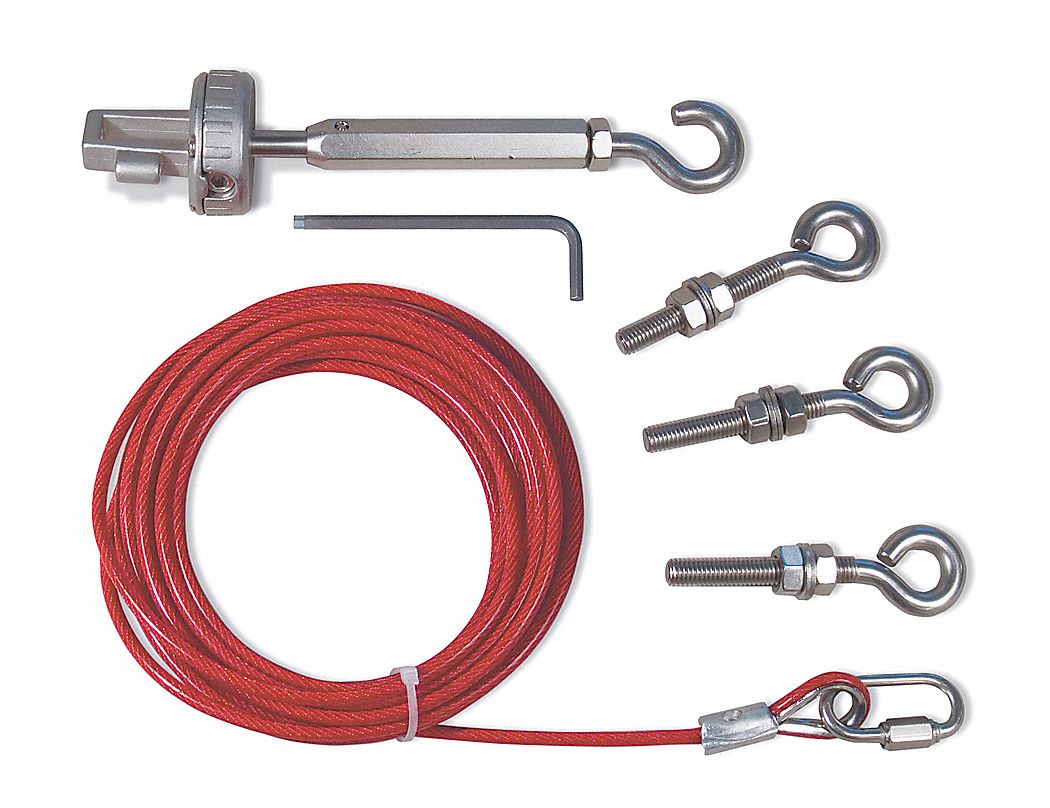

Optional Accessories

More Accessories

Brand:

OMRON STI

Grainger Item #:

10N099

Price (ea.):

$121.50
