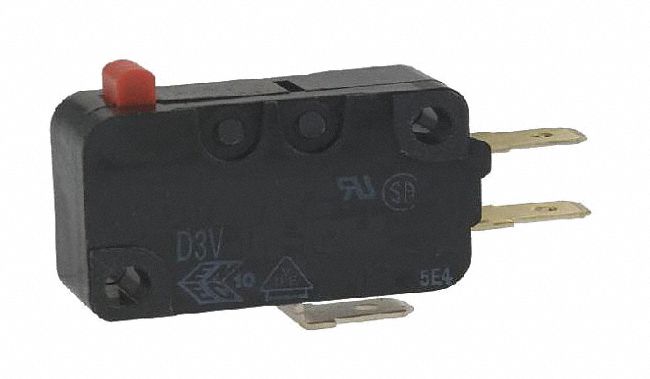

OMRON Mini Snap Swch, 21A, SPDT, Pin Plunger

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Miniature Snap Action SwitchType of Actuator Pin PlungerContact Form SPDT, Current Rating 21ATerminal Type Quick Connect, Operating Force 4.41 oz., Max. Pretravel 0.047 In., Release Force 0.71 oz., Differential Travel 0.012 In., Over Travel 0.039 In.Mounting Dimension 0.41 x 0.87 In. Centers, Operating Temp. Range -13 Degrees to 185 Degrees F, Housing Material Phenolic

Grainger Item #	2KRU5
Price (ea.)	$1.86
Brand	OMRON
Mfr. Model #	D3V-21G-1C4A-K
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.02
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Miniature Snap Action Switch
Type of Actuator		Pin Plunger
Contact Form		SPDT
Current Rating		21A
Terminal Type		Quick Connect
Operating Force		4.41 oz.
Max. Pretravel		0.047"
Release Force		0.71 oz.
Differential Travel		0.012"
Over Travel		0.039"
Mounting Dimension		0.41 x 0.87" Centers
Operating Temp. Range		-13 Degrees to 185 Degrees F
Housing Material		Phenolic
