OMRON Mini Snap Swch, 15A, SPST-NO, Pin Plunger

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Miniature Snap Action SwitchType of Actuator Pin PlungerContact Form SPST-NO, Current Rating 15ATerminal Type Quick Connect, Operating Force 7.06 oz., Max. Pretravel 0.047 In., Release Force 1.77 oz., Differential Travel 0.012 In., Over Travel 0.050 In.Mounting Dimension 0.41 x 0.87 In. Centers, Operating Temp. Range -13 Degrees to 176 Degrees F, Housing Material Phenolic

Grainger Item #	2KRF8
Price (ea.)	$1.51
Brand	OMRON
Mfr. Model #	V-15G-3C25-K
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.02
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

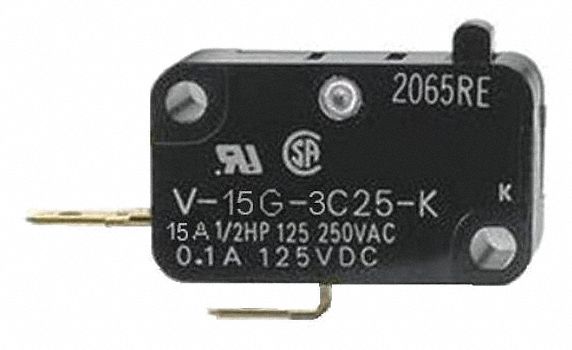

Mini Snap Swch, 15A, SPST-NO, Pin Plunger

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Miniature Snap Action Switch
Type of Actuator		Pin Plunger
Contact Form		SPST-NO
Current Rating		15A
Terminal Type		Quick Connect
Operating Force		7.06 oz.
Max. Pretravel		0.047"
Release Force		1.77 oz.
Differential Travel		0.012"
Over Travel		0.050"
Mounting Dimension		0.41 x 0.87" Centers
Operating Temp. Range		-13 Degrees to 176 Degrees F
Housing Material		Phenolic
