OMRON Mini Snap Swch, 21A, SPDT, Long Hinge Lever

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Miniature Snap Action Switch, D3V Series, Type of Actuator Long Hinge Lever, Actuator Length 2.02 In., Contact Form SPDT, Current Rating 21A, Voltage Rating 250VAC, Terminal Type Quick Connect, Operating Force 1.59 oz., Max. Pretravel 0.355 In., Release Force 0.11 oz., Differential Travel 0.079 In., Over Travel 0.079 In., Length 1.10 In., Height 0.63 In., Depth 0.41 In., Mounting Dimension 0.41 x 0.87 In. Centers, Operating Temp. Range -13 Degrees to 185 Degrees F, Housing Material Phenolic

Grainger Item #	2KRV1
Price (ea.)	$1.46
Brand	OMRON
Mfr. Model #	D3V-21G3-1C4A-K
UNSPSC #	39121505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.06
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

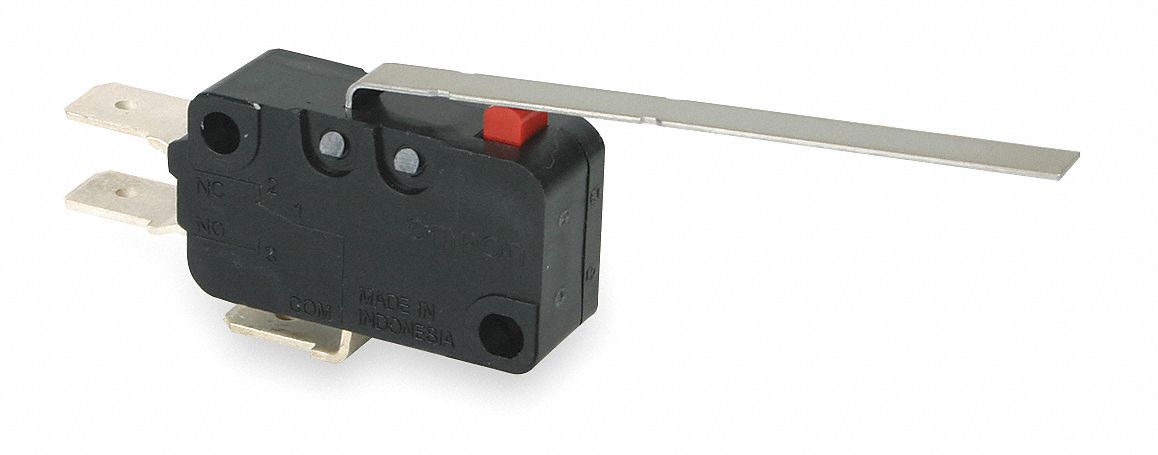

Mini Snap Swch, 21A, SPDT, Long Hinge Lever

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Miniature Snap Action Switch
Series		D3V
Type of Actuator		Long Hinge Lever
Actuator Length		2.02"
Contact Form		SPDT
Current Rating		21A
Voltage Rating		250VAC
Terminal Type		Quick Connect
Operating Force		1.59 oz.
Max. Pretravel		0.355"
Release Force		0.11 oz.
Differential Travel		0.079"
Over Travel		0.079"
Length		1.10"
Height		0.63"
Depth		0.41"
Mounting Dimension		0.41 x 0.87" Centers
Operating Temp. Range		-13 Degrees to 185 Degrees F
Housing Material		Phenolic
Standards		UL/ CSA/ EN 61058-1
