OMNI Diaphragm Metering Pump, 576 GPD, 150 PSI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Diaphragm Metering Pump, Motor Driven, Max. Flow 576 GPD, Max. Pressure 150 PSI, Max. Viscosity 1000 CPS, Voltage 115V/230V, Motor HP 1/2, Suction Lift 10 Ft., Reproducibility +/-2 %, Turn Down Ratio 10:1, Aluminum, Seals and O-Rings PTFE, Diaphragm Material PTFE, Head and Fitting Material SST, Height 6.60 In., Length 13.10 In., Width 6.70 In., Number of Feeds 1, Min. Flow Rate 57.6 GPD, Max. Flow 24.00 GPH, cc/Min. 1514.0, Max. Strokes per Minute 150, 60 Hz

Grainger Item #	6KYF7
Price (ea.)	$2,739.00
Brand	OMNI
Mfr. Model #	DC2C2AP
UNSPSC #	41105105
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	48.97
Availability	Typically in Stock
Catalog Page No.	4092
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

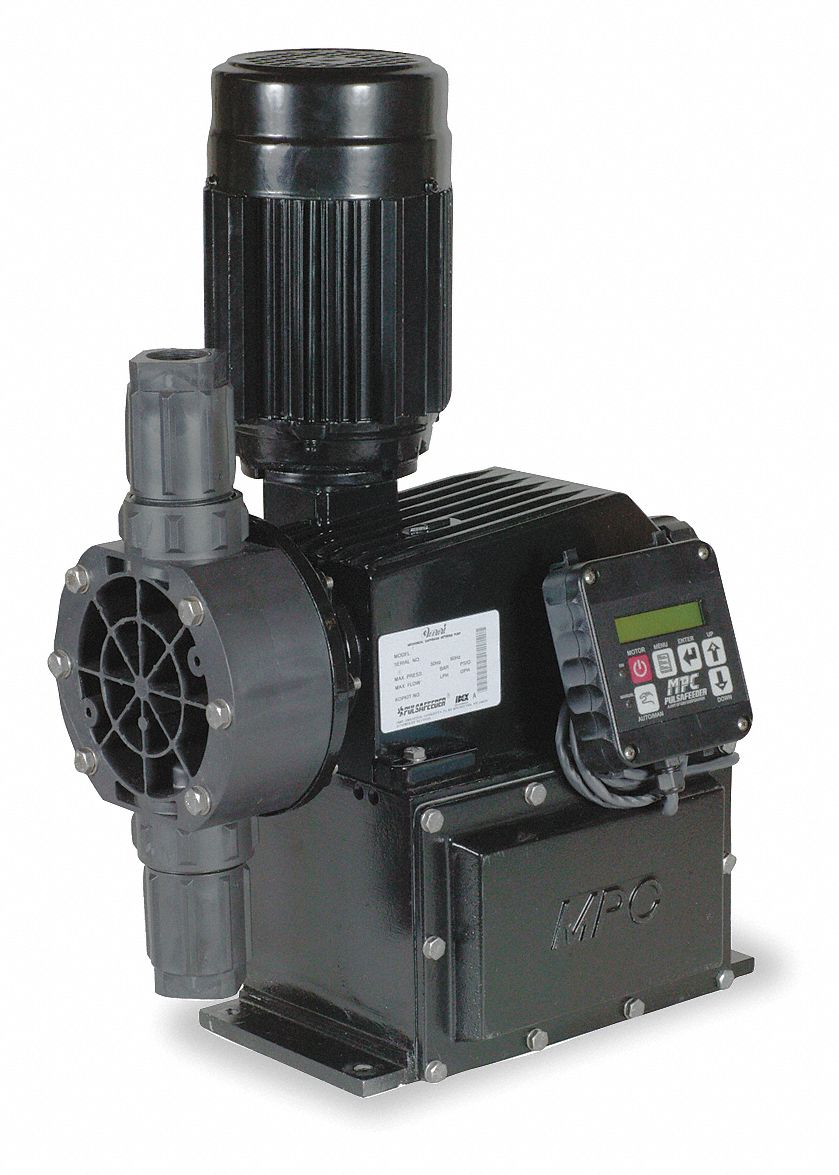

Diaphragm Metering Pump, 576 GPD, 150 PSI

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Diaphragm Metering Pump
Type		Motor Driven
Max. Flow (GPD)		576
Max. Pressure (PSI)		150
Max. Viscosity		1000 CPS
Voltage		115V/230V
Motor HP		1/2
Self-Priming		No
Suction Lift (Ft.)		10
Reproducibility (%)		+/-2
Turn Down Ratio		10:1
Motor RPM		1725
Body Material		Aluminum
Seals and O-Rings		PTFE
Ball Material		SST
Diaphragm Material		PTFE
Head and Fitting Material		SST
Height (In.)		6.60
Length (In.)		13.10
Width (In.)		6.70
Number of Feeds		1
Min. Flow Rate (GPD)		57.6
Max. Flow (GPH)		24.00
cc/Min.		1514.0
Max. Strokes per Minute		150
Hz		60
Compliance		CE
Standards		CE
