Pneumatics
>
Valves
>
Solenoid Air Control Valves

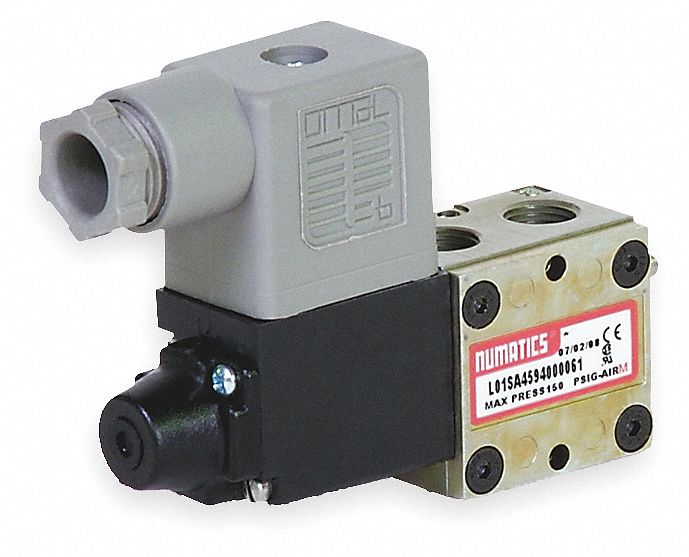

NUMATICS Solenoid Valve, 4 Way, 2 Pos, 1/8NPT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid Air Control Valve, 4 Way, 2 Position, Valve Type Body Ported, Actuator/Return Solenoid/Spring, NPT Port 1/8 In, Port Size 1/8 In, FNPT Connection, 24 VDC Coil, 9 CFM, Coefficient of Volume 0.2, Cv 0.2, Max Temp Range -10 to 115 F, Max Operating PSI 150, Current Rating 250 mA (In Rush), 250 mA (Holding) mA, Meets/Exceeds NEMA 4, Pressure Range 0 to 150 PSI, Vacuum 5 to 28 InHg, Length 3 1/8 In, Width 7/8 In, Height 2 5/16 In

Grainger Item #	3JCL3
Price (ea.)	$74.25
Brand	NUMATICS
Mfr. Model #	L01SA4594060T61
UNSPSC #	40141605
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.41
Availability	Typically in Stock
Catalog Page No.	3979
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid Air Control Valve
Type		4-Way, 2-Position
Valve Type		Body Ported
Actuator/Return		Solenoid/Spring
Port Size (In.)		1/8
CFM		9
Coefficient of Volume		0.2
Max. Temp. Range (F)		-10 to 115
Max. Operating PSI		150
Current Rating (mA)		250 mA (In Rush), 250 mA (Holding)
Design		In-Line
Meets/Exceeds		NEMA 4
Pressure Range		0 to 150 PSI
Vacuum		5 to 28"Hg
Length (In.)		3-1/8
Width (In.)		7/8
Height (In.)		2-5/16
